Mi-T-M | SKU: ADD-23110-120H

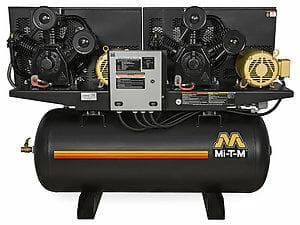

120-Gallon Two Stage Electric Duplex Air Compressor - ADD-23110-120H

Name: 120-Gallon Two Stage Electric Duplex Air Compressor - ADD-23110-120H
Brand: Mi-T-M
SKU: ADD-23110-120H
Price: 13691.92 USD
Availability: InStock

$13,691⁹² ~~$18,350⁰⁰~~

Shipping calculated at checkout.

Safe & Secure Payments.

The horizontal 120-gallon air compressors can be installed in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor: Industrial low RPM motor · Magnetic start for thermal overload protection

Frame: Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components' safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer · 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)

Other Models Available:
ADD-20310-120H200V, 61.6A, 3 Phase
ADD-23310-120H230V, 53.6A, 3 Phase
ADD-46310-120H460V, 26.8A, 3 Phase

Specifications

CFM @ 175

68.4
Horsepower/Motor

10.0 HP, 230V, 1Ø, 78.0A
Pump RPM

990
Compressor

Two Stage, Cast Iron
Tank Size

120 gallon
Bolt Down (LxW)

34.5 x 23.5 in.

Weights & Dimensions

Net Weight

1121.00 lbs.
Shipping Weight

1200.00 lbs.
Length

74.00 in.
Width

26.50 in.
Height

58.00 in.

Options

IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
IX-0006 Electric Tank Drain

Automatically drains liquid from compressor tank
IX-0032 Pneumatic Tank Drain

Automatically drains liquid from compressor tank
IX-0034 After Cooler

Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
IX-0036 Low Oil Monitor

Low oil sensor does not allow unit to start when oil levels fall below an adequate level
