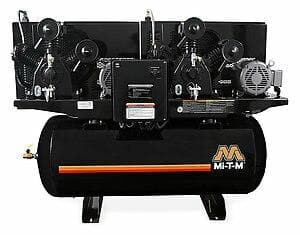

120 Gallon Two Stage Electric Duplex Air Compressor - ADD-23110-120HM

by Mi-T-M
SKU ADD-23110-120HM
Save $2,620.42 Save $2,620.42
Original price $18,343.00
Original price $18,343.00 - Original price $18,343.00
Original price $18,343.00
Current price $15,722.58
$15,722.58 - $15,722.58
Current price $15,722.58
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Loaded with standard features, the M Series air compressors are available in many motor configurations

Offered with vertical or horizontal tank options, this series comes complete to meet the most demanding industrial applications.

Compressor Pump:Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve · 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump)

Other Models Available:
ADD-20310-120HM200V, 61.6A, 3 Phase
ADD-23310-120HM230V, 53.6A, 3 Phase
ADD-46310-120HM460V, 26.8A, 3 Phase

Specifications

  • CFM @ 175

    68.4

  • Horsepower/Motor

    10.0 HP, 230V, 1Ø, 78.0A

  • Pump RPM

    990

  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    120 gallon

  • Bolt Down (LxW)

    34.5 x 23.5 in.

Weights & Dimensions

  • Net Weight

    1221.00 lbs.

  • Shipping Weight

    1300.00 lbs.

  • Length

    74.00 in.

  • Width

    26.50 in.

  • Height

    58.00 in.
