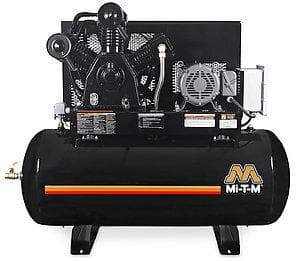

120 Gallon Two Stage Electric Duplex Air Compressor - AES-20315-120HM

$9,968.62$13,360.00

SKU: AES-20315-120HM

Quantity

120 Gallon Two Stage Electric Duplex Air Compressor - AES-20315-120HM designed to power hand power tools

Loaded with standard features, the M Series air compressors are available in many motor configurations. Offered with vertical or horizontal tank options, this series comes complete to meet the most demanding industrial applications.

Compressor Pump:Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Other Models Available:
AES-23315-120HM230V, 38.0A, 3 Phase
AES-46315-120HM460V, 19.0A, 3 Phase

Specifications

  • CFM @ 175

    46.5

  • Horsepower/Motor

    15.0 HP, 200V, 3Ø, 44.0A

  • Pump RPM

    990

  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    120 gallon

  • Bolt Down (LxW)

    34.5 x 23.5 in.

Weights & Dimensions

  • Net Weight

    856.00 lbs.

  • Shipping Weight

    935.00 lbs.

  • Length

    74.00 in.

  • Width

    26.50 in.

  • Height

    58.00 in.
