Stationary Electric Air Compressors

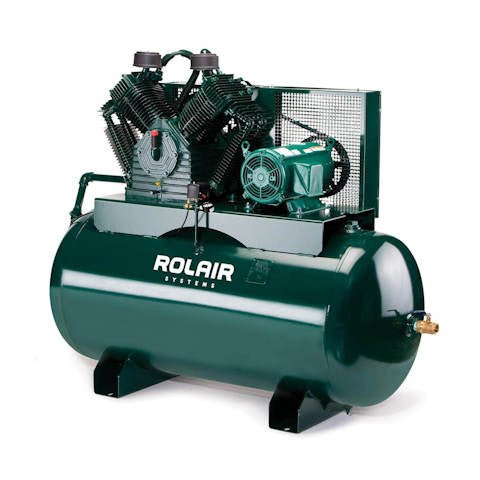

15 to 20 HP, two-stage electric stationary air compressors on a variety of tank configurations. Model H15312K60 shown.
Optional Equipment: Magnetic Starter, Automatic Tank Drain, Low Oil Shut Down, Vibration Pads, Dual Controls, Head Unloader, Refrigerant Air Dryer.

ABOUT THE PUMP


  • Two-Stage
  • Cast-Iron Cylinders
  • Aluminum Head and Crankcase for Faster Heat Dissipation
  • Ball Bearings
  • Splash Lubricated
  • Bearing Inserts on Connecting Rods
  • Swedish Lamellar Reed Valves
  • Oil Sight Gauge
  • Low RPMs to Ensure Long Life and Trouble-Free Performance

ABOUT THE MOTOR


  • 1800 RPM
  • 60 Hz
  • Open Drip-Proof Motor
  • Three Phase Models Available in 208, 230, and 460 Volt

STANDARD EQUIPMENT


  • Pressure Switch - Start/Stop Operation,145-175 PSI Settings, On/Off Switch
  • Automatic Unloading Device for Loadless Starts
  • Heavy-Duty Brass Shut-Off Valve
  • Pressure Gauge, 0-300 PSI in 5 lb. Graduations
  • Safety Relief Valve - ASME Approved
  • Multiple V-Belt Drive
  • Intake Filter/Silencer with Replaceable Element
  • Totally Enclosed Steel Belt Guard

SPECIFICATIONS


HORSE POWER 15 - 20 HP
CFM DISPLACED 58.4 - 75.8 CFM @ 175 PSI
CFM DELIVERED 46.2 - 58.4 CFM @ 175 PSI
LUBRICATION TYPE Splash Lubrication
REED VALVE SYSTEM Yes (Standard)
NUMBER OF CYLINDERS 4
COUNTRY OF ORIGIN Compressor Origin.pdf

ADDITIONAL MODELS


MODEL # HP PHASE TANK SIZE MOTOR RPM CFM DISPLACED CFM DELIVERED LENGTH WIDTH HEIGHT APPROX. SHIPPING WEIGHT
H15312K60 15 Three 120 Gallons 1740 58.4 @ 175 PSI 46.2 @ 175 PSI 72" 30" 54" 984 lb.
H15320K60 15 Three 200 Gallons 1740 58.4 @ 175 PSI 46.2 @ 175 PSI 76" 36" 60" 1,284 lb.
H15312K100 15 Three 120 Gallons 1740 60.7 @ 175 PSI 47.3 @ 175 PSI 72" 30" 58" 1,095 lb.
H15320K100 15 three 200 Gallons 1740 60.7 @ 175 PSI 47.3 @ 175 PSI 76" 36" 64" 1,395 lb.
H20312K100 20 Three 120 Gallons 1740 75.8 @ 175 PSI 58.4 @ 175 PSI 72" 30" 58" 1,150 lb.
H20320K100 20 Three 200 Gallons 1740 75.8 @ 175 PSI 58.4 @ 175 PSI 76" 36" 64" 1,450 lb.
