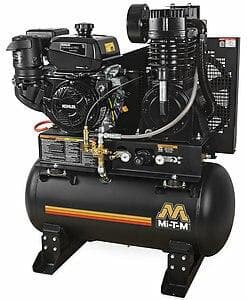

This 30-gallon air compressor is designed to provide high capacity air flow required for most commercial, industrial and automotive industries

Mount one in a service truck and take it to the most demanding jobsite.

Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine:Electric start - battery and cables not included

Frame:Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · Removable base plate offers flexible installation

Components:Regulator and two gauges for tank and outlet pressure · ASME safety valves · 16 1/2-inch fly wheel · Tank drain valve

*Equipped with 150-PSI maximum rated regulator

Specifications

  • CFM @ 175 PSI*

    29.0

  • Displacement/ Engine

    429cc Kohler CH440 OHV

  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    30 gallon

  • Engine Idle Control

    Cable Throttle

Weights & Dimensions

  • Net Weight

    416.00 lbs.

  • Shipping Weight

    480.00 lbs.

  • Length

    38.00 in.

  • Width

    23.00 in.

  • Height

    46.00 in.

Options

  • AX-0077 Battery Box and Tray

    Attaches to engine side of unit

  • IX-0001 Vibration Isolator Pads

    Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
