Rolair | SKU: 5520K17A

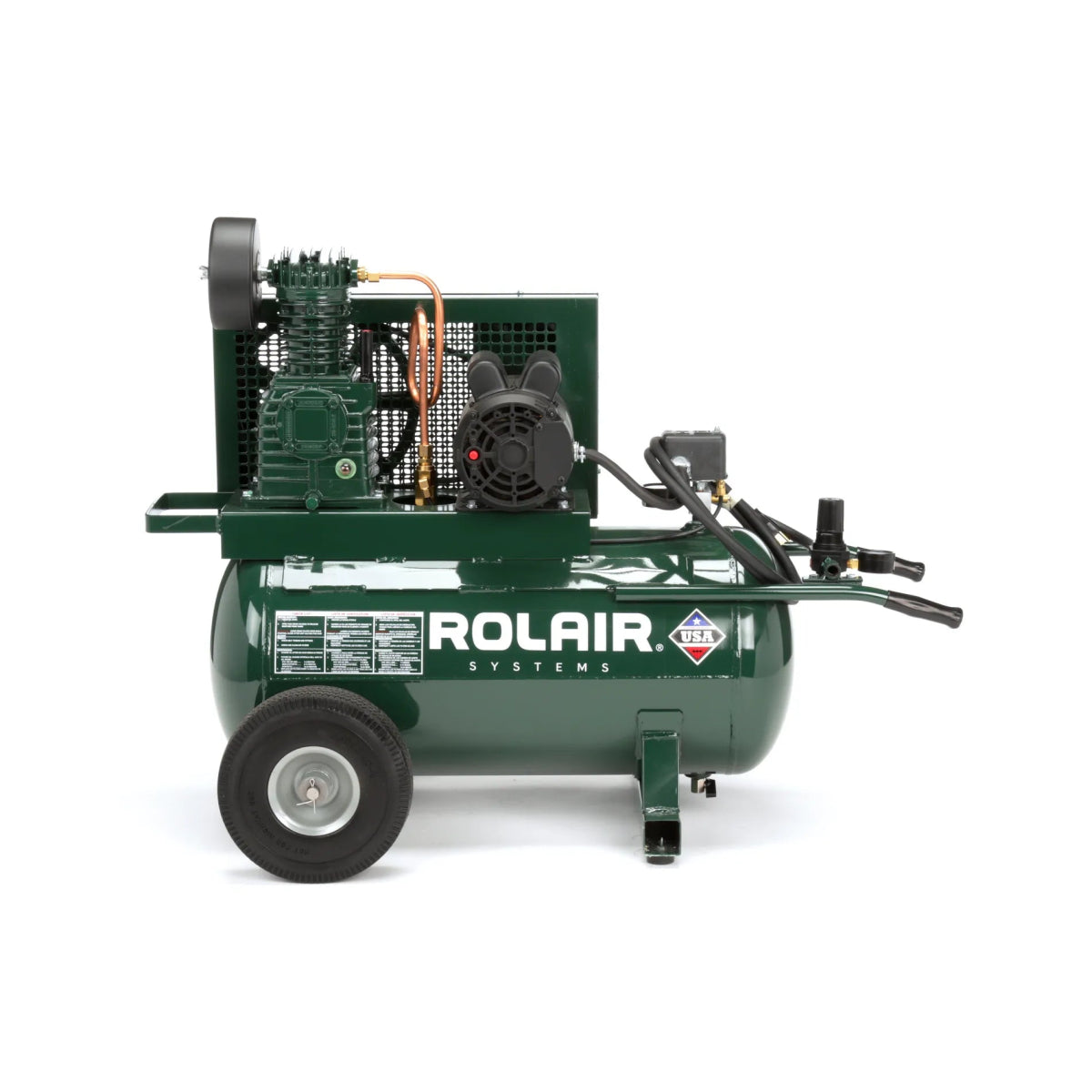

5520K17A Wheeled Electric Air Compressors

Name: 5520K17A Wheeled Electric Air Compressors
Brand: Rolair
SKU: 5520K17A
Price: 1365.00 USD
Availability: InStock

$1,365⁰⁰

Shipping calculated at checkout.

Safe & Secure Payments.

Wheeled Electric Air Compressors

Model 5520K17A is the step up from our classic 1.5 HP twin-tank wheelbarrow design. Featuring a single 20 gallon tank assembly, the 5520K17A sustains 7.3 CFM @ 90 PSI longer than the traditional 9 gallon twin tank design. The low-RPM pump and motor combine for quiet operation and minimal amp draw.
Optional Equipment: Filter-Regulator-Lubricator Sets, Dual Voltage Switch, Dual Control Operation.

ABOUT THE PUMP

Heavy-Duty
Single Stage
Cast-Iron Twin Cylinders
Ball Bearings
Splash Lubricated
Hardened Steel Valve Plates with Swedish Lamellar Reed Valves
Aluminum Alloy Connecting Rods with Automotive-Style Inserts
Multi-Finned 11" Flywheel, Oil Sight Gauge

ABOUT THE MOTOR

1.5 HP
1755 RPM
Open Drip Proof
115/230 Volt - 60 Hz
Ball Bearings
Overload Protection with Manual Reset

STANDARD EQUIPMENT

Pressure Gauge 0-200 in 5 lb. Graduations
Square D Pressure Switch with Unloader
Accessory Support Clip
Intake Filter with Silencer and Replaceable Element
Totally Enclosed Steel Belt Guard
Safety Relief Valve

SPECIFICATIONS

HORSE POWER	1.5 HP
CFM DISPLACED	10.1 CFM
CFM DELIVERED	7.3 CFM @ 90 PSI
PUMP/MOTOR RPM	1755 RPM
OVERLOAD PROTECTION	Yes (Manual Reset Standard)
LUBRICATION TYPE	Splash Lubrication
PUMP OIL CAPACITY	34 oz.
REED VALVE SYSTEM	Yes (Standard)
NUMBER OF CYLINDERS	2
TANK CAPACITY	20 Gallons
L X W X H	42"x22"x34"
DECIBEL RATING	Unavailable
COUNTRY OF ORIGIN	Compressor Origin.pdf
SHIPPING WEIGHT	205 lb.
SHIPPING DIMENSIONS (L X W X H)	47" x 23" x 39"
