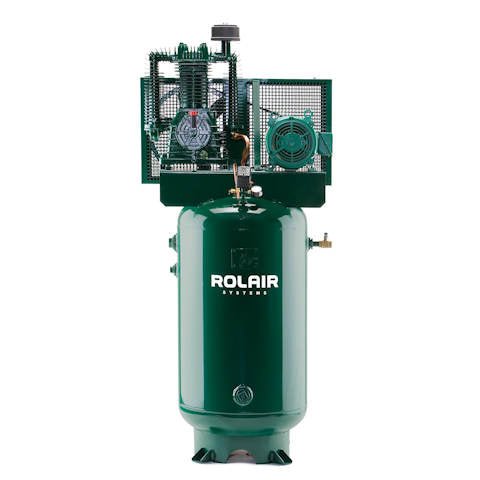

7.5hp Two-Stage Industrial Air Compressor
SKU: H75160K30
Stationary Electric Air Compressors
ABOUT THE PUMP
- Two-Stage
- Cast-Iron Cylinders
- Aluminum Head and Crankcase for Faster Heat Dissipation
- Ball Bearings
- Splash Lubricated
- Bearing Inserts on Connecting Rods
- Swedish Lamellar Reed Valves
- Oil Sight Gauge
- Low RPMs to Ensure Long Life and Trouble-Free Performance
ABOUT THE MOTOR
- 1740 RPM
- 60 Hz
- Open Drip-Proof Motor
- Single Phase Models Available in 208 and 230 Volt
- Three Phase Models Available in 208, 230, and 460 Volt
STANDARD EQUIPMENT
- Pressure Switch - Start/Stop Operation,145-175 PSI Settings, On/Off Switch
- Automatic Unloading Device for Loadless Starts
- Heavy-Duty Brass Shut-Off Valve
- Pressure Gauge, 0-300 PSI in 5 lb. Graduations
- Safety Relief Valve - ASME Approved
- Multiple V-Belt Drive
- Intake Filter/Silencer with Replaceable Element
- Totally Enclosed Steel Belt Guard
SPECIFICATIONS
| HORSE POWER | 7.5 HP |
| CFM DISPLACED | 30.4 - 32.3 CFM @ 175 PSI |
| CFM DELIVERED | 23.7 - 24.8 CFM @ 175 PSI |
| COUNTRY OF ORIGIN | Compressor Origin.pdf |
ADDITIONAL MODELS
| MODEL # | HP | PHASE | TANK SIZE | MOTOR RPM | CFM DISPLACED | CFM DELIVERED | LENGTH | WIDTH | HEIGHT | APPROX. SHIPPING WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| H75160K30 | 7.5 | Single | 60 Gallons, Horizontal | 1740 | 32.3 @ 175 PSI | 23.5 @ 175 PSI | 52" | 20" | 49" | 512 lb. |
| V75180K30 | 7.5 | Single | 80 Gallons, Vertical | 1740 | 32.3 @ 175 PSI | 23.5 @ 175 PSI | 30" | 24" | 77" | 562 lb. |
| H75112K30 | 7.5 | Single | 120 Gallons, Horizontal | 1740 | 32.3 @ 175 PSI | 23.5 @ 175 PSI | 72" | 30" | 53" | 682 lb. |
| V75112K30 | 7.5 | Single | 120 Gallons, Vertical | 1740 | 32.3 @ 175 PSI | 23.5 @ 175 PSI | 40" | 30" | 74" | 697 lb. |
| H75360K30 | 7.5 | Three | 60 Gallons, Horizontal | 1740 | 32.3 @ 175 PSI | 23.5 @ 175 PSI | 52" | 20" | 49" | 507 lb. |
| V75380K30 | 7.5 | Three | 80 Gallons, Vertical | 1740 | 32.3 @ 175 PSI | 23.5 @ 175 PSI | 30" | 24" | 77" | 557 lb. |
| H75312K30 | 7.5 | Three | 120 Gallons, Horizontal | 1740 | 32.3 @ 175 PSI | 23.5 @ 175 PSI | 72" | 30" | 53" | 677 lb. |
| V75312K30 | 7.5 | Three | 120 Gallons, Vertical | 1740 | 32.3 @ 175 PSI | 23.5 @ 175 PSI | 40" | 30" | 74" | 692 lb. |
| H75160K50 | 7.5 | Single | 60 Gallons, Horizontal | 1740 | 30.4 @ 175 PSI | 23.7 @ 175 PSI | 26" | 52" | 52" | 580 lb. |
| V75180K50 | 7.5 | Single | 80 Gallons, Vertical | 1740 | 30.4 @ 175 PSI | 23.7 @ 175 PSI | 26" | 30" | 80" | 630 lb. |
| H75112K50 | 7.5 | Single | 120 Gallons, Horizontal | 1740 | 30.4 @ 175 PSI | 23.7 @ 175 PSI | 30" | 72" | 56" | 750 lb. |
| V75112K50 | 7.5 | Single | 120 Gallons, Vertical | 1740 | 30.4 @ 175 PSI | 23.7 @ 175 PSI | 32" | 40" | 77" | 765 lb. |
| H75360K50 | 7.5 | Three | 60 Gallons, Horizontal | 1740 | 30.4 @ 175 PSI | 23.7 @ 175 PSI | 26" | 52" | 52" | 575 lb. |
| V75380K50 | 7.5 | Three | 80 Gallons, Vertical | 1740 | 30.4 @ 175 PSI | 23.7 @ 175 PSI | 30" | 26" | 80" | 625 lb. |
| H75312K50 | 7.5 | Three | 120 Gallons, Horizontal | 1740 | 30.4 @ 175 PSI | 23.7 @ 175 PSI | 72" | 30" | 56" | 750 lb. |
| V75312K50 | 7.5 | Three | 120 Gallons, Vertical | 1740 | 30.4 @ 175 PSI | 23.7 @ 175 PSI | 40" | 32" | 77" | 760 lb. |
