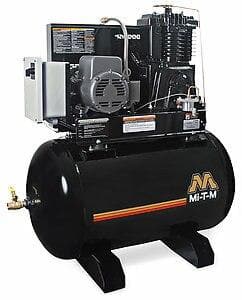

Loaded with standard features, the M Series air compressors are available in many motor configurations

Offered with vertical or horizontal tank options, this series comes complete to meet the most demanding industrial applications

Compressor Pump:Splash lubricated · Stainless steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Other Models Available:
ACS-20305-80HM200V, 16.1A, 3 Phase
ACS-23305-80HM230V, 13.8A, 3 Phase
ACS-46305-80HM460V, 6.9A, 3 Phase

Specifications

  • CFM @ 175

    18.0

  • Horsepower/Motor

    5.0 HP, 230V, 1Ø, 23.0A

  • Pump RPM

    860

  • Compressor

    Two Stage, Cast Iron

  • Tank Size

    80 gallon

  • Bolt Down (LxW)

    20.75 x 23.5 in.

Weights & Dimensions

  • Net Weight

    544.00 lbs.

  • Shipping Weight

    615.00 lbs.

  • Length

    52.00 in.

  • Width

    26.50 in.

  • Height

    53.00 in.
