Mi-T-M | SKU: ACS-23105-80V

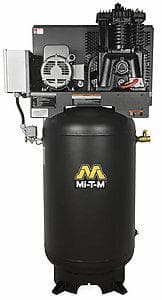

80-Gallon Two Stage Electric Simplex - ACS-23105-80V

Name: 80-Gallon Two Stage Electric Simplex - ACS-23105-80V
Brand: Mi-T-M
SKU: ACS-23105-80V
Price: 4536.62 USD
Availability: InStock

$4,536⁶² ~~$6,080⁰⁰~~

Shipping calculated at checkout.

Safe & Secure Payments.

ACS-23105-80V

ACS Series - 5.0 HP Simplex Vertical

The horizontal 80-gallon air compressors can be installed in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production.

Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor:Industrial low RPM motor · Magnetic start for thermal overload protection

Frame:Powder coated ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Totally enclosed powder coated belt guard

Components:ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Tank shut-off valve · Intake filter/silencer

Other Models Available:
ACS-20305-80V200V, 16.1A, 3 Phase
ACS-23305-80V230V, 13.8A, 3 Phase
ACS-46305-80V460V, 6.9A, 3 Phase

Specifications

CFM @ 175

18.0
Horsepower/Motor

5.0 HP, 230V, 1Ø, 23.0A
Pump RPM

860
Compressor

Two Stage, Cast Iron
Tank Size

80 gallon
Bolt Down (LxW)

15.63 x 15.63 in.

Weights & Dimensions

Net Weight

514.00 lbs.
Shipping Weight

585.00 lbs.
Length

33.00 in.
Width

25.00 in.
Height

73.00 in.

Options

IX-0001 Vibration Isolator Pads

Isolators protect the unit from vibration during use; recommended for models that are mounted in service truck applications
IX-0002 After Cooler

Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
IX-0006 Electric Tank Drain

Automatically drains liquid from compressor tank
IX-0008 Low Oil Monitor

Low-oil sensor does not allow unit to start when oil levels fall below an adequate level
IX-0051 Pneumatic Tank Drain

Automatically drains liquid from compressor tank
IX-0058 Pneumatic Tank Drain

Automatically drains liquid from compressor tank; you must also have IX-0002 after cooler option
