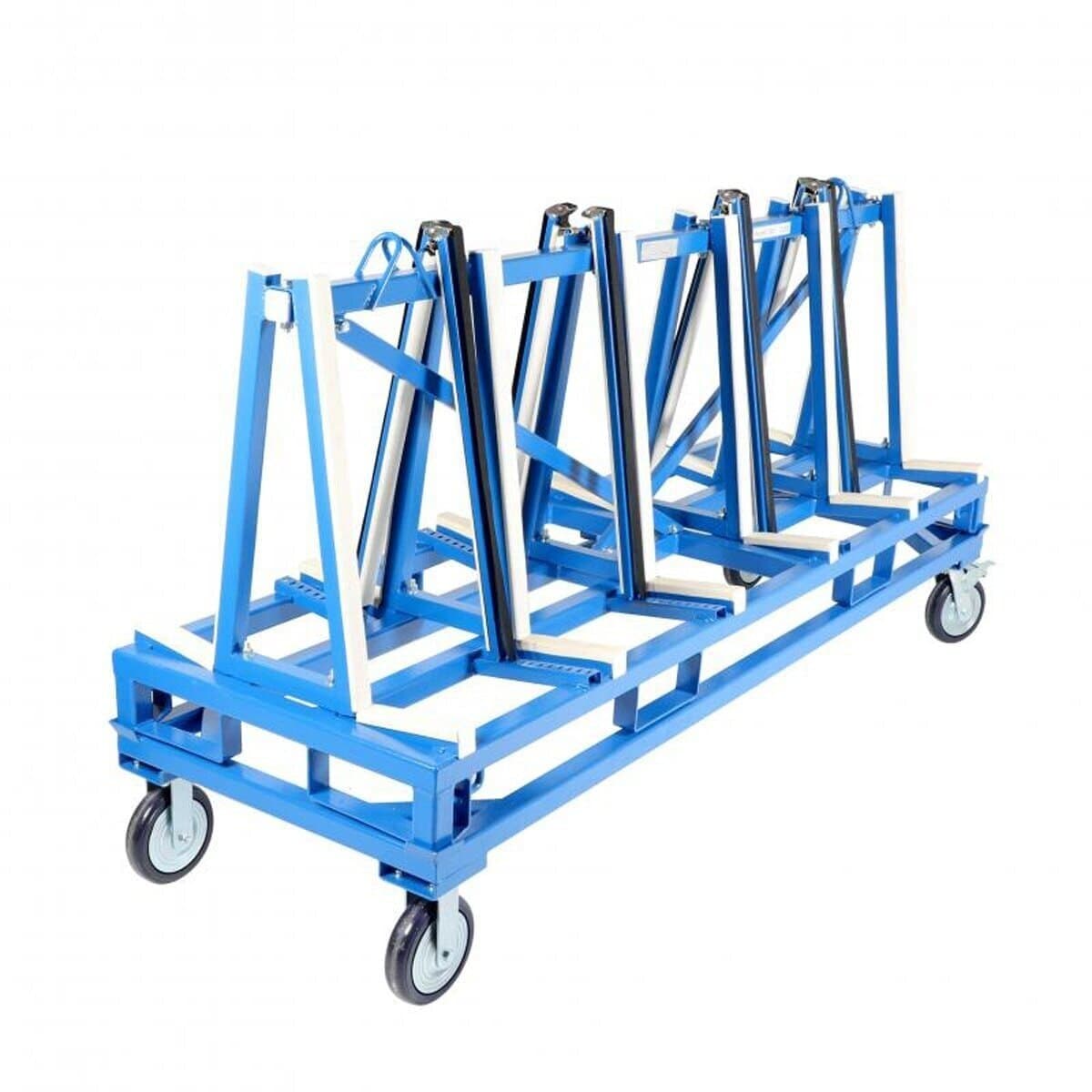

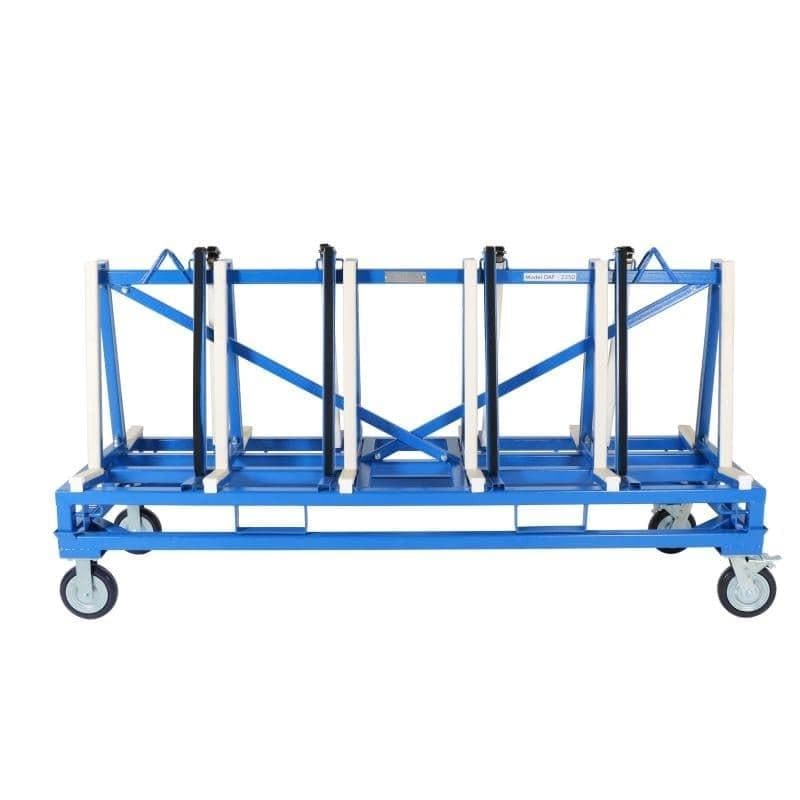

A Frames For Granite Transfer ideal for transporting material at the shop or on the building site
THIS ITEM IS SPECIAL ORDER - CALL FOR PRICING
Ideal for transporting and storing material within the factory or transporting material to building sites. Rubber is provided on frame surfaces for maximum protection. Heavy-duty wheels allow easy manoeuvering of your fully loaded cart in the workshop and on the construction site. Fits inside a standard pick-up truck. Frames can be safely placed on your truck with a forklift or crane.
Features
- Sturdy structure, designed to eliminate any risk of the slab tipping over
- Slabs are placed on special rubber profiles and secured with 8 adjustable locking bars
- Eight locking bars per frame mounted in slotted holes on the bottom
- The frame features 2 hooking points to be picked up by an overhead crane
- Built-in brackets on all underneath sides for forklift transport
- Powder-coat paint finish
- Option: Frames can be hot galvanized finished upon request.

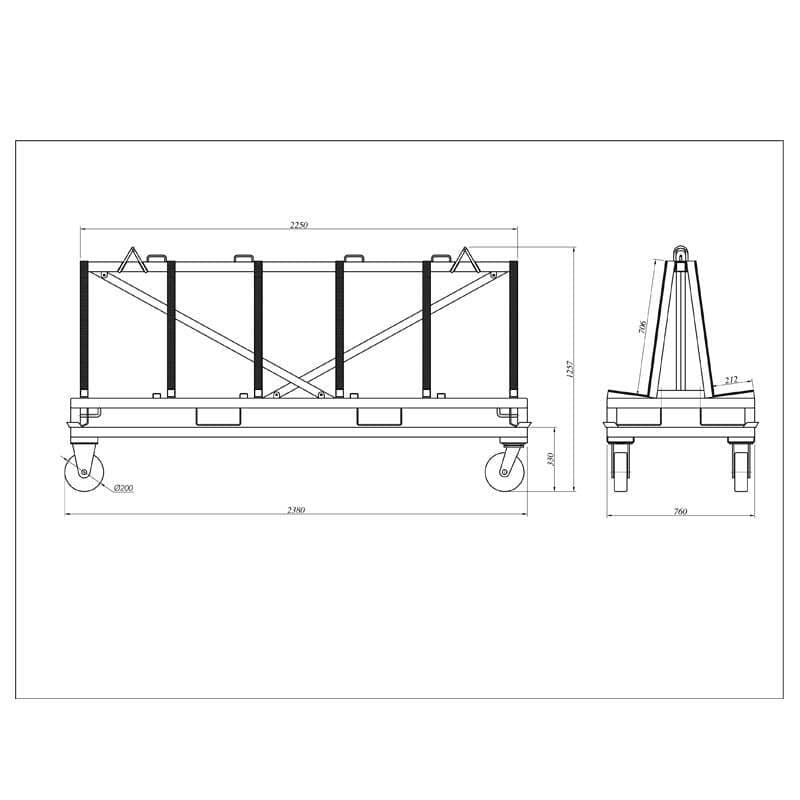

Specifications
|
Metric
(mm-kg)
|
Imperial
(inch-lbs)
|
|
| Width of each side | 212 | 8.3 |
| Working load limit | 1500 | 3307 |
| Net weight | 170.5 | 376 |
| Gross weight | 171 | 377 |
| Packaging dimension | 2390x800x280 | 94x31.5x11 |
