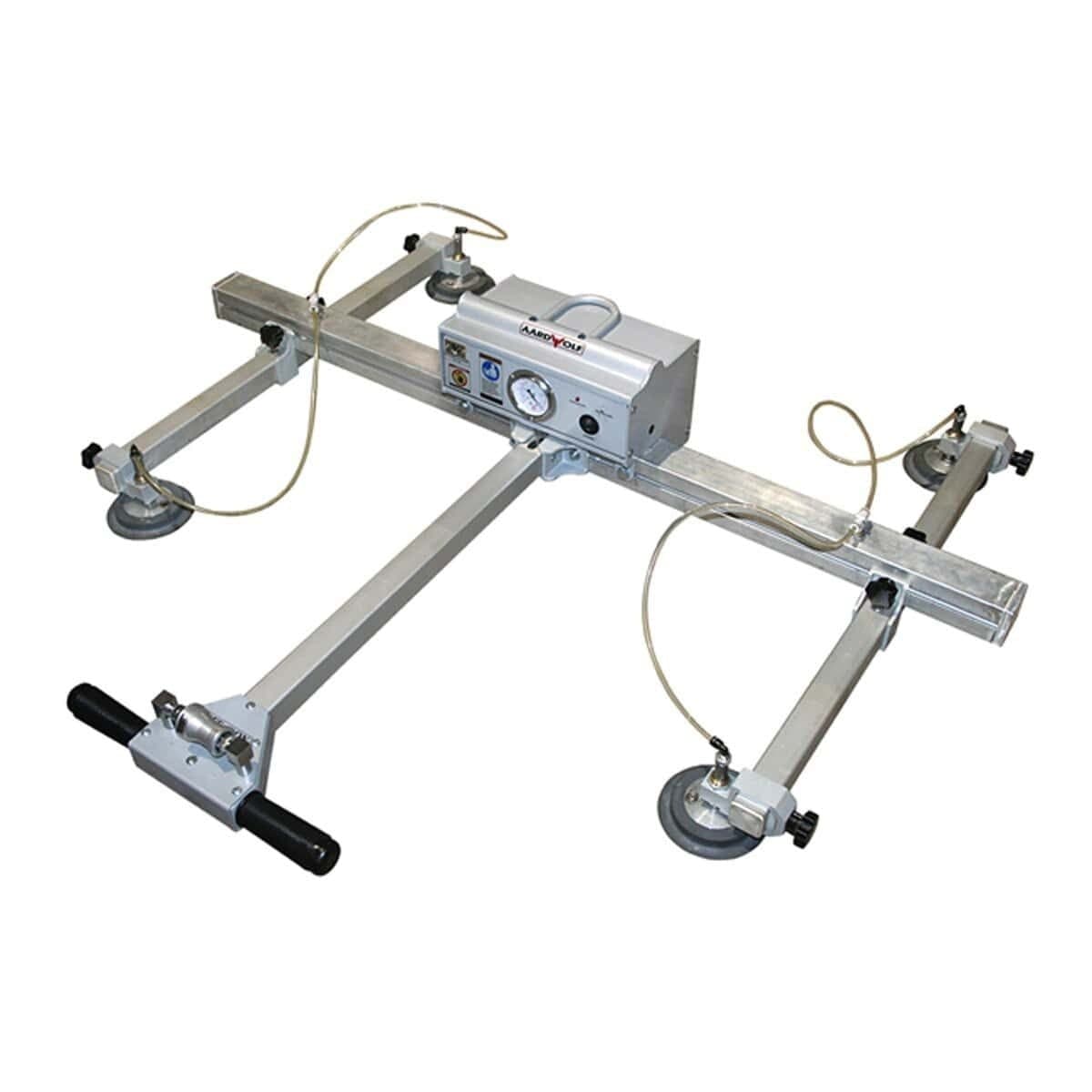

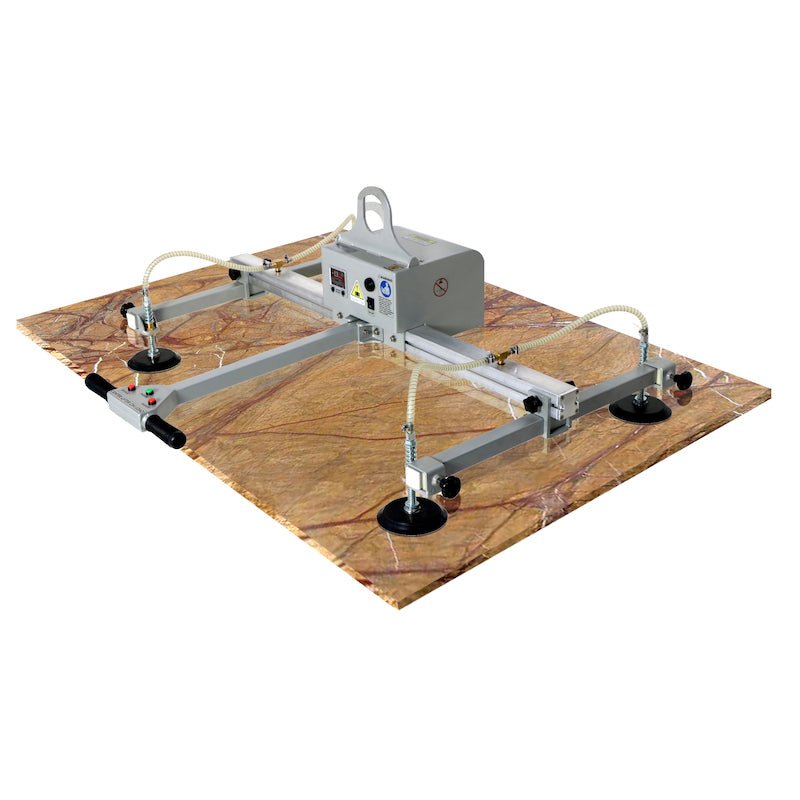

Aardwolf Vacuum Lifter 160kg is a four pad vacuum lifter for horizontal lifting of glass, laser cutters, metal sheets, and panels

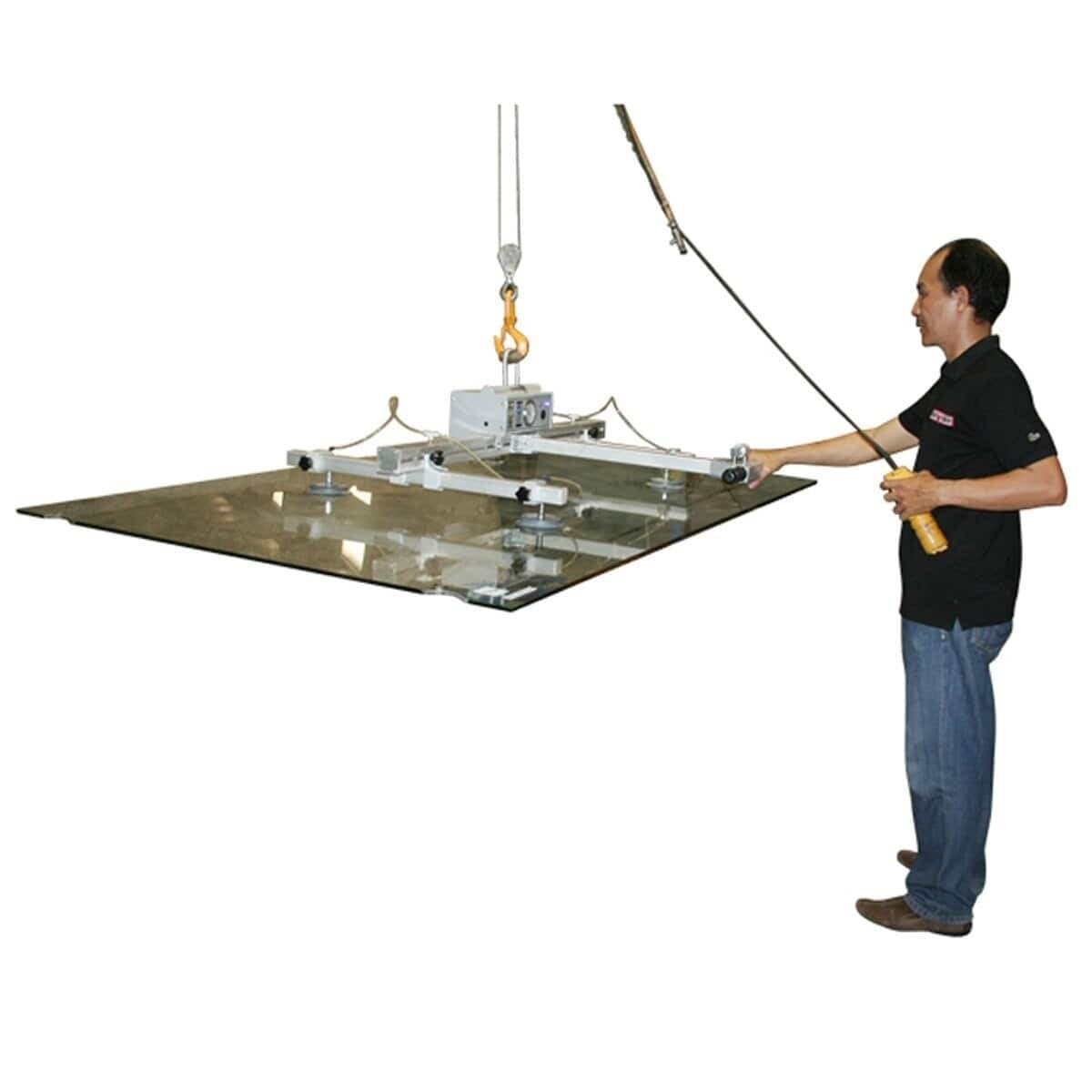

The AVLB4 is designed for the horizontal lifting of glass, laser cutters, metal sheets and panels. In addition, the compact design makes it easy to hook onto a hoist.
Features
- Vacuum tank
- Aluminium construction, lightweight
- Audio/visual alarm system
- Attach/release material using the ON/OFF slide valve
- Easy to operate
- Battery charger
Specifications
|
Metric
(mm-kg)
|
Imperial
(inch-lbs)
|
|
| Working load limit | 160 | 353 |
| Net weight | 28 | 62 |
| Gross weight | 40 | 88 |

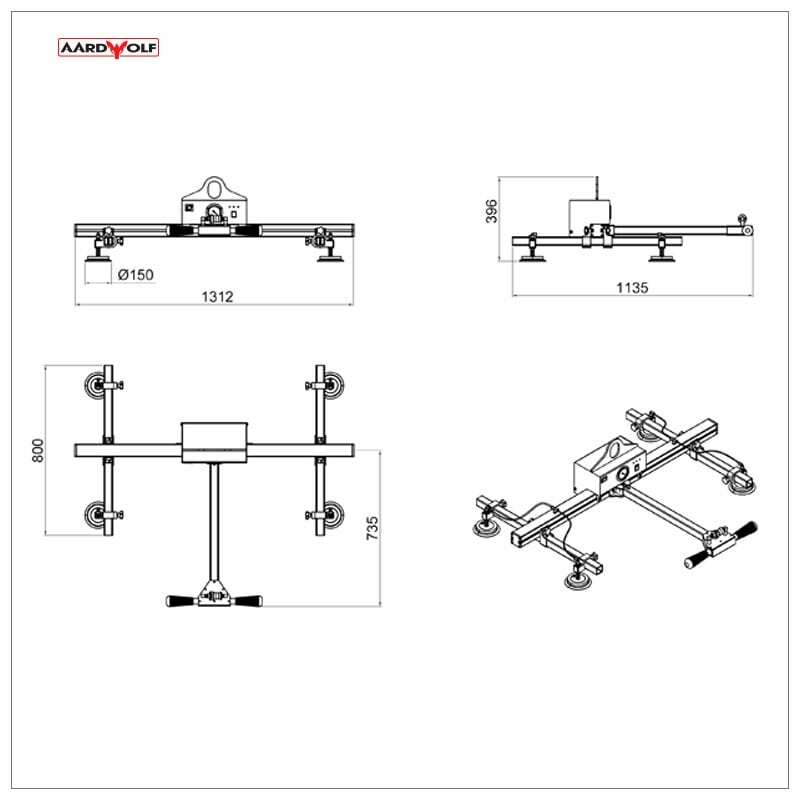

| Packaging dimension | 1350x300x510 | 53x12x20 |
| Pad diameter | 150 | 5.9 |
