Over 11,000 LBS Of Compaction To Tackle Demanding Applications

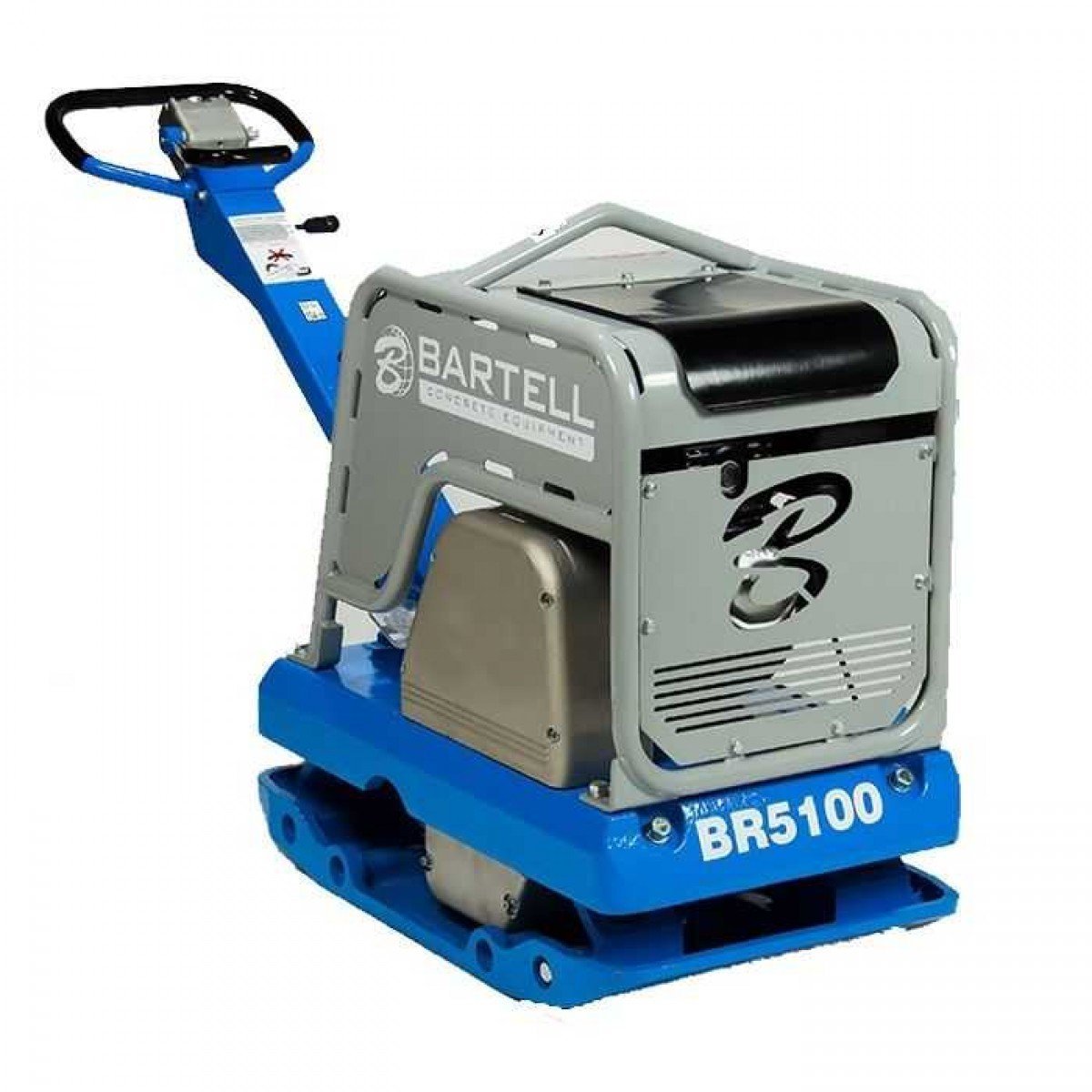

The BR5100 is the largest reversible plate compactor in Bartell's fleet, offering high compaction force and travel speeds to help you accomplish your jobs quickly and effectively.

Compactor Features

  • Hydraulic reversing mechanism with flexible maneuverability allows the machine for forward, backward, and spot-on compaction
  • Cast aluminum throttle lever for a more professional, stronger, and durable for tamping
  • New closed style frame for increased engine and guide hook protection
  • Cast aluminum belt cover for increased clutch and engine longevity
  • Ductile iron bases for increased strength and durability
  • Optional extension plates and urethane mat options available

Technical Specs of Dirt Compactor

Power Output Compaction Force Max Travel Speed Width
Plate Size

8.6hp (6.3kW)
11244 lbf, 50 kN, 5100 kgf 75'/min (23m/min)
20" (500mm)
37" (930mm)
65" (1610mm)
992lbs (450kg)
20" x 36" (500mm x 900mm)
