MVH158GH Reversible Plate Compactor

Original price $8,360.00 - Original price $8,360.00
Original price
$8,360.00 - $8,360.00
Current price $8,360.00

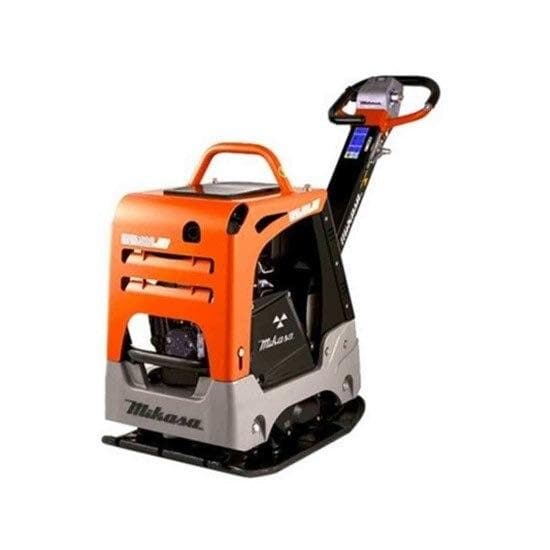

MVH158GH Reversible Plate Compactor with over 6,000 Pounds of Force

6,070 lbs cf, Honda GX200, 16.9in. plate

Multiquips Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.

  • Reliable Honda GX200 engine.
  • Fold-out front cover for easy access to all maintenance points.
  • Hour/Tachometer to measure machine hour usage and engine RPM.
  • Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
  • Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
  • Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
  • Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
  • Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
  • Low profile base plate lowers the center of gravity dramatically improving travel speed.
  • Optional- tool-free wheel kit, model WHL158

Unit Specifications
Centrifugal Force 6070 lbf 27 kN
Exciter Speed 5400 VPM
Plate Size 16.9 x 27.6 in
430 x 700 mm
Max Forward Speed
Per Min.
88 ft 27 m
Dimensions & Weights
Overall Length 44.8 in 1130 mm
Overall Width 16.9 in 430 mm
Overall Height 36.5 in 920 mm
Operating Weight 326 lb 148 kg

Notice: Features and equipment specifications are subject to change without notice.
