Product Description

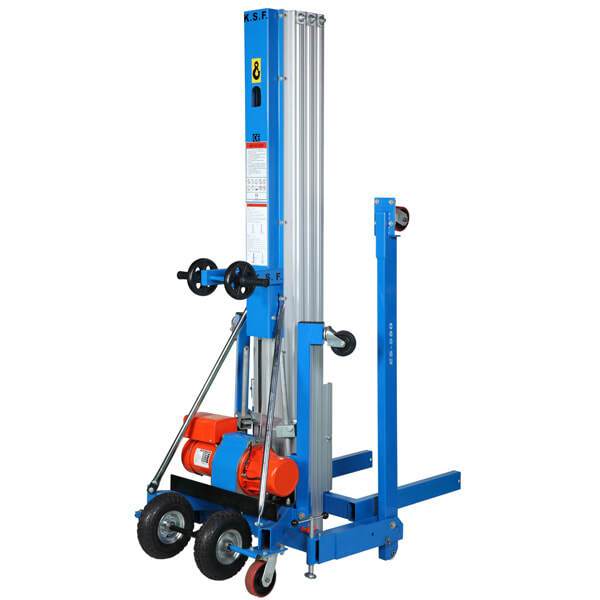

Cargo Lifter ES550 | ES700 | ES850 – Electric Material Lift System

The Cargo Lifter ES Series (ES550, ES700, ES850) from Diamond Tool Store is a professional electric-powered material lifting system designed for safely lifting, transporting, and positioning heavy construction materials on job sites. These compact, one-person-operated lifters are commonly used in HVAC installation, steel framing, electrical work, and industrial maintenance applications.

Built for portability and strength, the Cargo Lifter series helps crews move heavy loads safely and efficiently while reducing labor requirements and improving jobsite productivity.


Electric Material Lifting System for Contractors

Designed for One-Person Operation

The Cargo Lifter ES series is engineered so a single operator can safely load, lift, and position materials without additional manpower. Its compact folding-leg design makes it easy to transport, set up, and maneuver in tight jobsite environments.

Common Applications

  • HVAC system installation
  • Electrical and mechanical contracting
  • Steel frame erection
  • Facility maintenance
  • Industrial construction projects
  • Warehouse material handling

ES Series Models Overview (ES550 / ES700 / ES850)

The ES series includes three models designed for different lifting heights while maintaining the same core load capacity and stability system.

Key Models

  • ES550 model (compact lifting height)
  • ES700 model (mid-range reach)
  • ES850 model (maximum lifting height)

All models share a 660 lb load capacity at optimal load position, making them suitable for heavy-duty professional use.


Key Features of Cargo Lifter ES Series

Built for Heavy Material Handling

The Cargo Lifter series is designed with a reinforced mast system and integrated safety features to support demanding jobsite conditions.

Core Features

  • Electric-powered lifting system
  • One-person operation capability
  • Folding legs for easy transport and setup
  • Anti-fall mast safety system
  • Compact footprint for indoor and outdoor use
  • High lifting reach for elevated installations
Model ES550  ES700 ES850
Basic Height 217 cm (85") 217 cm (85") 217 cm (85")
Lifting Height (Forks Up) 498 cm (16'4") 664 cm (23'5") 816 cm (26'9")
Lifting Height (Forks Down) 553 cm (18'2") 716 cm (23'6") 871 cm (29'7")
Load Capacity - 15" from boom 300 kg (660 LBS) 300 kg (660 LBS) 300 kg (660 LBS)
Load Capacity - 27" from boom 250 kg (551 LBS) 200 kg (440 LBS) 200 kg (440 LBS)
Fork Dimensions 64 x 56 cm (25" x 22") 64 x 56 cm (25" x 22") 64 x 56 cm (25" x 22")
Ground Clearance (Forks Up) 0 cm (0") 0 cm (0") 0 cm (0")
Ground Clearance (Forks Down)  58 cm (23") 58 cm (23") 58 cm (23")
Machine Weight 198 kg (437 LBS) 219 kg (482 LBS) 240 kg (529 LBS)
Basic Dimensions (Stowed)  90 x 76 cm (35" x 30") 90 x 76 cm (35" x 30") 90 x 76 cm (35" x 30")
Basic Dimensions (Operating) 216 x 170 cm (85" x 67") 216 x 170 cm (85" x 67") 216 x 170 cm (85" x 67")
Shipping Size 117 x 78 x 231 cm (46" x 30" x 90") 117 x 78 x 231 cm (46" x 30" x 90") 117 x 78 x 231 cm (46" x 30" x 90")

Lifting Performance & Capacity

The ES series is designed to deliver consistent performance across all models while varying in vertical reach:

  • Load capacity: up to 660 lbs (at optimal load position)
  • Lightweight frame for easy transport
  • High-reach mast for elevated installations
  • Stable base design for jobsite safety

This makes the system ideal for lifting ducting, piping, glass components, steel parts, and general construction materials.


Recommended Equipment Applications

The Cargo Lifter ES series is widely used across multiple construction and industrial sectors:

  • HVAC duct and unit installation
  • Electrical conduit and cable tray placement
  • Steel beam and framing support
  • Mechanical system installation
  • Industrial facility maintenance
  • Warehouse loading and unloading

Why Contractors Use Cargo Lifters

Improve Safety and Reduce Labor Costs

Manual lifting of heavy materials increases injury risk and slows down installation. The Cargo Lifter system eliminates many of these risks by providing controlled electric lifting.

Key Benefits

  • Reduces manpower requirements
  • Improves jobsite safety
  • Speeds up installation workflows
  • Increases lifting accuracy
  • Allows safer elevated positioning

Frequently Asked Questions

What is the Cargo Lifter ES series used for?

The ES series is used to lift and position heavy construction materials such as HVAC components, steel parts, and industrial equipment safely and efficiently.

Can one person operate the Cargo Lifter?

Yes. The system is designed for one-person operation, reducing labor needs on job sites.

What is the load capacity of the ES series?

The Cargo Lifter ES series supports up to approximately 660 lbs depending on load position.

What industries use Cargo Lifters?

HVAC, electrical contracting, steel construction, facility maintenance, and industrial installation industries.

Is the Cargo Lifter portable?

Yes. It features folding legs and a compact design for easy transport between job sites.

What makes the ES series different from a forklift?

Unlike forklifts, the Cargo Lifter is compact, designed for vertical lifting in tight spaces, and operated by a single user without requiring a full-sized industrial vehicle.
