JML-12S Material Lift, 12 Ft. Lift Height

JET JML-12S Material Lift — 12 Ft. Lift Height, 450 lb. Capacity

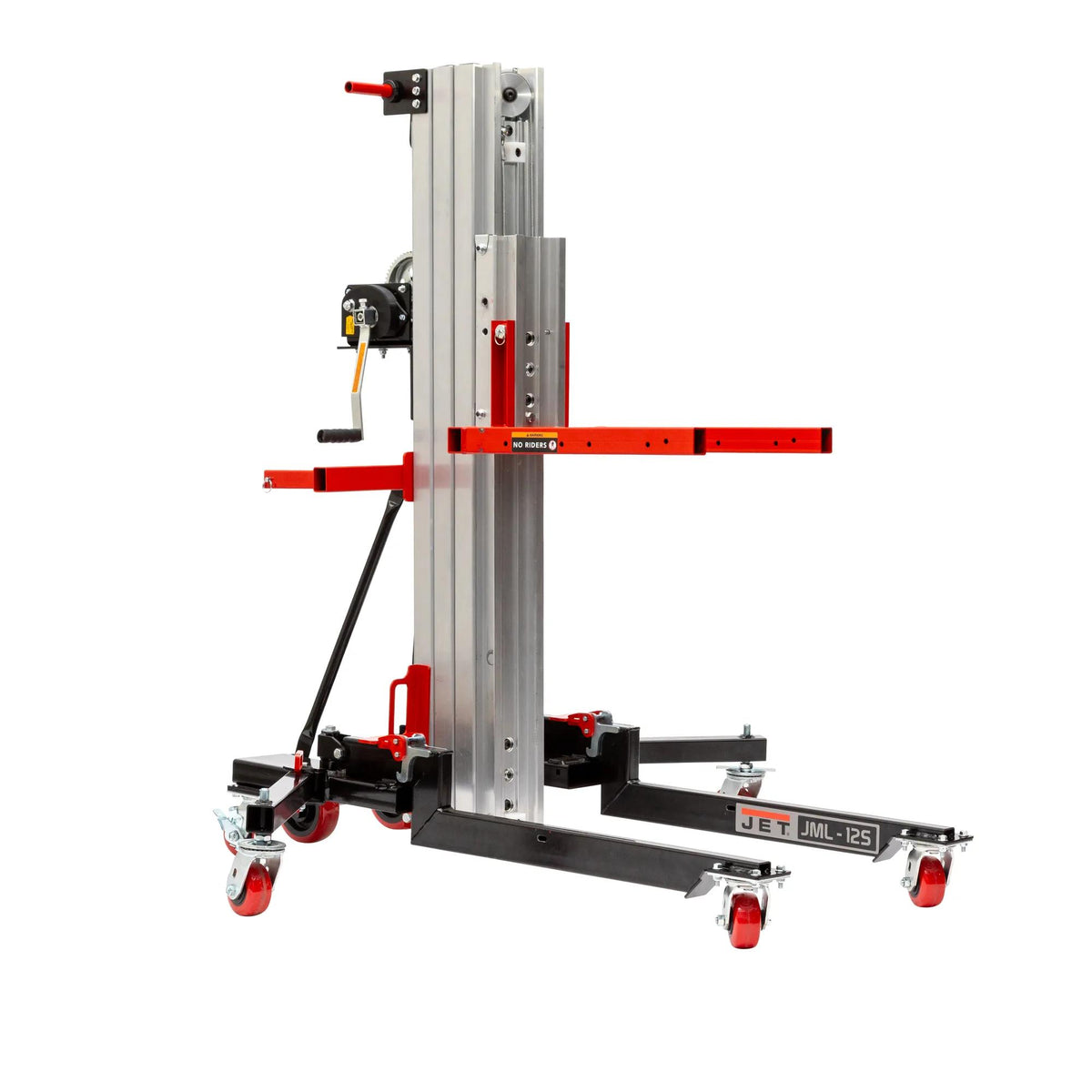

The JET JML-12S is a 2-section telescoping material lift engineered for contractors and trades professionals who need reliable, high-capacity lifting in a compact, maneuverable package. Rated for 450 lbs. at a 14-inch load center and reaching a maximum lift height of 12 ft. 11 in. (forks mounted up), it is purpose-built for HVAC, mechanical, facility maintenance, and manufacturing applications. The drill-driven winch with a 24-to-1 gear ratio reduces operator fatigue during frequent lifts, while all-metal pulley wheels and bearing-mounted mast rollers deliver consistent performance in demanding jobsite environments. A short-stack 2-section mast design keeps the unit compact for transport and storage without sacrificing lifting performance.

Technical Specifications

Stowed Mode Dimensions

Load Ratings at Various Load Centers

Available Accessories

The JML-12S distinguishes itself from conventional material lifts through its short-stack 2-section mast design, which improves portability and allows the unit to navigate tight doorways, job site corridors, and vehicle interiors more easily than taller, heavier alternatives. Integrated forklift pockets provide a dedicated, safer method for loading and unloading the lift between jobs without overhead rigging. The drill-driven winch with debris guards and bearing-mounted mast rollers is engineered for sustained daily use with reduced maintenance downtime.

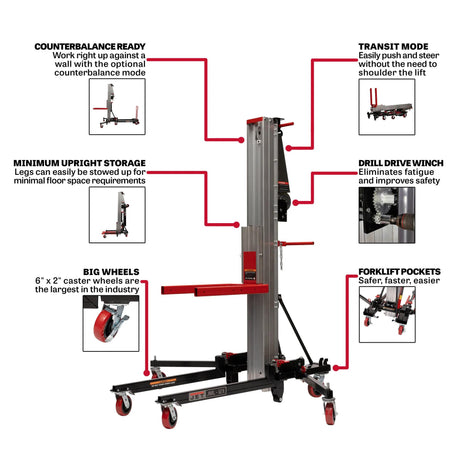

Key Features & Benefits

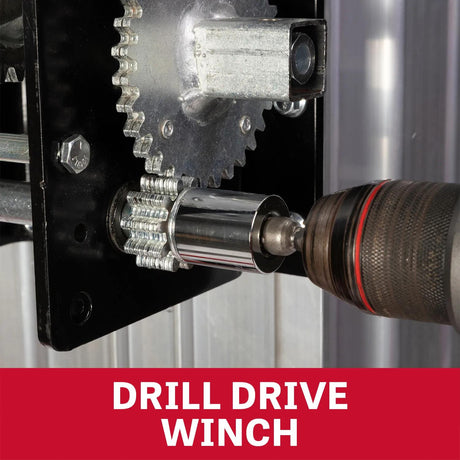

Drill-Driven Winch with 24-to-1 Gear Ratio

The drill-operated winch accepts a standard 3/4 in. 6-point socket and is rated for drills up to 1,400 in-lbs of torque at a maximum of 500 RPM (no load). This eliminates the fatigue associated with manual cranking during frequent or heavy lifts, allowing crews to maintain productivity throughout the workday.

All-Metal Pulley Wheels and Bearing-Mounted Mast Rollers

The all-metal pulley system and bearing-mounted rollers are built to withstand the rigors of daily jobsite use. Metal construction resists wear and deformation that can affect lift performance over time, reducing the frequency of component replacement.

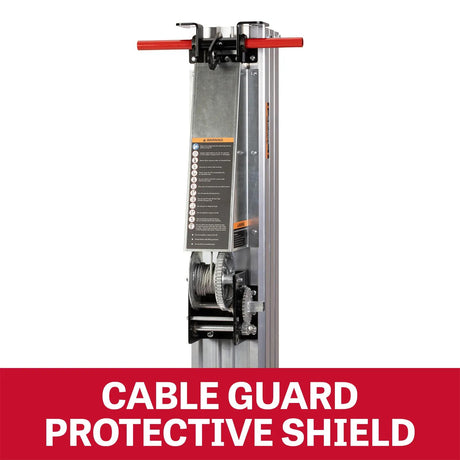

Debris Guards

Integrated debris guards prevent bolts, screws, and other small objects from entering the mast sections during operation. This protects the internal components and helps keep the lift running smoothly in cluttered or active work environments.

Internal Mast Brake System

An internal mast brake provides an additional layer of safety by helping to hold the load in position. The mast brake release is operator-accessible, giving crews controlled, predictable lowering performance.

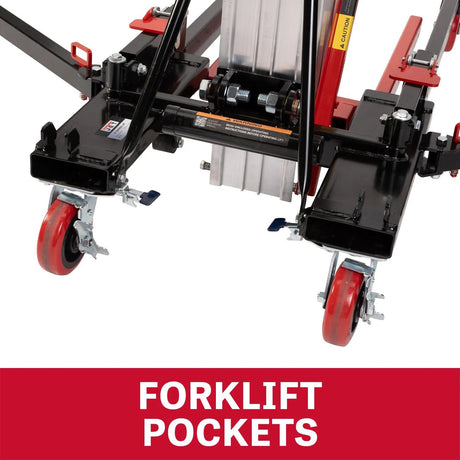

Integrated Forklift Pockets

Internal forklift pockets (5.75 x 1.75 in.) allow the lift to be picked up, loaded, and moved with a forklift without the need for overhead rigging. This provides a safer and faster method for transporting the unit between job sites or loading it onto trucks and trailers.

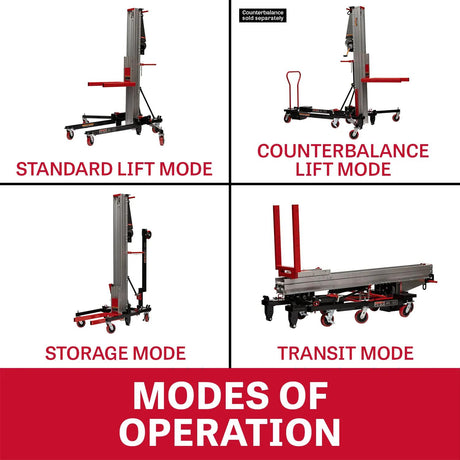

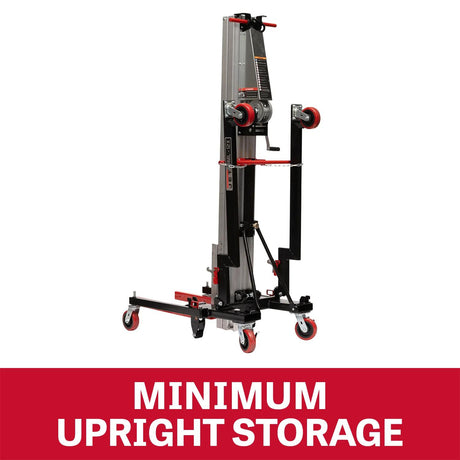

Compact Nesting Storage (Vertical Storage Mode)

Patent-pending leg manipulation allows the legs to nest for upright vertical storage, reducing the unit's footprint to 2 ft. 6.6 in. x 2 ft. 7.7 in. This maximizes usable floor space in shops, trailers, and storage areas when the lift is not in use.

Spring Locking Pin Mast Lock

A spring-and-pin mast locking design improves security during transit, preventing unintended mast movement when the lift is being transported in horizontal mode.

Leg Latches for Fast Setup

Quick-action leg latches allow the stabilizer legs and front legs to be deployed and locked rapidly, reducing setup time between lifts and keeping crews moving on the job site.

Common Applications

HVAC Equipment Installation

Lift air handlers, fan coil units, and other HVAC components to elevated installation positions. The 450 lb. capacity and 12 ft. 11 in. maximum lift height accommodate a wide range of commercial HVAC equipment.

Mechanical Contractor Work

Position piping assemblies, valves, and mechanical components at height for installation. The adjustable pipe cradle accessory (JML-APC) provides additional support for cylindrical loads.

Facility Maintenance

Handle overhead maintenance tasks such as replacing ceiling-mounted equipment, light fixtures, or ductwork components without the need for scaffolding or aerial work platforms for material positioning.

Manufacturing and MRO Operations

Move and position heavy components, assemblies, or replacement parts within manufacturing facilities. The compact footprint and caster mobility allow the lift to operate in tight production floor environments.

Material Handling Between Job Sites

The horizontal transport mode (2 ft. 6.5 in. height) and integrated forklift pockets make it straightforward to load the JML-12S into trucks or trailers and transport it between locations.

Compatible Materials

• HVAC equipment and air handling units
• Mechanical assemblies and piping components
• Ceiling-mounted equipment and fixtures
• Manufacturing components and assemblies
• General construction materials within the 450 lb. rated capacity at 14" load center
• Cylindrical loads (with optional JML-APC Adjustable Pipe Cradle accessory)
• Extended-reach loads up to 200 lbs. at 30" load center (with optional JML-FES Fork Extension Kit)

Product Documents

• JML-12S/16S Service Manual
• JET S-Series Material Lifts Selling Guide
• JML-12S/16S Operating Instructions & Parts Manual

Safety Data Summary

Hazard Information

• Tip-over hazard if load exceeds rated capacity, load is not centered, or stabilizer legs are not fully deployed and locked
• Electrocution hazard — lift is not insulated from electrical current; contact with energized power lines can cause severe injury or death
• Fall hazard — do not use to lift, lower, support, or transport people; do not stand on load forks or climb on the mast
• Cable failure hazard if cable is kinked, frayed, worn, or damaged; replace with factory replacement cable only
• Pinch point hazards at folding legs, mast sections, winch, cable, and lifting forks
• Winch over-torque hazard — do not use a drill rated above 1,400 in-lbs of torque
• Prop 65 Warning: Cancer and Reproductive Harm

Personal Protective Equipment

• Hard hat
• Safety glasses
• Steel-toe shoes
• Gloves

Safe Handling

• Read and understand the full Operating Instructions and Parts Manual before use
• Inspect the lift and cable for damage before each use; do not use if damaged
• Use only on solid, level surfaces capable of supporting the weight of the lift and load
• Ensure stabilizer legs are fully deployed and locked before raising any load
• Never allow anyone under an elevated load; keep bystanders clear of the lift path
• Do not move the lift to a different location while a load is attached and elevated
• Always leave at least five wraps of cable on the winch drum
• Maintain minimum 2x cable diameter clearance on drum flange when winding under load
• Do not operate outdoors in strong or gusty winds, during storms, or if lightning is in the area
• Do not leave the lift unattended with a load attached and elevated
• Use proper lifting practices and multiple people when raising or lowering the mast assembly to/from horizontal transport mode
• Maintain safe distance from electrical power lines in accordance with OSHA Standard 1926.1408

Frequently Asked Questions

Q: What is the maximum lift height of the JML-12S?

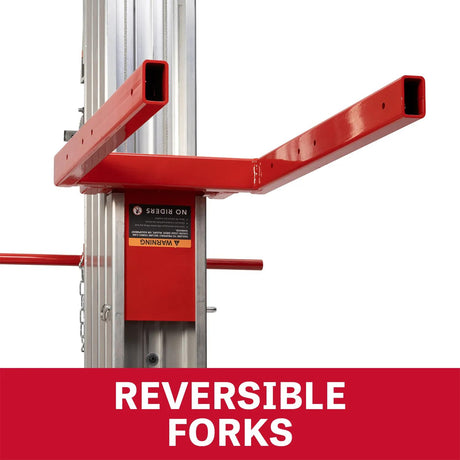

A: With forks mounted up on the carriage, the maximum lift height is 12 ft., 11 in. With forks mounted down on the carriage, the maximum lift height is 11 ft., 6 in.

Q: Can I use any drill to operate the winch?
A: The drill input accepts a 3/4 in. 6-point socket and is compatible with drills up to a maximum of 1,400 in-lbs of torque and 500 RPM (no load). Do not use a drill rated above 1,400 in-lbs of torque, as excessive torque can cause cable breakage and serious injury.

Q: What is the lifting capacity when using the optional fork extensions?
A: With the JML-FES Fork Extension Kit installed, the maximum lifting capacity is 200 lbs. at a 30-inch load center. The standard capacity of 450 lbs. applies at a 14-inch load center without extensions.

Q: How does the JML-12S store when not in use?
A: The lift features a Vertical Storage Mode with patent-pending nesting leg design that reduces the footprint to 2 ft. 6.6 in. (L) x 2 ft. 7.7 in. (W) x 5 ft. 3.25 in. (H), making it suitable for upright storage in shops, trailers, and off-season storage areas.

Q: How is the JML-12S transported between job sites?
A: The lift can be placed in Horizontal Transport Mode (2 ft. 6.5 in. height) for loading into trucks or trailers. Integrated forklift pockets (5.75 x 1.75 in. internal dimensions) allow a forklift to pick, load, and move the lift without overhead rigging.

Q: What should I do if the lift cable becomes worn or damaged?
A: Do not attempt to repair or lengthen the cable. Replace it immediately with a factory replacement cable only. Refer to the JML-12S/16S Service Manual for the complete cable replacement procedure. Contact JET Technical Service at 1-800-274-6846 for assistance.
