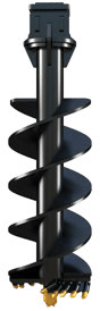

The RC10 is an all purpose taper tooth auger which provides a clean hole every time.

With the RC10 range of auger bits, you benefit from its 1-3/4" hex drive pilot over the square drive - giving machines with higher down pressure and higher torque greater strength. The RC10 suits Excavators up to 50 ton for drilling in earth & hard fracturable rock. This auger has been designed with a double flight configuration, but with upgraded flights for more durability when used in larger machines. Its heavy duty body allows for greater reliability in tough conditions.

Can't get your old teeth out? Digga's ingenious knock in, knock out tooth locking systems eliminate the need for cumbersome tools to remove the auger teeth.

RC10 Auger Bit Specs
Drilling Conditions Combination Rock / Earth
Hub 4" Square
Optional Hub 3" Hex
Overall Length 60"
Pipe 3" - 6.5"
Flights (Lead) 5/8"
Flights (Carry) 5/8"
Teeth TTD
Pilot PH-3
Max Size 78"
Ideal Drives 13DDS-30DDS
Optimum Drilling Speeds
Earth 55-65
Clay 45-55
Shale (Fracturable Rock) 25-45
Heavy Rock 10-25
Auger Features Double flight configuration Upgraded flights from 3/8” to 5/8” for greater durability & performance with larger machines
