Augers For Excavators 13-16T
Digga's range of drilling augers for 13-16t excavators are the ultimate in performance, quality, and cost effectiveness.
Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.
Fitted with Digga / Eaton bell motors with integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions.
Available in Single Speed Standard, low pressure (for machines with 3000 psi), Two Speed, and Two Speed low pressure (for machines with 3000 psi). Want to install Screw Anchors with your Drive? Absolutely, but to ensure full warranty protection, the addition of our patented ECV "Energy Control Valve" ensures complete protection against pile ‘flickback’ damaging your motor.
Single Speed Features:
- Compact high torque Digga manufactured gearbox
- Digga designed Eaton motor with integrated pressure relief valve eliminating the need for bulky valve blocks while reducing many potential leak points
- 2 Piece shaft design ensures maximum side load ratings without increasing load on bearings
- Lifetime shaft pull out warranty
- 5 year gearbox and 3 year motor warranty
- Over 30 years design and manufacturing experience
- Easily converted to a screw anchor drive with the addition of our patented 'anti kickback valve'
| Single Speed Specs | 13DDS | 16DDS |
|---|---|---|
| Torque (FT-LBS @ 3000 PSI) | 10,978 | 13,810 |
| Max Torque (FT-LBS @ 3500 PSI) | 12,808 | 16,111 |
| Recommended Flow (GPM) | 26-54 | 26-54 |
| Motor Type | Eaton | Eaton |
| Max Pressure (Do Not Exceed) | 3500 PSI @ 33 GPM | |
| Max Flow (Do Not Exceed) | 61 GPM @ 1800 PSI | |
| Max Horse Power | 67 | 67 |
| Pressure Relief Valve | Included | Included |
| Standard Output Shaft | 3" Hex | 3" Hex |
| Halo | Optional | Optional |
| Recommended Auger | A8 / RC8 / RC10 | A8 / RC8 / RC10 |
| Max Auger Diameter (Clay / Shale)¹ | 36" | 48" |
| Max Auger Diameter (Earth)¹ | 60" | 60" |
| Weight (lbs.) | 370 | 370 |
| Overall Length (in.) | 39.6" | 39.6" |
| Diameter (in.) | 11.4" | 11.4" |
| Single Speed Output | |||||||
|---|---|---|---|---|---|---|---|
| 13DDS | 16DDS | ||||||
| OUTPUT SPEED | OUTPUT TORQUE | OUTPUT SPEED | OUTPUT TORQUE | ||||
| GPM | RPM | PSI | FT-LBS | GPM | RPM | PSI | FT-LBS |
| 26 | 22 | 1,500 | 5,489 | 26 | 17 | 1,500 | 6,905 |
| 30 | 25 | 1,700 | 6,221 | 30 | 20 | 1,700 | 7,825 |
| 34 | 28 | 1,900 | 6,953 | 34 | 23 | 1,900 | 8,746 |
| 38 | 32 | 2,100 | 7,685 | 38 | 25 | 2,100 | 9,667 |
| 42 | 35 | 2,300 | 8,417 | 42 | 28 | 2,300 | 10,587 |
| 46 | 39 | 2,500 | 9,149 | 46 | 31 | 2,500 | 11,508 |
| 50 | 42 | 2,700 | 9,880 | 50 | 33 | 2,700 | 12,429 |
| 54 | 45 | 2,900 | 10,612 | 54 | 36 | 2,900 | 13,349 |
| 3,200 | 11,344 | 3,200 | 14,270 | ||||
| 3,300 | 12,076 | 3,300 | 15,191 | ||||
| 3,500 | 12,808 | 3,500 | 16,111 | ||||

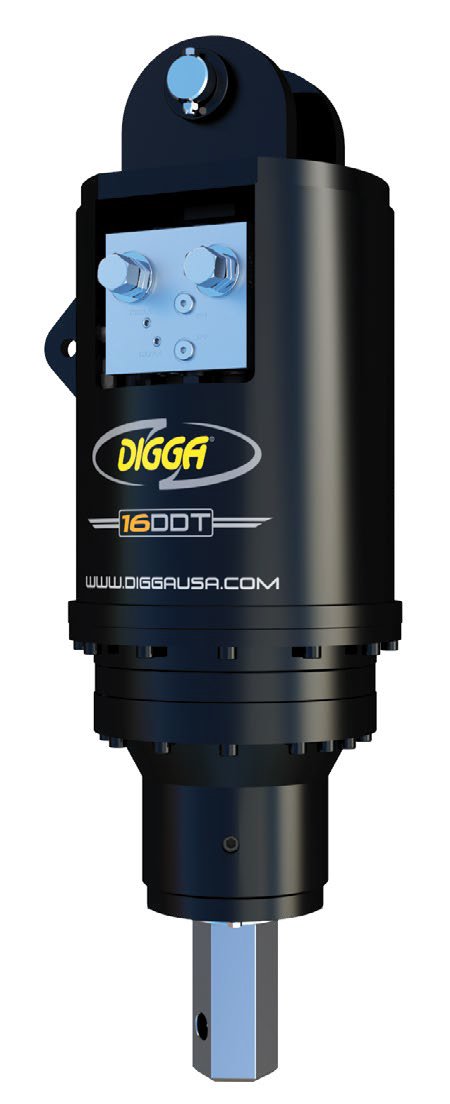

Digga's 2 Speed Augers are designed to suit excavators & skid steer loaders, truck cranes, front end loaders, wheeled loaders and backhoes with flows between 16-53gpm. We distribute our 2 Speed Drilling Augers throughout North America.
2-Speed Features:
- Compact high torque Digga manufactured gearbox
- Highly efficient design with less moving parts
- Fitted with Eaton VIS motor
- Integrated PRV (Pressure Relief Valve)
- Extreme duty shaft locking system
- Drive fits down the hole for greater digging depth
- 5 year gearbox and 3 year motor warranty
- Low maintenance
| 2-Speed Specs | 13DDT | 16DDT |
|---|---|---|
| Torque (FT-LBS @ 3000 PSI) | 11,441 | 14,098 |
| Max Torque (FT-LBS @ 3500 PSI) | 13,347 | 16,448 |
| Recommended Flow (GPM) | 16-53 | 20-53 |
| Motor Type | Eaton | Eaton |
| Max Pressure (Do Not Exceed) | 3500 PSI @ 33 GPM | |
| Max Flow (Do Not Exceed) | 53 GPM @ 2200 PSI | |
| Max Horse Power | 67 | 67 |
| Pressure Relief Valve | Included | Included |
| Standard Output Shaft | 3" Hex | 3" Hex |
| Recommended Auger | A8 / RC8 / RC10 | A8 / RC8 / RC10 |
| Max Auger Diameter (Clay / Shale)¹ | 36" | 48" |
| Max Auger Diameter (Earth)¹ | 60" | 60" |
| Weight (lbs.) | 394 | 394 |
| Overall Length (in.) | 38.6" | 38.6" |
| Diameter (in.) | 14.4" | 14.4" |
¹Max/min drilling diameter (DIA) dependent on ground conditions. Guide is a recommendation only.
| Two-Speed Output | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 13DDT | 16DDT | ||||||||||
| OUTPUT SPEED | OUTPUT TORQUE | OUTPUT SPEED | OUTPUT TORQUE | ||||||||
| GPM | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | PSI | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | GPM | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | PSI | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED |
| 16 | 13 | 19 | 1,000 | 3,814 | 2,517 | 20 | 13 | 20 | 1,000 | 4,699 | 3,102 |
| 26 | 21 | 32 | 1,500 | 5,720 | 3,775 | 30 | 20 | 30 | 1,500 | 7,049 | 4,652 |
| 36 | 29 | 44 | 2,000 | 7,627 | 5,034 | 40 | 26 | 40 | 2,000 | 9,399 | 6,203 |
| 46 | 34 | 56 | 2,500 | 9,534 | 6,292 | 53 | 35 | 52 | 2,500 | 11,749 | 7,754 |
| 53 | 43 | 65 | 3,000 | 11,441 | 7,551 | 3,000 | 14,098 | 9,305 | |||
| 3,500 | 13,347 | 8,809 | 3,500 | 16,448 | 10,856 | ||||||
