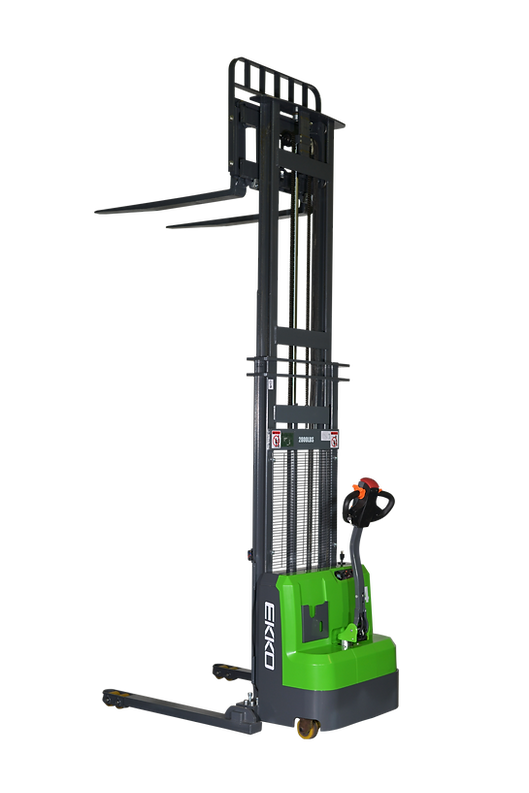

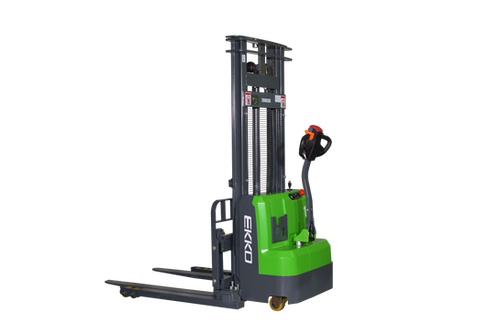

Electric Straddle Stacker, Lithium with 98" Lift Height

EKKO EB14C-98Li Electric Straddle Stacker – 3,000 lb Capacity Walkie Stacker for Loading Docks, Stockrooms & Warehousing

The EKKO EB14C-98Li Electric Straddle Stacker is a heavy-duty, battery-powered walkie stacker engineered for contractors, warehouse operators, and trades professionals who need the combined functionality of a forklift, reach truck, and walkie stacker in a single unit. Rated for 3,000 lb load capacity with a raised height of 98 inches (8.16 ft.), this machine handles demanding material movement tasks across loading docks, stock rooms, manufacturing floors, and warehousing environments. Built from high-quality steel with durable components, it is designed to withstand varied terrain, heavy usage, impact, and frequent directional changes.

What sets the EB14C-98Li apart is its dual damping drive system, which enhances handling performance, operational efficiency, and operator comfort compared to standard walkie stackers. The Curtis Instrument Controller paired with a DC drive motor and a 24V/50Ah lithium battery delivers reliable, consistent power with the low-maintenance advantage of lithium chemistry over lead-acid alternatives.

Technical Specifications

Key Features & Benefits

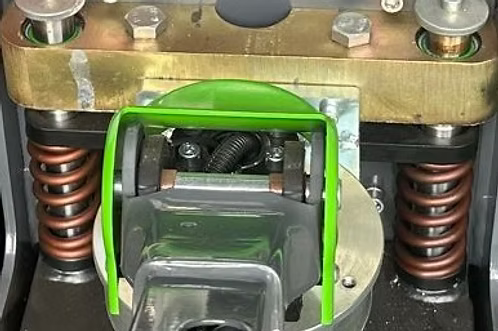

Dual Damping Drive System

The dual damping drive system is specifically engineered to improve handling performance, operational efficiency, and operator comfort. For contractors working long shifts on uneven warehouse or loading dock floors, reduced vibration and smoother directional changes mean less fatigue and more precise load placement.

Lithium Battery Power (24V / 50Ah)

The 24V/50Ah lithium battery delivers consistent power output throughout the charge cycle without the maintenance demands of lead-acid batteries — no watering, no equalizing charges, and faster recharge times. This keeps the machine available during demanding work shifts on construction floors and in stockrooms.

Curtis Instrument Controller

The Curtis Instrument Controller is an industry-recognized control system used across professional-grade electric lift equipment. It provides precise drive and lift control, contributing to reliable operation and ease of diagnostics when service is required.

Adjustable Forks and Legs

Fork width adjusts from 8.7" to 32.1" and straddle legs adjust from 35.4" to 51.2", providing the versatility to handle a wide range of pallet sizes and load configurations. This adjustability reduces the need for multiple machines across different material handling tasks on the same job site.

Polyurethane Wheels

Polyurethane wheels offer durability on smooth concrete, warehouse, and manufacturing floor surfaces while minimizing floor marking and wear. They are well-suited to the interior environments where this stacker is designed to operate.

Steel Construction

The machine is built from high-quality steel to withstand the rigors of daily contractor and warehouse use, including impact, heavy loads, and frequent directional changes. Robust construction translates directly to longer service life and lower total cost of ownership in demanding commercial environments.

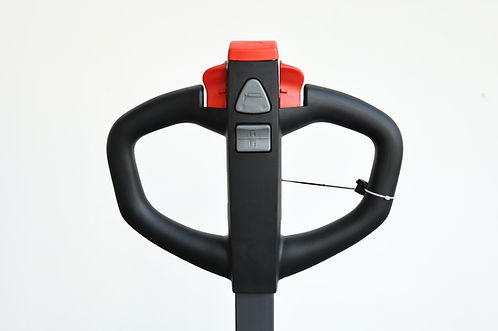

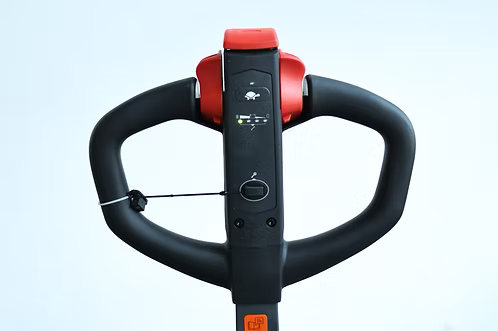

Ergonomic Handle and Controls

The ergonomic handle and control layout reduces operator strain during extended use. For trades professionals operating the stacker across full work shifts, intuitive controls contribute to safer, more efficient material handling.

Common Applications

Loading and Unloading Trucks

The 3,000 lb capacity and 45.3" fork length make the EB14C-98Li well-suited for loading and unloading freight from delivery trucks at job site receiving areas or warehouse docks.

Loading Dock Operations

The straddle leg design and adjustable fork width allow the machine to navigate standard loading dock environments and handle palletized goods efficiently between dock and storage areas.

Stock Room Material Handling

The compact straddle stacker configuration is designed for stockroom use, where maneuvering between racking and in tight aisles is required while still moving heavy palletized loads.

Manufacturing Floor Material Movement

On manufacturing floors, the dual damping drive system and polyurethane wheels allow smooth, controlled transport of materials and components across smooth concrete surfaces without damaging flooring.

Warehousing and Racking

With a raised height of 98" (8.16 ft.), the EB14C-98Li can place and retrieve loads on standard warehouse racking, supporting efficient vertical storage in distribution and warehousing operations.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized construction materials
• Palletized manufacturing components
• Palletized freight and boxed goods

Frequently Asked Questions

Q: What is the maximum lift height of the EB14C-98Li?
A: The EB14C-98Li has a raised height of 98 inches (8.16 ft.), making it suitable for standard warehouse racking applications.

Q: What type of battery does this stacker use?
A: It uses a 24V/50Ah lithium battery, which offers lower maintenance requirements compared to lead-acid alternatives.

Q: Can the forks and legs be adjusted to fit different pallet sizes?
A: Yes. The forks are adjustable from 8.7" to 32.1" and the straddle legs adjust from 35.4" to 51.2" to accommodate a range of pallet configurations.

Q: What surfaces are the polyurethane wheels suited for?
A: Polyurethane wheels are designed for smooth interior surfaces such as concrete warehouse floors, manufacturing floors, and loading dock areas.

Q: How does the dual damping drive system benefit the operator?
A: The dual damping drive system enhances handling performance, operational efficiency, and operator comfort by reducing vibration and smoothing out directional changes during operation.
