Electric Walkie Pallet Jack, 4,400 lb with Lithium Battery

EKKO EP20LI Electric Walkie Pallet Jack — 4,400 lb Lithium Iron Phosphate Power for Loading Docks & Warehouses

The EKKO EP20LI is a lithium iron phosphate (LiFePO4) electric walkie pallet jack rated for 4,400 lb loads, built for contractors, warehouse operators, and trades professionals who need reliable powered material handling without the maintenance demands of lead-acid equipment. It combines full power lifting and electric drive in a compact walkie configuration, making it practical for loading and unloading trucks, navigating loading docks, stocking manufacturing floors, and general warehousing operations. The steel frame with robotic welding provides the structural integrity needed for consistent daily use across demanding environments.

Unlike conventional lead-acid walkie pallet jacks, the EP20LI uses an integrated LiFePO4 battery with a built-in onboard charger, eliminating the need for a separate charging station or battery swap routine. The polyurethane drive wheels and steel entry wheels are spec'd to handle varied floor surfaces and the directional changes typical of busy receiving areas and stock rooms.

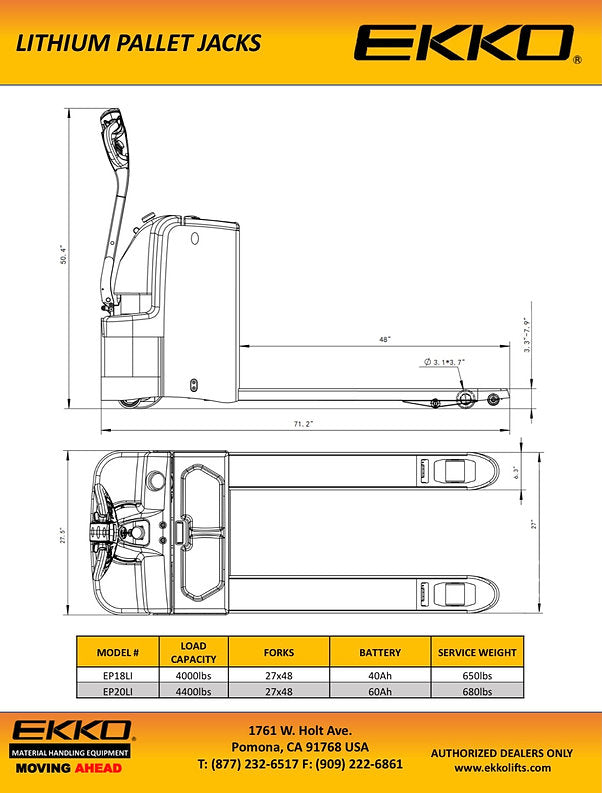

Technical Specifications

Key Features & Benefits

Lithium Iron Phosphate (LiFePO4) Battery

The 24V / 60Ah LiFePO4 battery chemistry offers a more stable and longer-cycle-life power source compared to traditional lead-acid alternatives. For contractors and warehouse teams running multiple shifts, this translates to less downtime spent managing battery condition and replacement intervals.

Built-In Onboard Charger

The integrated charger means the EP20LI can be plugged in directly wherever a standard outlet is available — no dedicated charging bay or external charger unit required. This simplifies deployment on job sites, in stock rooms, or across multiple facility locations.

Steel Construction with Robotic Welding

The full steel frame constructed with robotic welding delivers consistent weld quality and structural repeatability across the entire unit. This matters on job sites and loading docks where the jack is subject to constant impact, heavy loads, and frequent directional changes.

Ergonomic Handle and Controls

The ergonomic handle and control layout allows the operator to manage lifting and driving from a natural hand position, reducing fatigue during extended use. For operators moving high volumes of pallets in a single shift, this directly affects productivity and operator comfort.

Polyurethane Drive Wheels with Steel Entry Wheels

Polyurethane drive wheels provide traction and floor protection across concrete and smooth warehouse surfaces, while steel entry wheels at the fork tips hold up to the repeated pallet entry contact that wears down lesser materials. The combination is designed for durability under continuous operational demand.

Optional Backrest Accessory

A backrest accessory is available for applications where load stability during transit is a concern, such as moving tall or top-heavy pallet loads across a facility floor. This adds versatility to the base unit without requiring a different machine.

Common Applications

Loading and Unloading Trucks

The 3.3 in lowered fork height allows the EP20LI to slide cleanly under standard pallets on truck beds and loading docks, while the 4,400 lb capacity handles full-weight pallet loads without issue.

Loading Dock Operations

The electric drive and power lift make dock-to-floor pallet transfers faster and less physically demanding than manual jacks, supporting higher throughput at receiving and shipping areas.

Stock Room Replenishment

The compact walkie configuration and responsive controls make the EP20LI well suited for navigating tighter stock room aisles and positioning pallets accurately in storage areas.

Manufacturing Floor Material Handling

Moving raw materials or finished goods between production stations is a direct use case, where the electric drive reduces operator fatigue over the course of a full production shift.

Warehousing and Distribution

General warehouse pallet movement — staging, consolidating, and repositioning loads — is a primary application for the EP20LI across distribution and fulfillment environments.

Compatible Materials

• Standard wooden pallets (GMA and similar footprints compatible with 27 x 48 in forks)
• Plastic pallets
• Concrete warehouse floors
• Smooth warehouse and manufacturing floor surfaces
• Loading dock floors and truck beds

Frequently Asked Questions

Q: Does the EP20LI require an external charger?
A: No. The EP20LI includes a built-in onboard charger, so no separate external charging unit is required.

Q: What battery type does the EP20LI use?
A: It uses a Lithium Iron Phosphate (LiFePO4) battery rated at 24V / 60Ah.

Q: What is the maximum load capacity?
A: The EP20LI is rated for a maximum load capacity of 4,400 lb.

Q: Is a backrest available for this unit?
A: Yes, a backrest is available as an optional accessory for the EP20LI.

Q: What warranty does the EP20LI carry?
A: The EP20LI is covered by a 3 Years Limited Warranty.
