Electric Walkie Pallet Jack, 4400 lb Capacity with Full Power Lifting and Driving

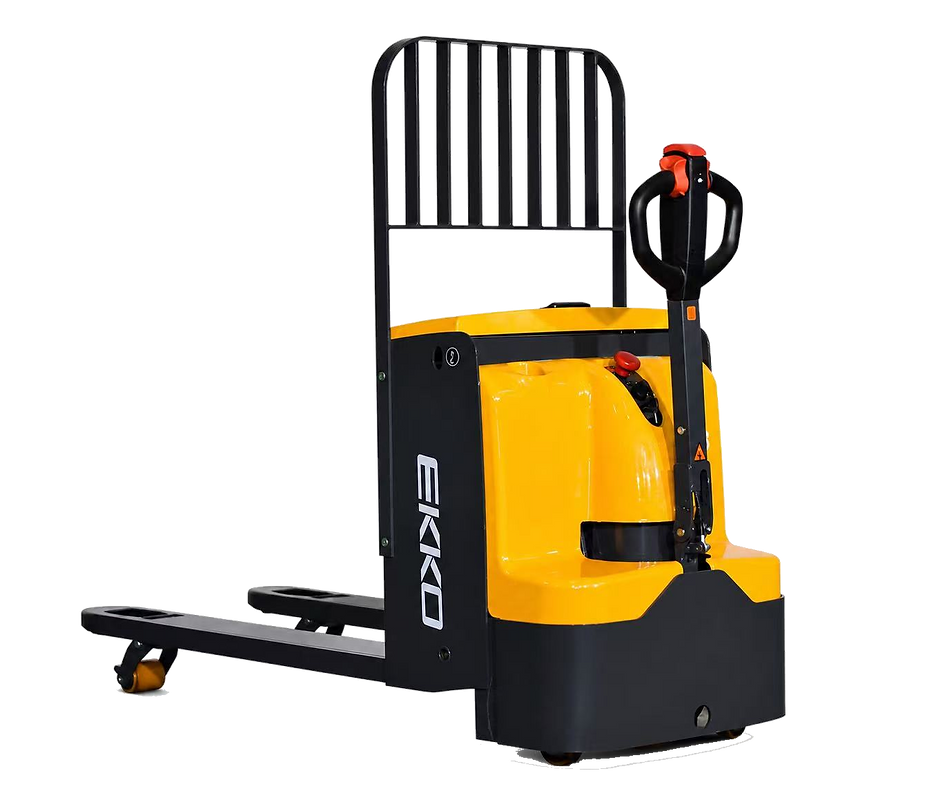

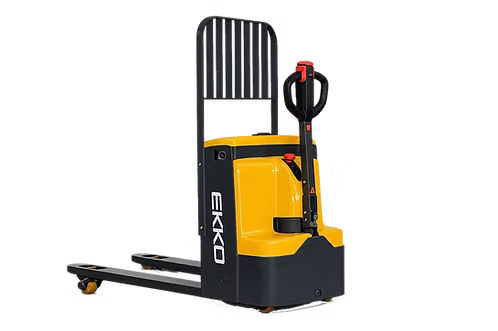

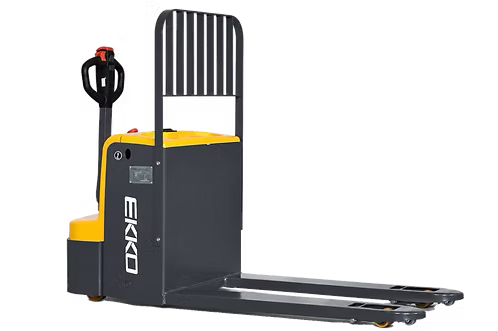

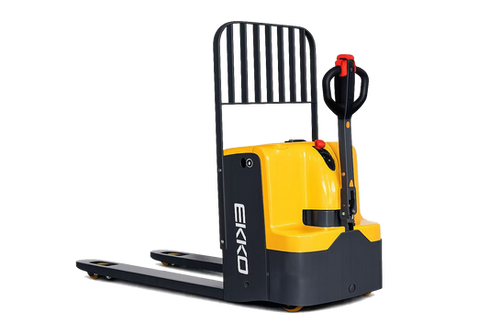

EKKO EP20E Electric Walkie Pallet Jack – 4400 lb Capacity with Full Power Lifting and Driving

The EKKO EP20E Electric Walkie Pallet Jack is a fully powered walkie-style pallet jack built for demanding material handling operations in warehousing, manufacturing, and distribution environments. With a 4,400 lb load capacity and 27" x 48" forks, it handles standard pallets with ease on loading docks, stock room floors, and truck bays. Designed for contractors and trades professionals who need reliable, motorized pallet movement without the footprint of a full rider jack.

Unlike manual pallet jacks, the EP20E provides full electric lifting and driving capability, eliminating operator fatigue during repetitive loading and unloading cycles. Its steel construction with robotic welding and a Curtis Controller set it apart from lower-tier electric walkies, delivering consistent performance across varied terrain and usage conditions.

Technical Specifications

Key Features & Benefits

Curtis Controller

The Curtis Controller is a proven, industry-recognized drive control system used across professional-grade electric material handling equipment. It provides smooth, responsive acceleration and directional changes, reducing operator input fatigue during extended shifts on busy job sites or dock floors.

Steel Construction with Robotic Welding

The EP20E's frame is built from high-quality steel using robotic welding processes, ensuring consistent weld integrity throughout the chassis. This construction approach is designed to withstand impacts, heavy loads, and repeated directional changes without structural compromise.

Polyurethane Drive Wheels with Steel Entry Wheels

Polyurethane drive wheels provide durability and floor protection across a range of interior surfaces, including concrete and warehouse flooring. Steel entry wheels at the fork tips handle the stress of pallet entry and repeated load engagement.

Built-in Charger and Battery Included

The integrated charger eliminates the need to source a separate charging unit, reducing setup costs and keeping the machine ready to deploy immediately. Having the battery included means the unit arrives as a complete, operational package with no additional procurement required.

Ergonomic Handle and Controls

The ergonomic handle and control layout reduce operator strain during sustained use, which is particularly important in high-throughput environments like loading docks or manufacturing floors where the machine may be in continuous operation.

Optional Backrest Accessory

An optional backrest attachment is available for applications where load stability is a concern, providing an additional contact surface to keep materials secure during transport across the floor.

Common Applications

Loading and Unloading Trucks

The EP20E's 3.3" lowered fork height allows it to slide under standard pallets on truck beds, while the full electric drive handles the effort of moving loaded pallets on and off the vehicle.

Loading Dock Operations

Designed for the repetitive pallet movement demands of active loading docks, the EP20E can handle continuous cycles of receiving and staging without operator fatigue from manual pumping.

Stock Room Material Movement

In stock rooms with tight aisles and frequent pallet repositioning, the walkie format provides maneuverability while the electric drive keeps productivity high.

Manufacturing Floor Transport

The EP20E's durable steel construction and polyurethane wheels make it suitable for manufacturing environments where pallets of components or finished goods need to move between workstations.

Warehousing and Distribution

For general warehousing operations, the 4,400 lb capacity covers the vast majority of standard pallet loads, and the built-in charger ensures the unit is always ready for the next shift.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Concrete flooring
• Warehouse and distribution center flooring
• Manufacturing floor surfaces
• Loading dock plates and truck floors

Frequently Asked Questions

Q: Does the EP20E come with a battery and charger?
A: Yes. Both the battery and a built-in charger are included with the unit, so it is ready to operate without any additional purchases.

Q: What is the maximum load capacity?
A: The EP20E is rated for a maximum load capacity of 4,400 lbs.

Q: What fork dimensions does the EP20E use?
A: The forks measure 27" wide by 48" long, compatible with standard pallet entry dimensions.

Q: What warranty is included?
A: The EP20E includes a 3 Years Limited Warranty.

Q: Is a backrest available?
A: Yes, an optional backrest accessory is available for the EP20E.
