Full Electric Walkie Pallet Jack, 4,400lb Capacity Driving with LiFePO4 Technology

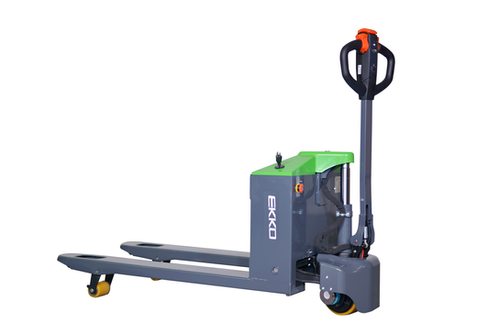

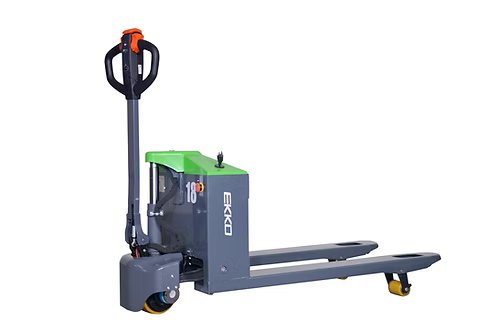

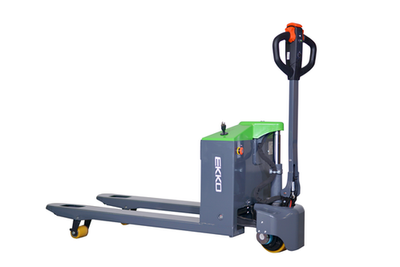

EKKO EP20JLi Lithium Iron Phosphate Electric Walkie Pallet Jack — Full Power Lifting & Driving with LiFePO4 Technology

The EKKO EP20JLi is a full electric walkie pallet jack powered by a 48V Lithium Iron Phosphate (LiFePO4) battery, delivering both powered lifting and powered drive in a compact, maneuverable package. Designed for contractors and trades professionals, it handles the demands of loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing environments. With a 4,400 lb load capacity and a lowered fork height of just 2.95 inches, it slides under standard pallets with ease across a wide range of job site conditions.

Unlike traditional lead-acid powered pallet jacks, the EP20JLi uses a LiFePO4 battery chemistry that is included with the unit along with a charger, eliminating the need for additional procurement. Its robotic-welded steel construction and polyurethane wheels are built to withstand terrain variations, impact, and frequent directional changes that are common in active commercial and industrial settings.

Technical Specifications

Key Features & Benefits

48V Lithium Iron Phosphate (LiFePO4) Battery

The LiFePO4 chemistry provides a stable, high-performance power source suited for the continuous demands of commercial material handling. The 48V/20Ah battery and charger are both included with the unit, so contractors can put the machine to work immediately without sourcing additional equipment.

Full Electric Drive & Lift

Both the drive and lifting functions are fully electric, removing manual effort from transporting and raising loads up to 4,400 lb. This makes the EP20JLi significantly more efficient than semi-electric or manual alternatives when handling repetitive or heavy pallet movements throughout a shift.

Robotic-Welded Steel Construction

The frame is built from high-quality steel using robotic welding processes, producing consistent, high-strength weld joints throughout. This construction approach supports durability under heavy use, directional changes, and the impacts typical of active job sites.

Polyurethane Wheels

Polyurethane wheels provide reliable traction and durability across the varied floor surfaces found in warehouses, loading docks, and manufacturing environments. They resist wear and are well suited to the frequent starts, stops, and turns that characterize pallet jack work.

Pinwheel Capability

Pinwheel capability allows the unit to rotate within a tight radius, which is essential for maneuvering in confined spaces such as stock rooms, truck bays, and crowded warehouse aisles. This improves operational efficiency where floor space is limited.

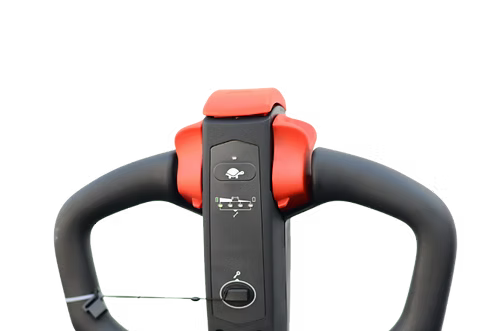

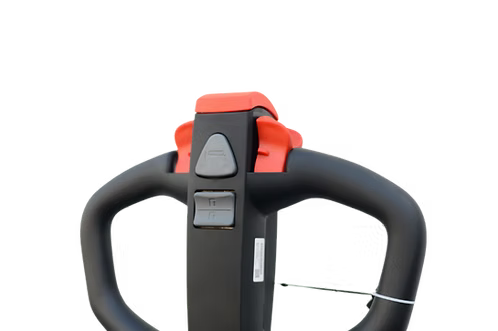

Ergonomic Handle and Controls

The ergonomic handle and control layout reduces operator fatigue during extended use, which is a practical consideration for contractors and warehouse teams running the machine through full shifts. Intuitive controls support confident operation across different skill levels.

Common Applications

Loading & Unloading Trucks

The low 2.95" lowered fork height and 4,400 lb capacity make the EP20JLi well suited for moving palletized freight on and off truck beds at loading docks and job site deliveries.

Loading Dock Operations

At high-traffic loading docks, the full electric drive reduces operator fatigue and increases throughput compared to manual or semi-electric alternatives, keeping operations moving efficiently.

Stock Room Material Handling

The pinwheel capability and compact walkie format allow the EP20JLi to navigate the tight aisles and confined spaces common in stock rooms and back-of-house storage areas.

Manufacturing Floor Transport

On manufacturing floors where materials and components must be moved frequently between stations, the powered drive and lift reduce manual handling effort and support consistent pallet positioning.

Warehousing

For general warehousing operations, the EP20JLi handles the routine movement and placement of palletized goods with the durability to withstand daily high-cycle use.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Smooth concrete warehouse floors
• Loading dock surfaces
• Manufacturing floor surfaces
• Stock room flooring

Product Documents

• EKKO Lifts Line Card (PDF)

Frequently Asked Questions

Q: Is the battery and charger included with the EP20JLi?
A: Yes. The unit includes one 48V/20Ah Lithium Iron Phosphate (LiFePO4) battery and a charger.

Q: What is the maximum load capacity?
A: The EP20JLi is rated for a maximum load capacity of 4,400 lb.

Q: Does the EP20JLi have pinwheel capability?
A: Yes. The EP20JLi supports pinwheel operation, allowing tight-radius turns for use in confined spaces.

Q: What warranty does the EP20JLi carry?
A: It is covered by a 3 Years Limited Warranty.
