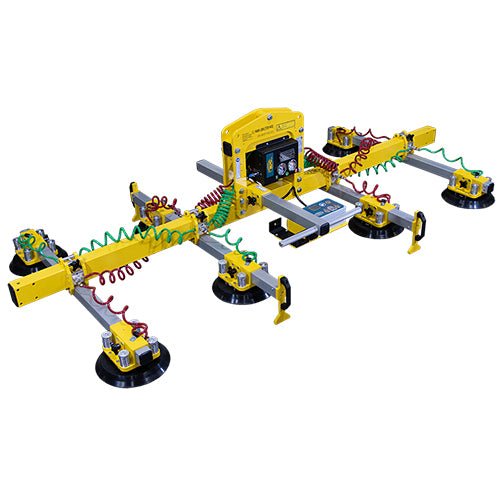

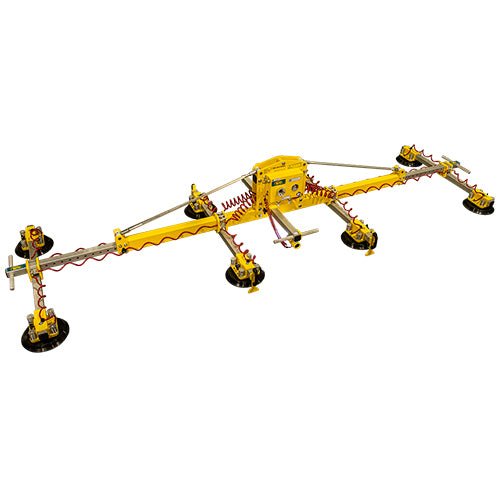

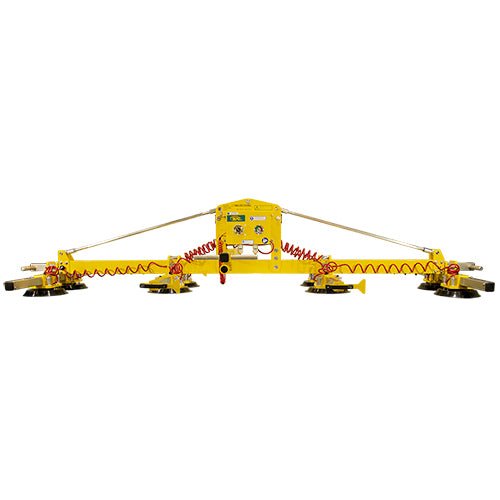

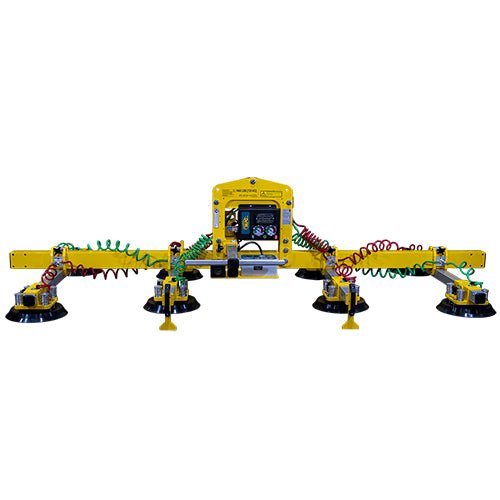

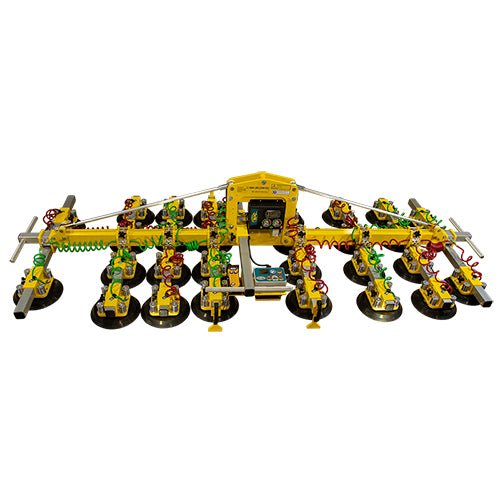

Flexr Lifter Series

SKU

Original price $9,631.00 - Original price $9,996.00
Original price
Call To Order
CTO - $9,996.00
Current price Call To Order
Choose a Options
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
Please note: Wood's Powr-Grip products are made to order and have an expected lead time of 5-6 weeks. Please contact us at +1 (800) 342-3876 for additional information.

This versatile lifter is great for production and fabrication facilities, especially when handling large sheet metal and other goods.

Alternative pad frame options can boost the capacity of this lifter to an impressive 5,600 lbs [2,540 kg]!

Vacuum pads on this Powr-Grip® model can be repositioned quickly and easily for lifting a wide array of metal and other sheet materials.

Multiple Ways to Adjust

Choose where to slide your lifter’s pad arms, pad mounts and center control handle. Then secure them in place for a truly customized lifter configuration!

Stock# Model# Description Load Capacity Power
97801 FLEXR8HV11AIR
8-pad air-powered vacuum lifter.

Specially designed to handle sheet metal.

1600 lbs [725 kg] Air
97802 FLEXR8HV11AC3
SPECIAL ORDER:

8-pad corded, electrical outlet-powered vacuum lifter.
Specially designed to handle sheet metal.

1600 lbs [725 kg] AC
97803 FLEXR8HV11DC3
SPECIAL ORDER:

8-pad battery-powered vacuum lifter.
Specially designed to handle sheet metal.

1600 lbs [725 kg] DC

Spring-Loaded Parking Stands

No tools are necessary to use these compact, built-in stands whenever you need to set the lifter down.

Choice of Power Systems

Whether you need AC or compressed air power to integrate with existing facilities or DC power for cord-free operation, we have a power system to work for you!

Available Power Systems

Models

FLEXR8HV11 (Standard)

FLEXRL8HV11 (Optional)

1,600 lbs [726 kg]

215 lbs [98 kg] with Air power system 225 lbs [102 kg] with AC power system 245 lbs [111 kg] with DC power system

Maximum: 48" x 154-1/4" [122 cm x 392 cm] Minimum: 22-1/4" x 114-1/4" [57 cm x 290 cm]

Flat to flat

8 /10" [25 cm] nominal diameter, lipped (Model HV11)

Maximum Load Capacity

1,600 lbs [726 kg]

185 lbs [84 kg] with Air power system 195 lbs [88 kg] with AC power system 215 lbs [98 kg] with DC power system

Maximum: 48 x 107" [122 cm x 272 cm] Minimum: 22-1/4" x 54" [57 cm x 137 cm]

Lifter Weight (Approximate)

Standard Pad Spread

Load Movement

Number/Size of Pads

Air (venturi) power system (FLEXR[L]8HV11AIR)

Standard Operating Power

Compressed air, 80-150 psi [550-1035 kPa] line pressure
Single-stage venturi type, 5 SCFM [142 liters/min] nominal airflow @ 80 psi [550 kPa] 8 seconds (approx.)/ 4 seconds (approx.)

12 volts DC, 5.5 amps
Diaphragm type, 2.5 SCFM [71 liters/min] nominal airflow 8 seconds (approx.) / 8 seconds (approx.)

120 volts AC, 50/60 hertz, 2 amps 240 volts AC, 50/60 hertz, 1 amp

Diaphragm type, 2.5 SCFM [71 liters/min] nominal airflow 8 seconds (approx.) / 8 seconds (approx.)
