Full Powered Electric Straddle Stacker - 138" Lift Height

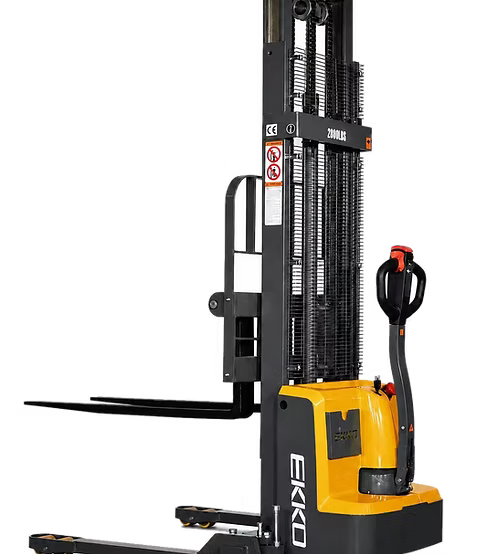

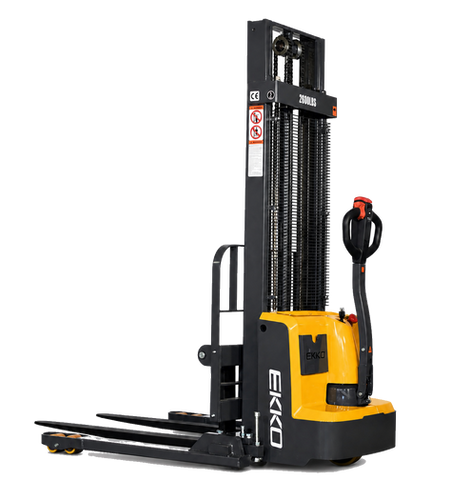

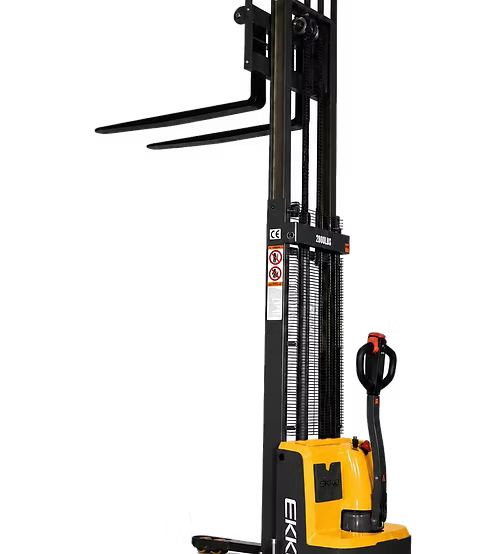

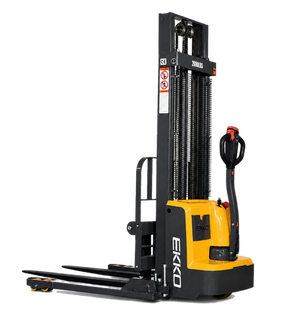

EKKO EB13E-138 Full Powered Electric Straddle Stacker — 2,800 lb Capacity with 138" Lift Height

The EKKO EB13E-138 is a fully powered electric straddle stacker engineered for demanding material handling environments where versatility and reliability are critical. Combining the functionality of a forklift, reach truck, and walkie stacker in a single machine, it is purpose-built for contractors and trades professionals operating in loading docks, stock rooms, manufacturing floors, and warehousing applications. With a 2,800 lb load capacity and a 138" raised height, it handles a wide range of heavy lifting tasks with confidence.

Unlike semi-electric or manual-drive alternatives, the EB13E-138 features both a 24V center drive motor and a 24V lift motor, delivering fully powered operation for both travel and lifting. Its adjustable forks (8.3"–33.5") and adjustable straddle legs (45.7"–59.1") provide the flexibility needed to handle varied pallet sizes and aisle configurations across different job site conditions.

Technical Specifications

Key Features & Benefits

Fully Powered Drive and Lift

Both the drive and lift functions are motor-powered — a 24V center drive motor handles travel while a dedicated 24V lift motor manages load elevation. For contractors moving heavy loads across a warehouse floor or up to elevated racking, this eliminates operator fatigue associated with manual-drive stackers and allows for sustained productivity across a full shift.

Curtis Instrument Controller

The industry-recognized Curtis Instrument Controller provides precise, programmable control over drive and lift functions. This level of control helps operators manage speed and responsiveness in tight spaces such as loading docks and stock rooms, reducing the risk of impact damage to loads or racking.

Adjustable Forks and Straddle Legs

Fork width adjusts from 8.3" to 33.5" and the straddle legs adjust from 45.7" to 59.1", accommodating a wide range of pallet sizes and aisle widths. This built-in adjustability reduces the need for multiple machines to handle different load configurations on the same job site.

High-Strength Steel Construction with Robotic Welding

The frame is constructed from high-quality steel using robotic welding for consistent, reliable weld integrity throughout. This construction approach is designed to withstand impact, directional changes, and demanding usage conditions found in manufacturing and warehousing environments.

Polyurethane Wheels

Polyurethane wheels deliver durability across the variety of floor surfaces commonly encountered in warehouses and loading dock areas. They resist wear and provide reliable traction without marking or damaging finished concrete floors.

Ergonomic Handle and Controls

The ergonomic handle and control layout is designed for operator comfort during extended use. Intuitive control placement supports efficient operation, particularly in repetitive loading and unloading cycles.

Common Applications

Loading and Unloading Trucks

With a 2,800 lb capacity and fully powered drive, the EB13E-138 is well-suited for moving palletized freight on and off delivery trucks at loading docks.

Loading Dock Operations

The adjustable straddle legs and fork width allow the machine to adapt to varying pallet sizes and dock configurations, streamlining throughput in high-cycle dock environments.

Warehouse Racking and Retrieval

A 138" raised height enables operators to stock and retrieve loads from elevated racking positions typical in warehousing and distribution operations.

Manufacturing Floor Material Handling

The combination of powered drive and lift with durable steel construction makes the EB13E-138 appropriate for repetitive intra-facility material movement on manufacturing floors.

Stock Room Inventory Management

The compact straddle stacker form factor and adjustable legs allow it to navigate stock room aisles and handle a range of product storage configurations.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized boxed goods
• Palletized bulk materials
• Smooth and sealed concrete floors
• Warehouse finished flooring
