Full Powered Electric Straddle Stacker, Lead Acid with 138" Lift Height

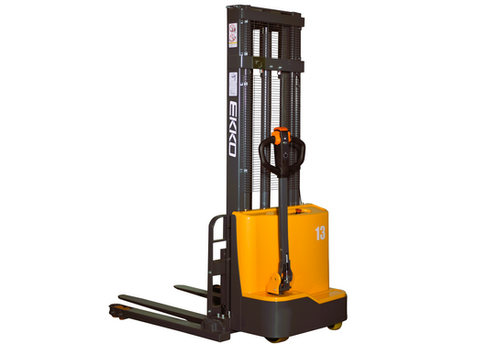

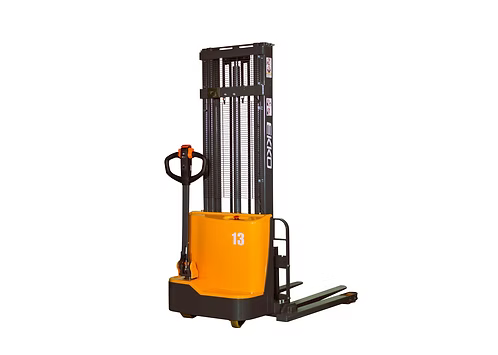

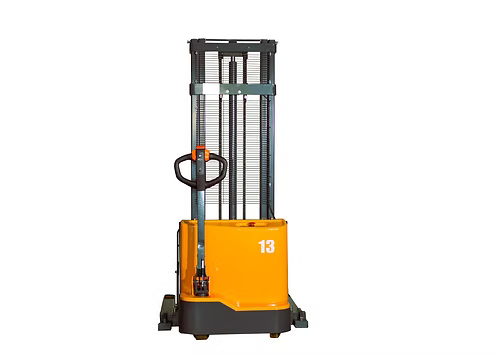

EKKO EB13C-138 Electric Straddle Stacker – 2,800 lb Capacity, 138" Lift Height

The EKKO EB13C-138 Full Powered Electric Straddle Stacker is a versatile material handling solution that combines the capabilities of a forklift, reach truck, and walkie stacker into a single unit. Designed for contractors and trades professionals, it handles loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing applications. With a 2,800 lb load capacity and a raised height of 138", it delivers the vertical reach and lift power required for demanding jobsite and warehouse environments.

Unlike a standard walkie stacker, the EB13C-138 features fully powered drive and lift, eliminating manual pushing and reducing operator fatigue on long shifts. Its adjustable forks and legs accommodate a wide range of pallet sizes and racking configurations, making it adaptable across multiple applications without requiring additional equipment.

Technical Specifications

Key Features & Benefits

Full Powered Drive and Lift

The EB13C-138 is fully electric for both drive and lift functions, meaning operators are not required to manually push or pull the unit. This reduces physical strain on operators and increases efficiency across full workdays on busy job sites or in warehouse environments.

Curtis Instrument Controller

The industry-recognized Curtis Instrument Controller provides precise, reliable management of drive and lift operations. This controller is known for smooth response and durability, giving operators confident control over speed and lift functions in tight spaces.

Adjustable Forks and Legs

With fork width adjustable from 8.6" to 32.1" and leg width adjustable from 35.4" to 51.2", this stacker accommodates a broad range of pallet sizes and racking dimensions. This flexibility reduces the need for multiple machines to handle varied load configurations.

High-Quality Steel Construction

The unit is built from high-quality steel designed to withstand terrain variation, repeated use, impact, and directional changes. This durability makes it a reliable long-term investment for contractors who need equipment that holds up under consistent, demanding use.

Polyurethane Wheels

Polyurethane wheels provide durability and floor protection across a variety of surfaces encountered in warehouses, manufacturing floors, and loading dock environments. They maintain traction and resist wear under heavy load cycles.

Ergonomic Handle and Controls

The ergonomic handle and control layout is designed to reduce operator fatigue during extended use. Intuitive control placement allows operators to manage drive and lift functions efficiently without unnecessary reaching or awkward positioning.

Common Applications

Loading and Unloading Trucks

The EB13C-138's 2,800 lb capacity and fully powered drive make it well-suited for moving palletized loads on and off trucks at loading docks or ground level.

Loading Dock Operations

Its straddle leg design and adjustable forks allow it to operate efficiently in the constrained space of a loading dock, where maneuverability and precise lift control are critical.

Stock Room Management

With a 138" raised height and narrow straddle profile, the EB13C-138 can place and retrieve loads on elevated stock room shelving, maximizing vertical storage utilization.

Manufacturing Floor Material Handling

The unit's durable steel construction and polyurethane wheels allow it to handle the varied terrain and high-cycle demands of an active manufacturing floor environment.

Warehousing

Adjustable legs and fork widths enable the stacker to work across standard warehouse racking systems, making it a versatile single-machine solution for pallet movement and storage.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized construction materials
• Boxed and crated goods
• General warehoused inventory and stock
