Full Powered Fork Over Stacker with 118" Raised Height

EKKO EB13CD Electric Fork Over Stacker – 2800 lb Capacity, 118" Raised Height

The EKKO EB13CD is a full-powered electric fork over stacker engineered to combine the functionality of a forklift, reach truck, and walkie stacker in a single unit. Designed for contractors and warehouse professionals, it delivers a 2800 lb load capacity with a raised height of 118", making it well-suited for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing environments. The unit is driven by a 24V lift motor powered by dual 12V/85Ah lead acid batteries with an internal charger for convenient on-site recharging.

Unlike conventional walkie stackers, the EB13CD features a fork-over design with fixed legs and 45.28" forks, allowing the forks to straddle and pass over pallet base boards without requiring a specialized pallet. Its steel construction with robotic welding delivers consistent weld quality and structural durability to withstand demanding usage, directional changes, and varied terrain conditions.

Technical Specifications

Key Features & Benefits

Fork Over Design with Fixed Legs and Forks

The fork-over configuration allows the forks to extend over and straddle standard pallet legs, eliminating the need for entry pockets and expanding compatibility with a wider range of pallet types. Fixed legs and forks provide a stable, predictable geometry that simplifies operator control in tight spaces such as stock rooms and loading docks.

24V Powered Lift with Dual 12V/85Ah Battery System

The 24V lift motor paired with two 12V/85Ah batteries provides consistent lifting performance across a full work shift. The internal charger means the unit can be recharged directly on-site without requiring a separate charging station, reducing downtime between uses.

Steel Construction with Robotic Welding

The all-steel frame is assembled using robotic welding, which ensures uniform weld quality and structural integrity across every unit. This construction approach is built to withstand impact, repeated directional changes, and heavy-duty daily use on manufacturing floors and in warehousing applications.

Polyurethane Wheels

Polyurethane wheels provide durability on hard indoor surfaces such as concrete and warehouse flooring while resisting flat-spotting and debris contamination. They deliver smooth, controlled movement when maneuvering loaded pallets across loading docks and stock room aisles.

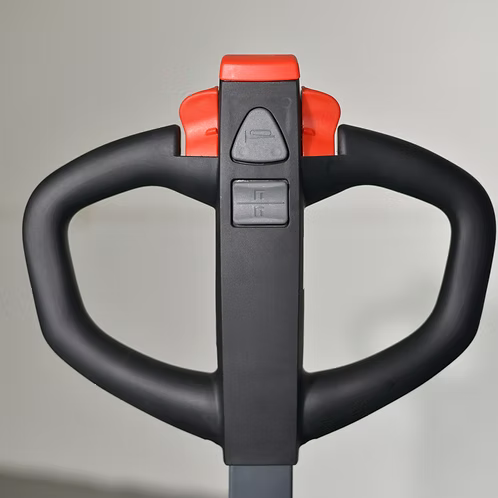

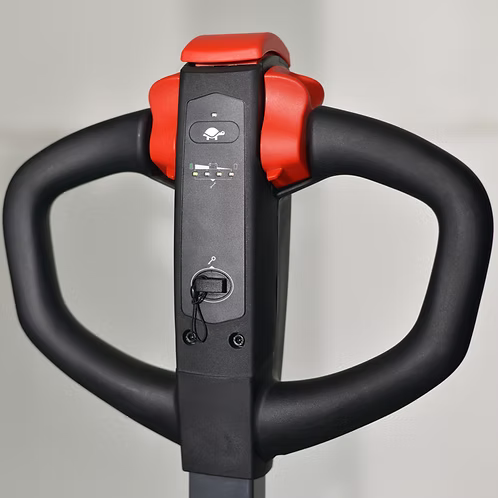

Ergonomic Handle and Controls

The ergonomic handle and operator controls are designed to reduce fatigue during extended use, supporting operator efficiency on busy warehouse and manufacturing floors. Intuitive control placement allows the operator to maintain focus on the load and surroundings.

Common Applications

Loading and Unloading Trucks

The 2800 lb capacity and 118" raised height make the EB13CD effective for transferring palletized loads between truck beds and ground level at loading docks.

Loading Dock Operations

The fork-over design and compact walkie configuration allow operators to work efficiently in the constrained spaces typical of loading dock environments.

Stock Room Material Handling

Fixed forks and stable leg geometry support safe pallet stacking and retrieval in stock rooms where aisle space and clearance are limited.

Manufacturing Floor Material Movement

The steel construction and polyurethane wheels support reliable operation on manufacturing floors where durability and consistent performance under repeated use are required.

Warehousing and Pallet Stacking

With a raised height of 118", the EB13CD can stack palletized loads at elevated rack heights commonly found in warehouse storage configurations.

Compatible Materials

• Standard palletized loads up to 2,800 lb

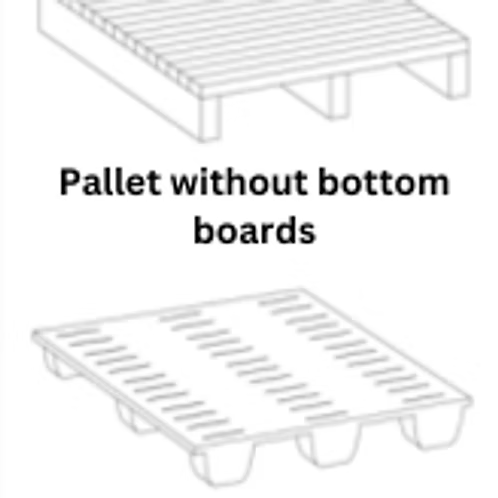

• Wood pallets (standard stringer and block pallet types compatible with fork-over design)
• Boxed and crated goods on pallets
• Hard indoor surfaces: concrete, sealed warehouse floors, loading dock surfaces
