Full Powered Straddle Stacker EB16EA with 216" Lift Height

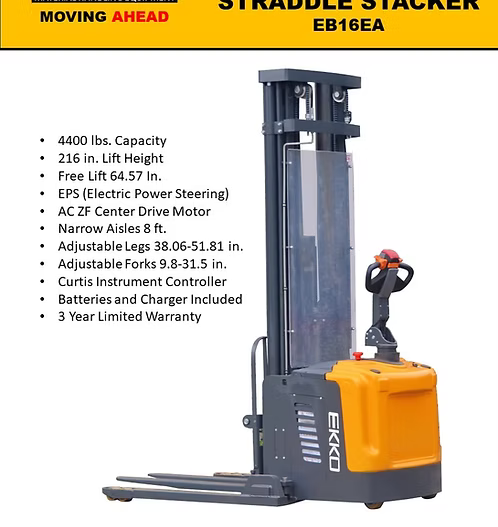

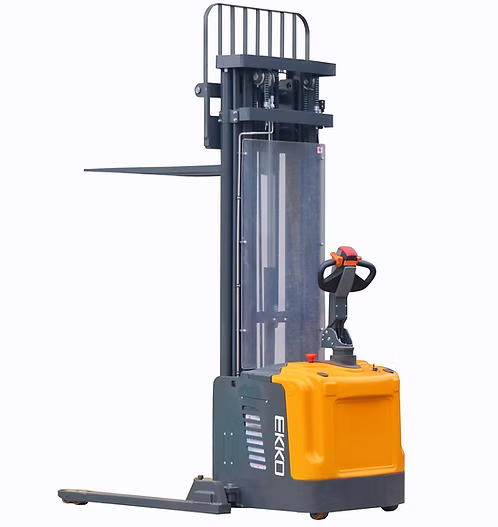

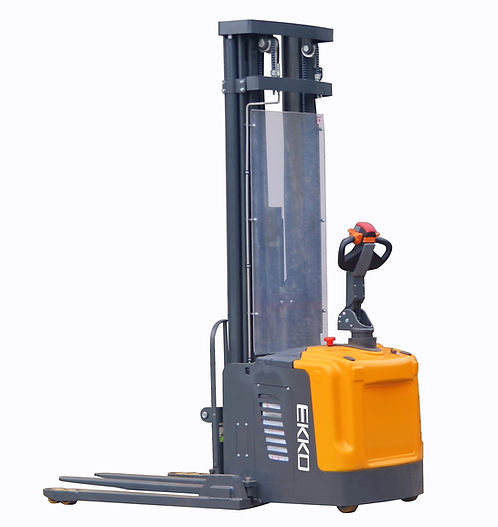

EKKO EB16EA Full Powered Electric Straddle Stacker — 4,400 lb Capacity, 216" Lift Height

The EKKO EB16EA is a full-powered electric straddle stacker engineered to combine the functionality of a forklift, reach truck, and walkie stacker into a single versatile machine. Built for contractors and trades professionals operating in warehousing, manufacturing, and distribution environments, it handles demanding material movement tasks with a 4,400 lb load capacity and a raised height of 216". Its triple mast design and 76.25" free lift make it equally capable in confined spaces and open floor applications.

Unlike standard walkie stackers, the EB16EA features a 24V Center AC Drive Motor with EPS (Electric Power Steering) and a Curtis Instrument Controller, delivering the responsive, low-fatigue operation typically associated with full sit-down forklifts. Adjustable forks (9.8"–31.5") and adjustable legs (38.06"–51.8") provide compatibility across a wide range of pallet sizes and load types without the need for additional attachments.

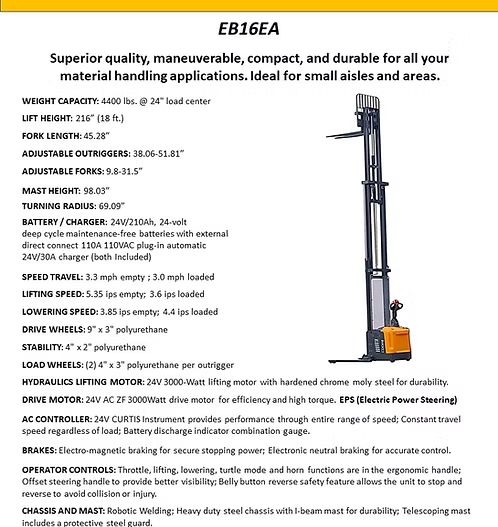

Technical Specifications

Key Features & Benefits

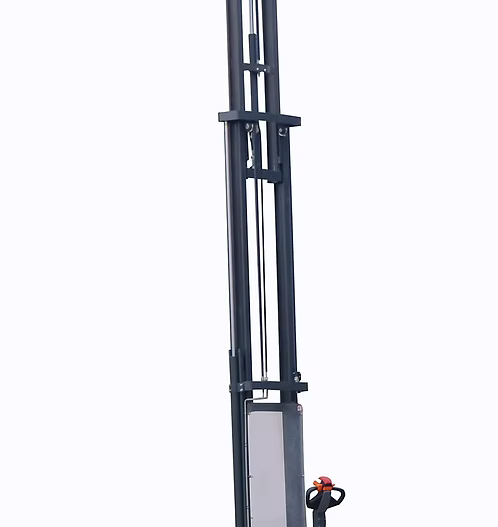

Triple Mast with 76.25" Free Lift

The triple mast configuration allows the EB16EA to reach a full 216" raised height while the 76.25" free lift lets operators raise loads without extending the mast — critical in low-clearance environments such as trailers, loading docks, and mezzanine areas. This expands usable vertical storage range without requiring facility modifications.

Electric Power Steering (EPS)

EPS reduces operator fatigue during extended shifts by minimizing the physical effort required to maneuver the machine, especially during repeated turning cycles in tight aisles or busy stockrooms. For contractors managing high-volume material movement, this translates to sustained productivity throughout the workday.

24V Center AC Drive Motor with Curtis Instrument Controller

The AC drive motor paired with a Curtis Instrument Controller delivers precise speed and directional control, supporting confident operation across varied terrain, directional changes, and load conditions. Curtis controllers are an industry-recognized platform known for reliable performance in demanding material handling applications.

Adjustable Forks and Legs

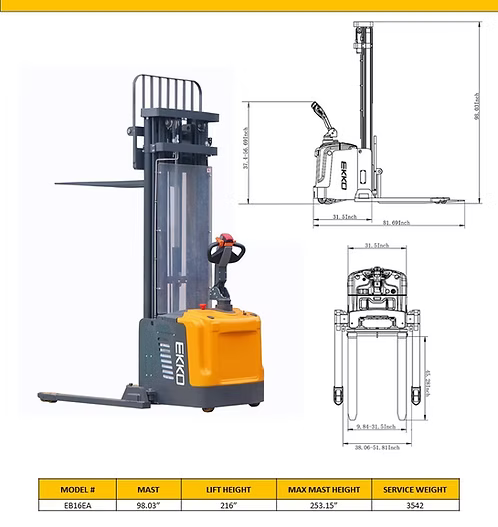

Fork width adjusts from 9.8" to 31.5" and straddle legs adjust from 38.06" to 51.8", allowing the EB16EA to accommodate a wide range of pallet sizes and load configurations without secondary tooling. This flexibility is particularly valuable in mixed-inventory environments where standardized pallet sizing is not guaranteed.

Steel Construction with Robotic Welding

The EB16EA is built from high-quality steel using robotic welding processes, producing consistent, high-strength weld joints throughout the frame. This construction approach is designed to withstand repeated impact, directional changes, and the rigors of daily industrial use.

Ergonomic Handle and Controls

The ergonomic handle and control layout are designed to reduce strain during operation, supporting operator comfort during long or repetitive work cycles. Combined with EPS, the control interface is suited for operators managing continuous loading and unloading tasks.

Common Applications

Loading and Unloading Trucks

The EB16EA's free lift capability and adjustable legs make it well-suited for moving loads in and out of trailers where overhead clearance is limited and floor space is constrained.

Loading Dock Operations

At loading docks, the machine's 4,400 lb capacity and triple mast provide the lift range and structural strength needed to handle full pallet loads efficiently during receiving and shipping operations.

Stockroom Material Handling

The adjustable forks and straddle legs allow the EB16EA to work with varying pallet types commonly found in stockroom environments, while EPS supports nimble maneuvering in tighter aisles.

Manufacturing Floor Logistics

On manufacturing floors where materials must be staged, relocated, or elevated to workstation height, the EB16EA's 216" raised height and reliable AC drive motor support consistent throughput across shifts.

Warehousing and Rack Storage

The 216" lift height and triple mast design enable operators to place and retrieve loads at elevated rack positions, making the EB16EA a practical solution for facilities utilizing high-bay storage systems.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Varied-width pallet configurations (compatible with 9.8"–31.5" fork spread)
• Loads up to 4,400 lb on smooth and hard industrial floor surfaces
• Polyurethane wheel-compatible surfaces: concrete, asphalt, smooth warehouse flooring

Frequently Asked Questions

Q: What is the maximum lift height of the EB16EA?
A: The EB16EA reaches a maximum raised height of 216" using its triple mast configuration.

Q: Does the EB16EA support operation in low-clearance environments such as trailers?
A: Yes. The 76.25" free lift allows the forks to be raised without extending the mast, making it suitable for use inside trailers and other low-overhead spaces.

Q: What type of motor does the EB16EA use?
A: It uses a 24V Center AC Drive Motor for travel and a 24V Lift Motor for the mast, both managed by a Curtis Instrument Controller.

Q: Are the forks and legs adjustable to fit different pallet sizes?
A: Yes. Fork width adjusts from 9.8" to 31.5" and the straddle legs adjust from 38.06" to 51.8" to accommodate a range of pallet dimensions.

Q: What warranty does the EB16EA carry?
A: The EB16EA is covered by a 3 Year Limited Warranty.
