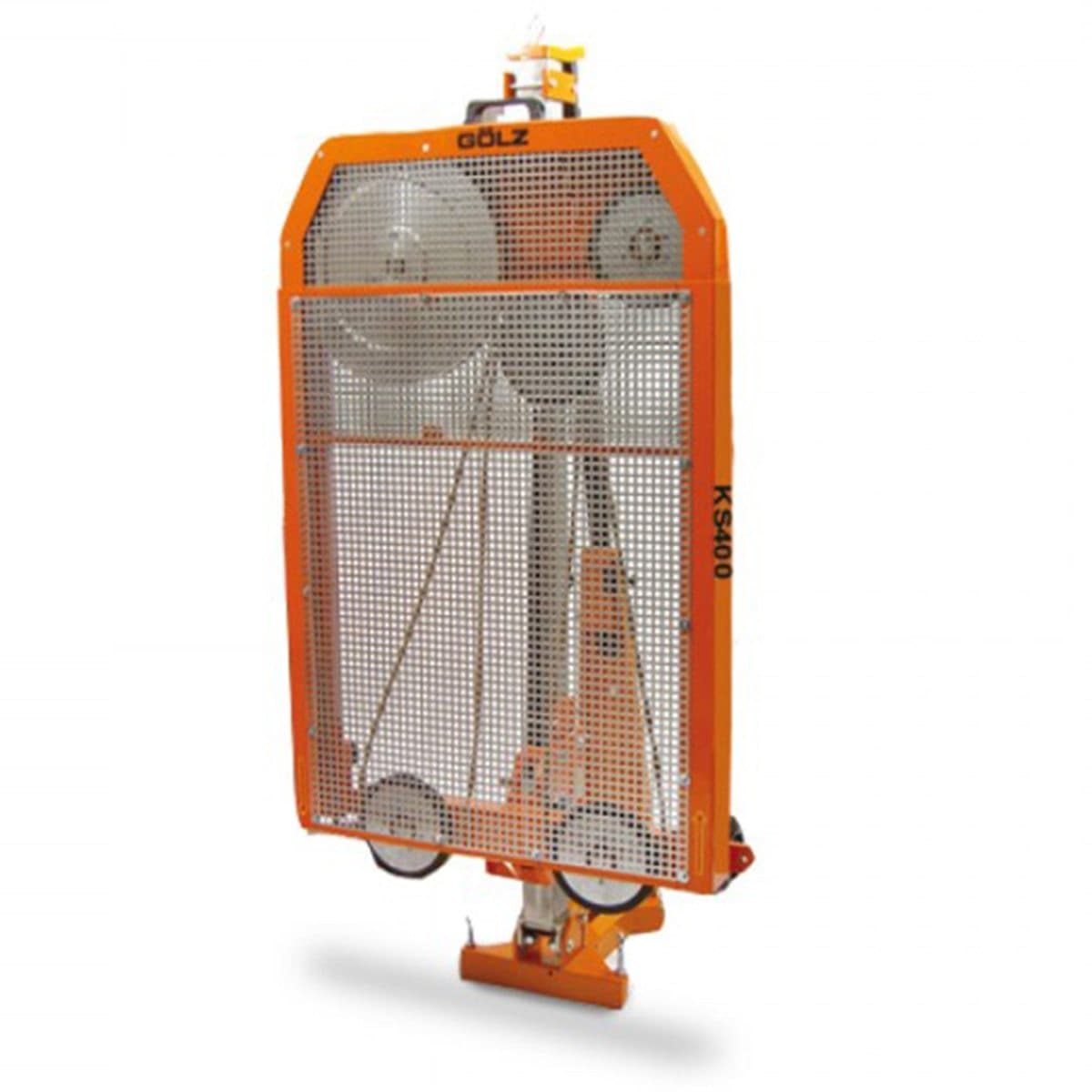

KS400 Portable compact wire saw for small cutting jobs from 16 inches by 16 inches (400x400 mm) to 32 inches by 32 inches (800x800 mm)

Compact wire saw based on core drill rig KB400 for small cutting jobs
Especially designed for small and precise cutting jobs, either dry or wet. Based on the modular Gölz system, the KS400 can be converted to a core drill rig within a few minutes.

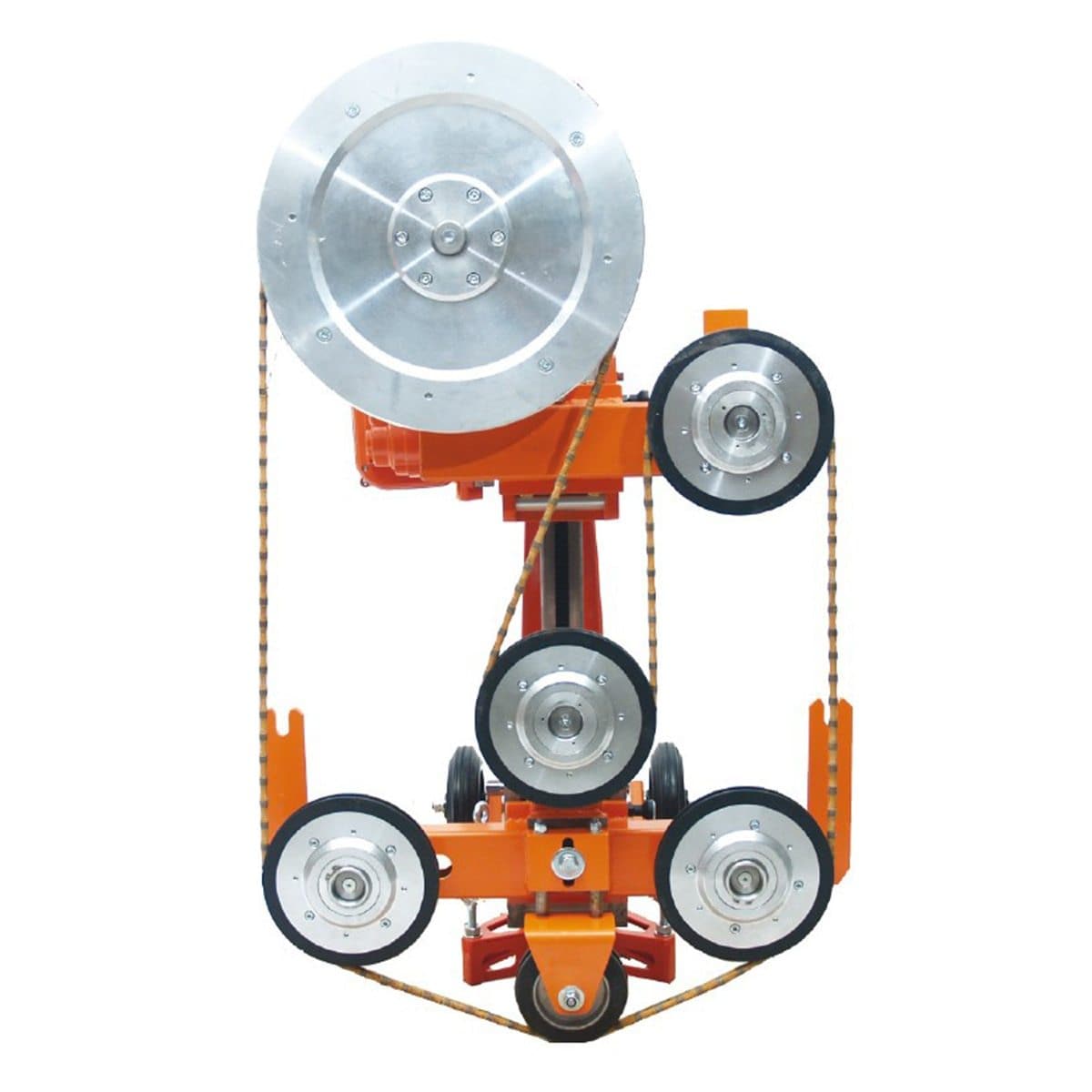

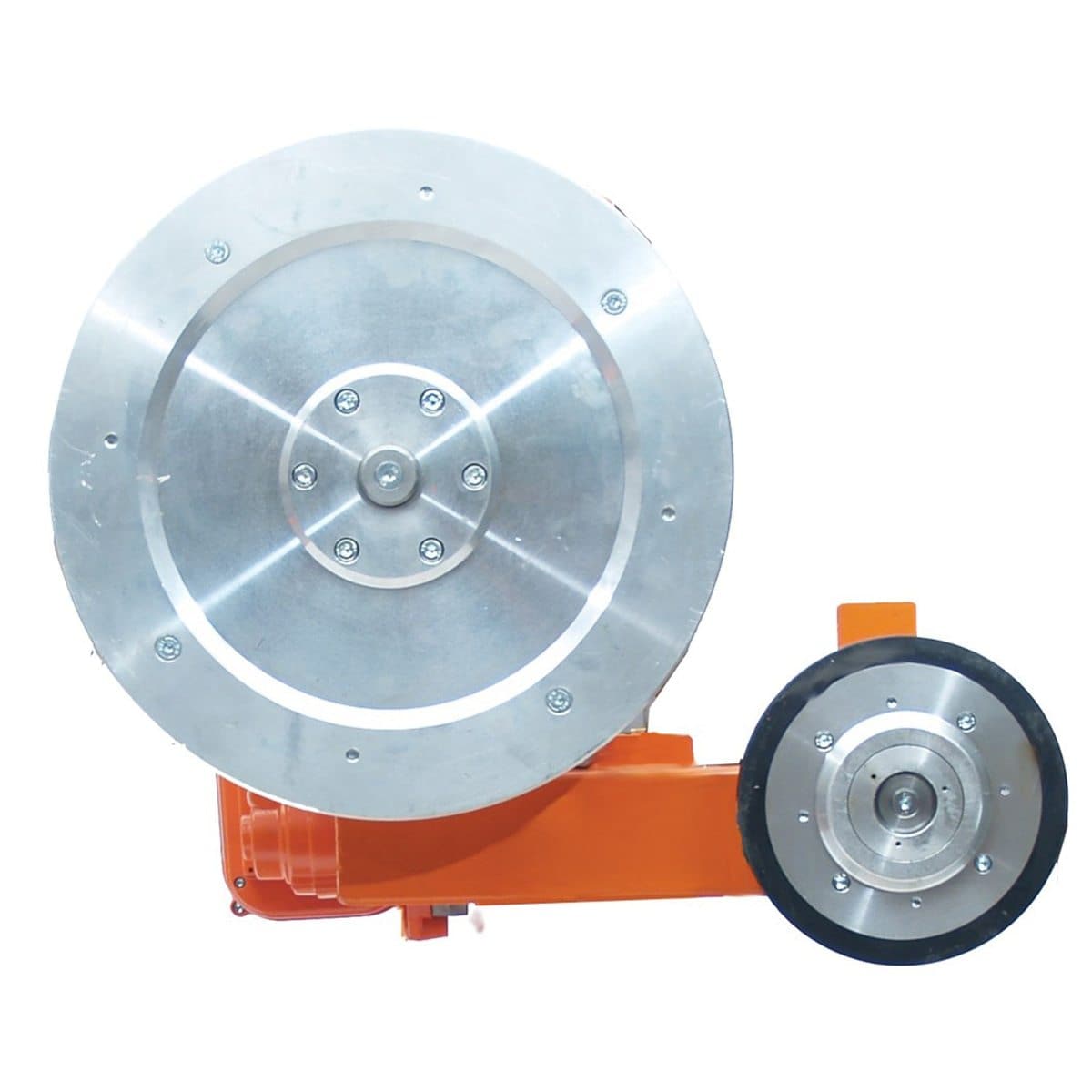

Wire drive:

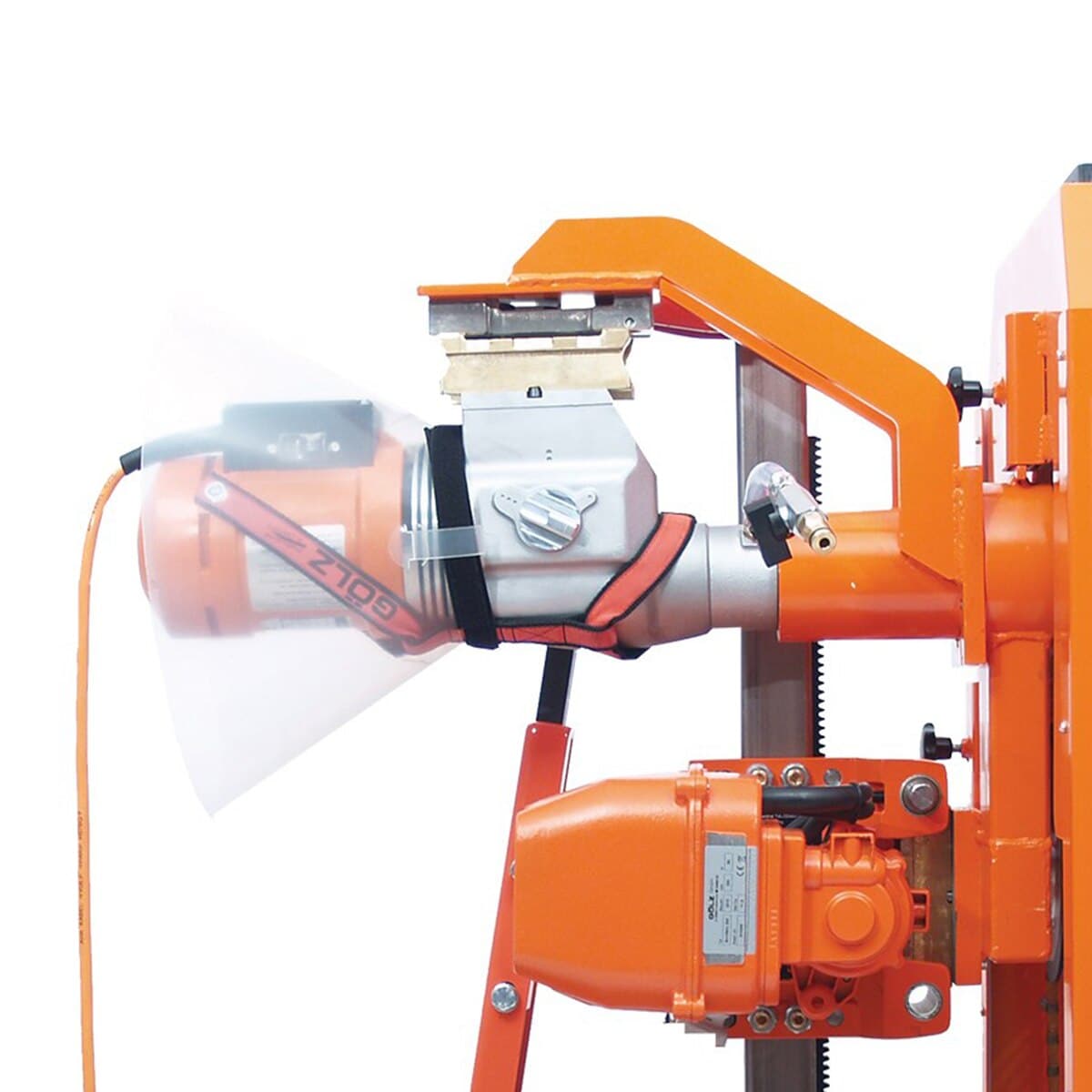

Driven by a single phase, 3,3 kW core drill motor and automatic feeding unit BorMatic80. Good cutting performance in reinforced steel, dry or wet, by using premium 8 mm Gölz diamond wire.

US Standard Metric
Drive electric
Power 4.5 hp 3,3 kW
Wire-storage 95 in. 2,40 meter
Wire-Ø 8 in. 200 mm
Drive-Ø 16 in. 400 mm
Dimensions (LxWxH) 21.65 x 32 x 43 in. 550x810x1100 mm
Weight complete 216 lbs. 98 kg
Order number 0283 400 1000
