Groves Backsplash Package 1

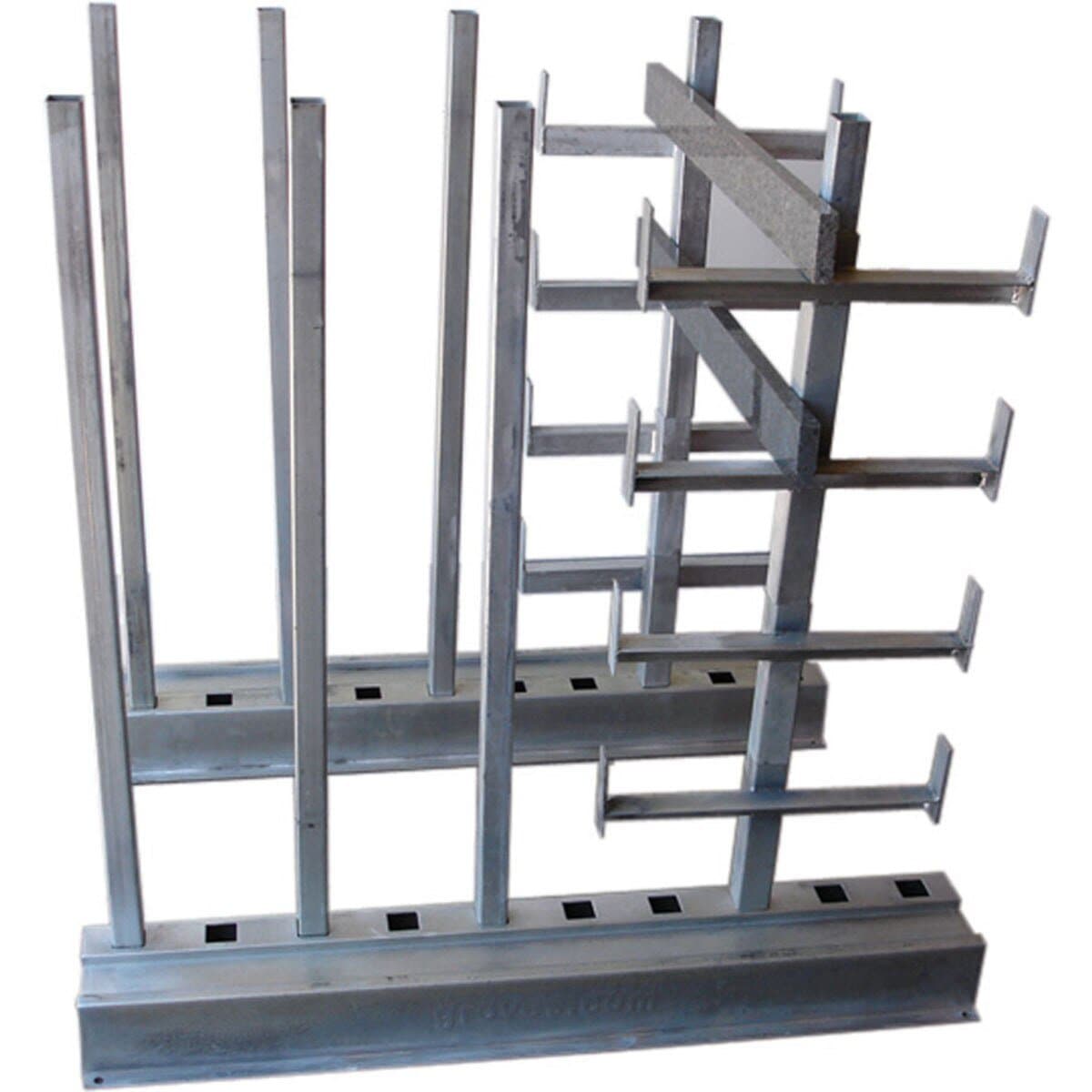

Groves BSBPKG-1 Back Splash Bracket Package

SAFETY WARNING: Use .5" holes located on bottom flange for securing rails to the floor. MAXIMUM WEIGHT ALLOWED PER BUNDLE: 6,000 LBS. (3,000 LBS. PER POST)

Features

• One row with four levels of back splash storage. Three posts on each rail provide two 12" wide sections between the posts for stone storage.
• Parts included in the package: 2 BR-5, 8 BSB-23, 8 SP-60.
• Heavy duty powder coated outside rails are designed with slots to hold 2 x 4.
• Outside rails have 2" square holes spaced 4" apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.
• Note: When assembled the overall usable height of the post is 5.5" less than listed. Example: A 60" post will be 54.5" above the top of the outside rail.
• Rails shipped with 11" connector tube for butting rails together in a straight line.
• Weight: 350 lbs
