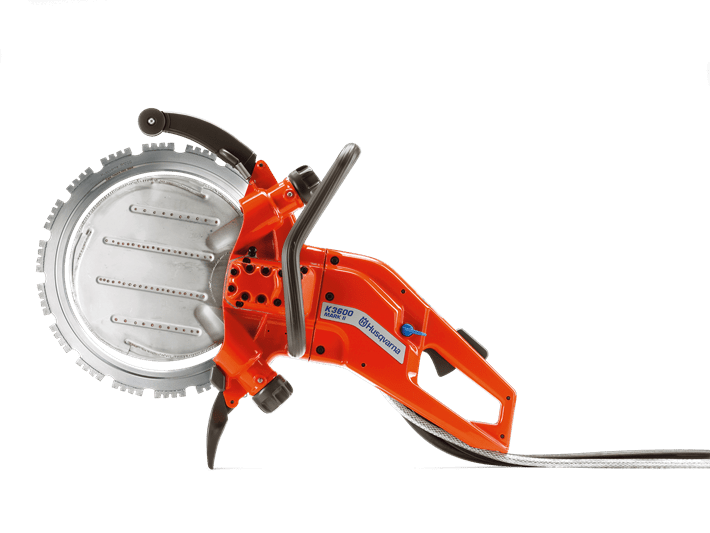

Husqvarna K 3600 MK II Ring Saw

Husqvarna K 3600 MK II Ring Saw

The eccentric rim drive system of hydraulic power cutter K 3600 MK II provides a 10" cutting depth with a 14" blade. It's suitable for a wide variety of applications, such as correcting door and window openings and cutting pipie in installation jobs. It's ideal for working indoors due to no exhaust fumes and low noise levels.

Cutting depth, max - 10.6 in
Blade diameter, max - 14 in



Other Ring and Concrete Hand Saws

Weka TR40 High Cycle Ring Saw

Dragon Ring Saws

Husqvarna K 970 Ring Saw



FEATURES
Want to take a closer look? Learn more about the product in depth by exploring its features and benefits.

Deep cutting
Thanks to the peripheral drive you can cut far deeper than with a traditional power cutter. The cutting depth of 10" is sufficient to cut through a normal wall from one side only.

No fumes and low noise levels
Running a hydraulic cutter means you avoid fumes and high noise levels, so they are ideal for both indoor and outdoor jobs.

Light with high power
Hydraulics is an excellent way to transfer high power without the cutter becoming heavy.

Adjustable front handle
Facilitates maneuvrable cutting

Wet cutting kit
The water adjustment gives efficient dust management and makes operation easier and more efficient.

Adjustment to openings
Cutting for minor adjustments to window and door openings

Blocks, curbstones and pavers
Cutting building blocks, curbstones and garden pavers.

Cast concrete
Cutting cast concrete.

Deep cutting
Irregular deep cutting.

Floors and walls
Regular cutting in floors and walls.

Pipe trenches
Deep cutting in pipe trenches.

Pipes
Pipe cutting.

Engine
Output power (As rated by the engine/motor manufacture)
5.8 hp

Cutting equipment
Cutting depth, max
10.6 in
Blade diameter, max
14 in
Blade thickness, max
0.22 in
Peripheral speed, max
10800 fpm

Dimensions
Product size width
6.89 in
Product size height
16.4 in
Weight
18.3 lbs

Hydraulics
Hydraulic oil flow
10 gal/min
Hydraulic pressure, max
2176 psi

Sound and noise
Sound power level, guaranteed (LWA)
111 dB(A)
Sound pressure level at operators ear
99 dB(A)
Vibrations
Vibrations left/front handle
4.3 m/s²
Vibrations right/rear handle
6.0 m/s²
