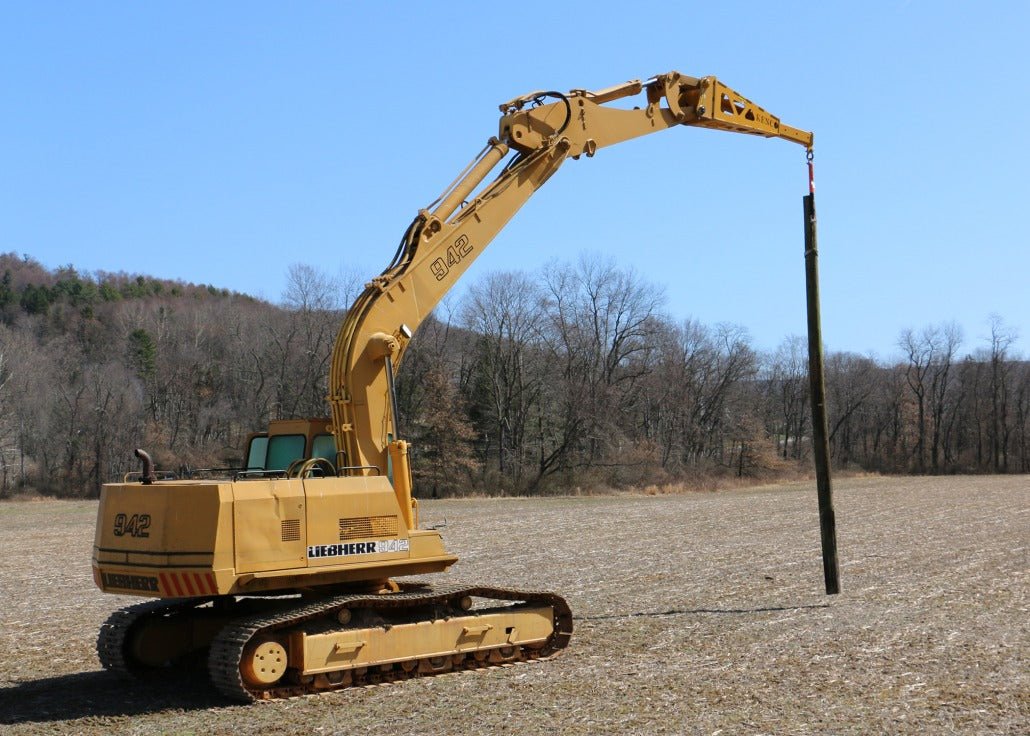

Extend Your Machine’s Reach with the Kenco Jib Boom for Excavators

Kenco Excavator Jib Booms are unique excavator attachments, designed for specific hookup to your machine. Each is made of heavy-duty construction and well suited for precise handling or maneuvering of loads.  Using a Kenco Excavator Jib Boom on an excavator often eliminates the need for overhead or mobile cranes.

COMPLETE LIFTING SOLUTION

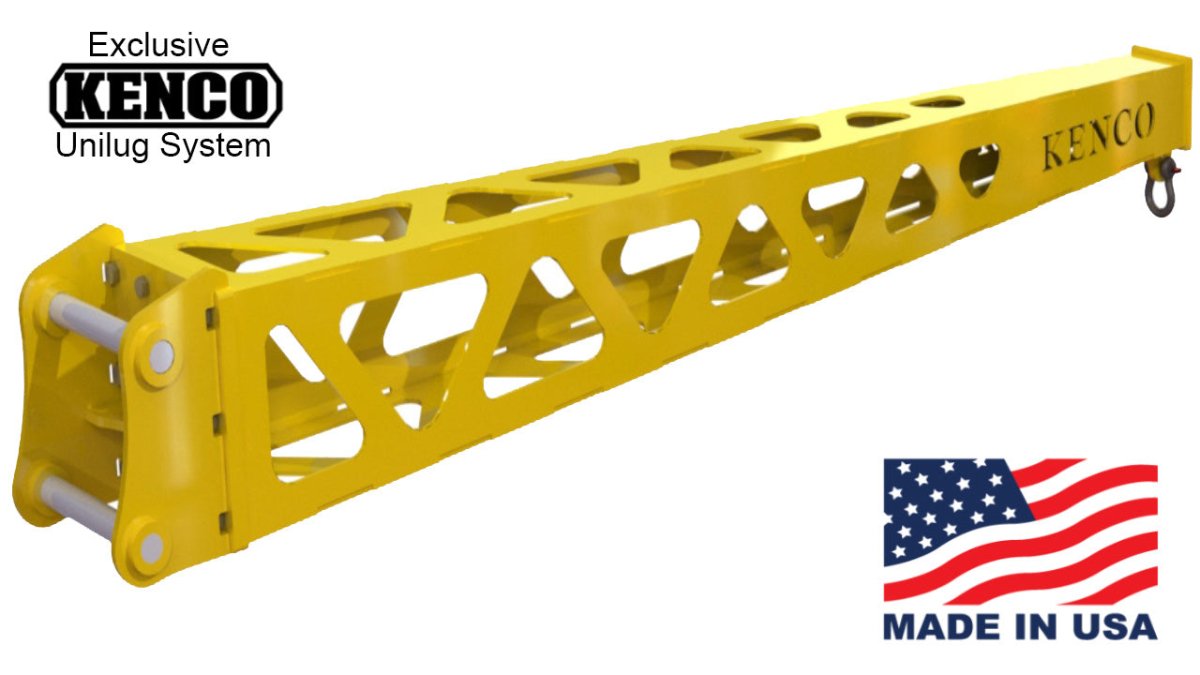

Options include a fixed or manually extendable length. The Jib Boom will come with Kenco’s unique UniLug adapter.

EASILY CONNECT KENCO LIFTERS

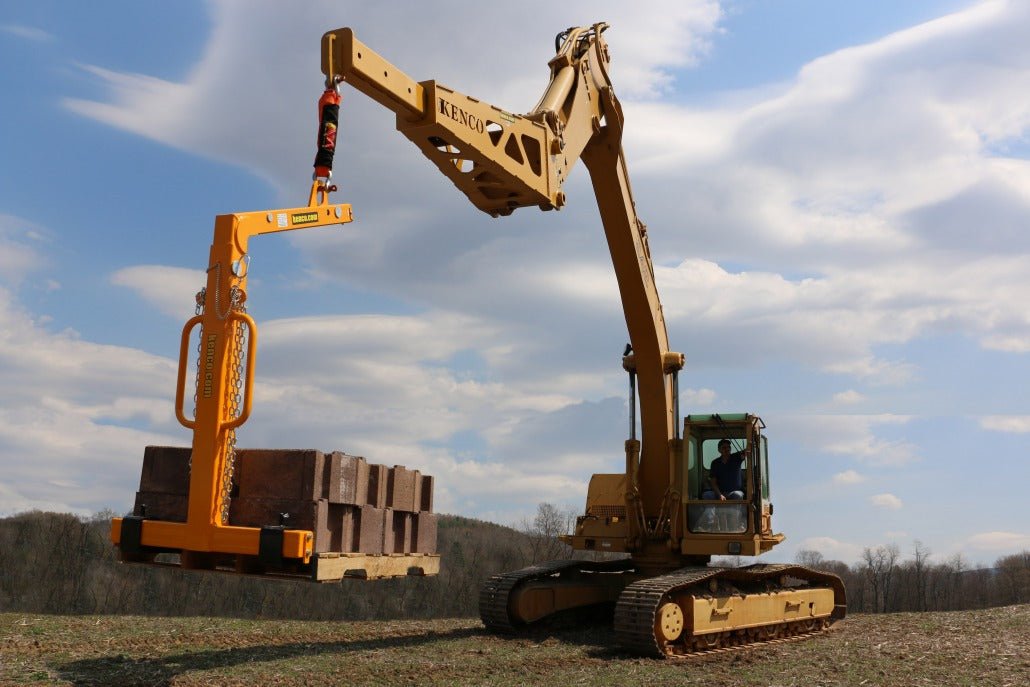

The Wheel Loader/Excavator Jib Boom works with Kenco lifting attachments: including the Barrier Lift, Pipe Lift, Pipe Hook, Rocklift or Multilift. Connect your Kenco lifter and Jib Boom with the RigMax or rigging apparatus of your choice.

Certified lift capacity is based on structural integrity of the Jib Boom only. Actual capacity when installed on machine will vary; check your machine lift specs.

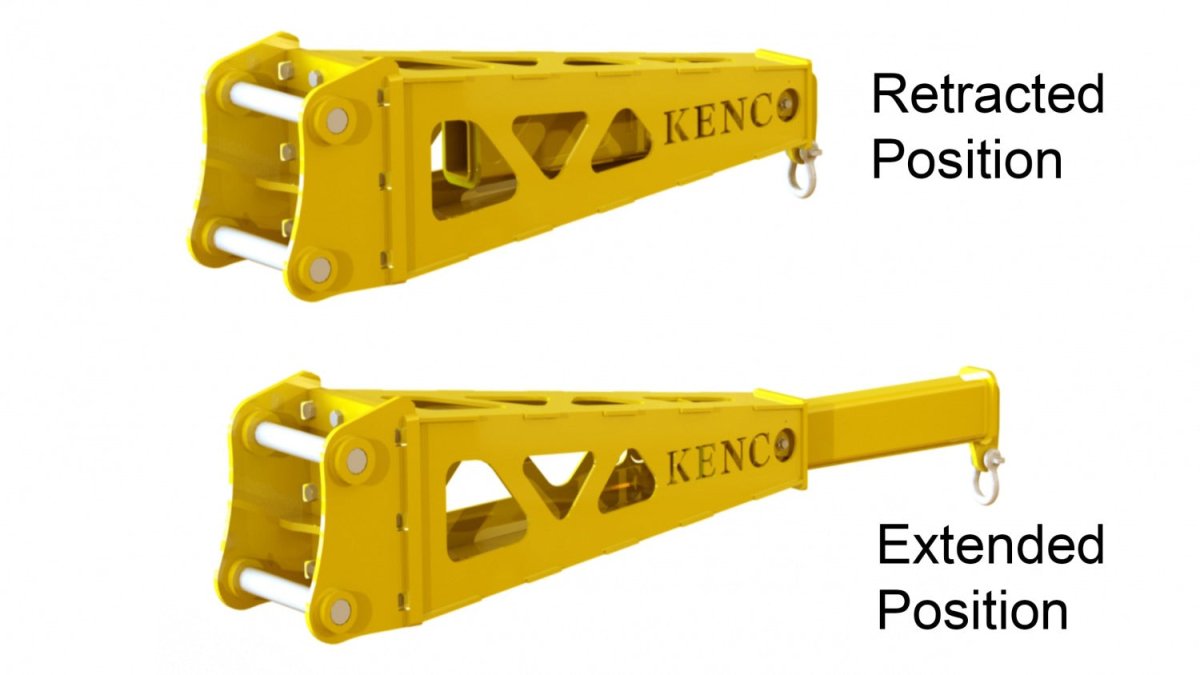

MANUALLY EXTENDABLE

Manually Extendable Jib Booms can be adjusted with the removal of the hitch pin. Place the Jib at waist height, remove pin, extend or retract Jib to the proper length and insert hitch pin.

Always check the machine’s ability and reference the lift chart for proper use. Kenco Jib Boom’s are rated at a certain capacity; it is up to the operator to determine the machine’s ability while using the attachment

*The following chart is an example and is not specific to any particular machine or class. It remains the responsibility of the operator to determine the lifting ability of the machine.


FIXED POSITION

Fixed position Jib Boom extensions are built to order. It will be designed based on the intended purpose of the attachment whether that be farthest distance or heaviest load. Always check the machine’s ability and reference the lift chart for proper use. Kenco Jib Boom’s are rated at a certain capacity; it is up to the operator to determine the machine’s ability while using the attachment

*The following chart is an example and is not specific to any particular machine or class. It remains the responsibility of the operator to determine the lifting ability of the machine.

PRODUCT SKU STANDARD SIZES CAPACITY AT MAX LENGTH
JBBOE30K5 – Jib Boom Extender 60″ Reach 30,000 lbs
JB5K10V2 120″ Reach
5,000 lbs
JB10K10V2 120″ Reach 10,000 lbs
JB10K15 180″ Reach 10,000 lbs


MANUALLY EXTENDABLE JIB BOOM* WITH UNILUG SYSTEM

Manually Extendable Jib Booms can be adjusted with the removal of the hitch pin. Place the Jib at waist height, remove pin, extend or retract Jib to the proper length and insert hitch pin.

Always check the machine’s ability and reference the lift chart for proper use. Kenco Jib Boom’s are rated at a certain capacity; it is up to the operator to determine the machine’s ability while using the excavator crane attachment.


*The following chart is an example and is not specific to any particular machine or class. It remains the responsibility of the operator to determine the lifting ability of the machine.

MODEL DESCRIPTION CAPACITY RATING RANGE
JBE75CT1K7T10 84″ – 120″ Manual Extendable Length 7,500 lb capacity (at 84”)
1,000 lb capacity (at 120”)
JBE10KT35C7T10 84″ – 120″ Manual Extendable Length 10,000 lb capacity (at 84”)
3,500 lb capacity (at 120”)
JBE20KT67.5T12 90″ – 144″ Manual Extendable Length 20,000 lb capacity (at 90”)
6,000 lb capacity (at 144”)
JBE20KT10K7.5T12 90″ – 144″ Manual Extendable Length 20,000 lb capacity (at 90”)
10,000 lb capacity (at 144”)
