Lithium Electric Straddle Stacker - 119" Lift Height

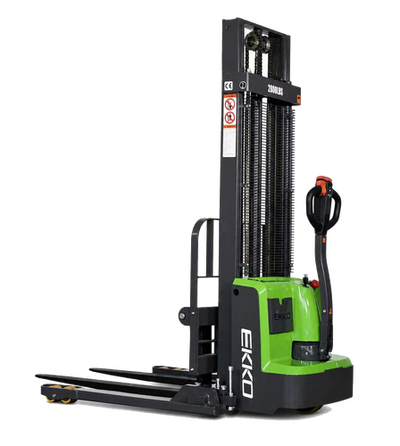

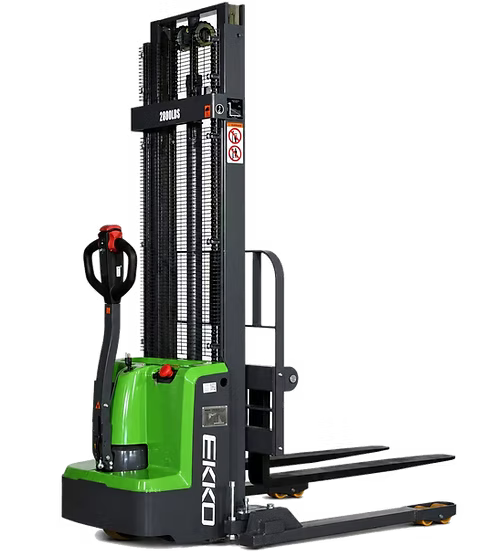

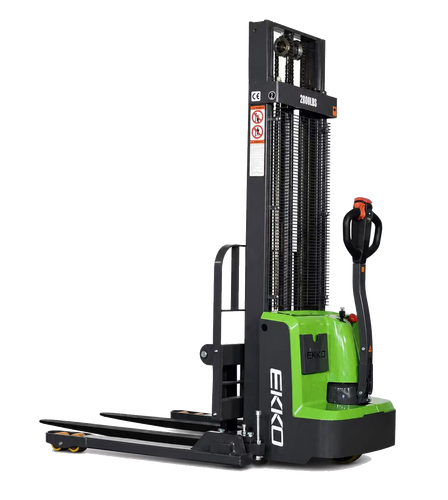

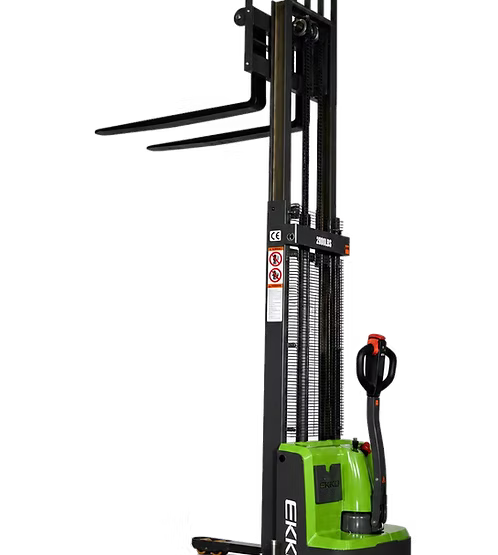

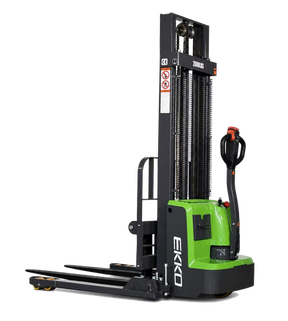

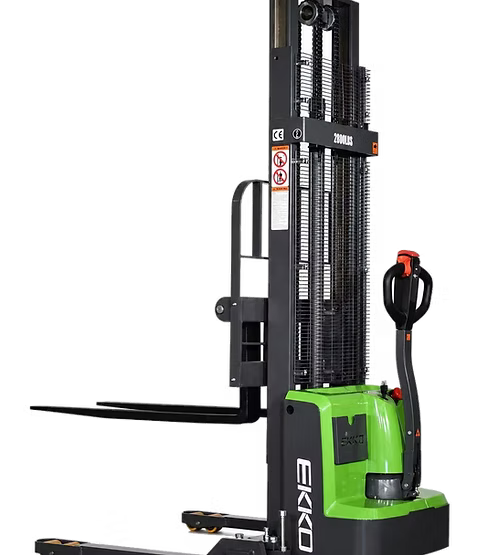

EKKO EB13E-Li Lithium Electric Straddle Stacker — 2800 lb Capacity with 119" Lift Height

The EKKO EB13E-Li is a lithium-powered electric straddle stacker engineered for contractors and warehouse professionals who need the combined functionality of a forklift, reach truck, and walkie stacker in a single machine. Rated for 2,800 lbs with a raised height of 119", it is purpose-built for loading and unloading trucks, navigating loading docks, stocking rooms, and operating on manufacturing floors and in warehousing environments. Its high-quality steel construction with robotic welding ensures structural integrity across demanding daily use cycles.

Unlike traditional lead-acid-powered stackers, the EB13E-Li runs on a 24V / 50Ah lithium battery, delivering consistent power output and eliminating the maintenance overhead associated with lead-acid systems. The machine's adjustable forks (8.3"–33.5") and adjustable legs (45.7"–59.1") provide a level of versatility that fixed-geometry stackers cannot match, allowing operators to adapt to varying pallet sizes and aisle configurations without swapping equipment.

Technical Specifications

Key Features & Benefits

24V / 50Ah Lithium Battery

Lithium chemistry provides stable power delivery throughout the discharge cycle, meaning the machine performs consistently from the first lift of a shift to the last. For contractors running extended hours on job sites or in warehouse operations, lithium also eliminates acid maintenance and the need for separate watering systems.

Curtis Instrument Controller

The Curtis Instrument Controller is an industry-recognized motor control platform used across EKKO's professional equipment lineup. It provides precise drive and lift response, which translates to better load handling control and reduced operator fatigue over a full shift.

Adjustable Forks and Legs

Fork width adjusts from 8.3" to 33.5" and straddle legs adjust from 45.7" to 59.1", allowing the machine to accommodate a wide range of pallet sizes and rack configurations. This reduces the need for multiple machines in facilities that handle varied load footprints.

Steel Construction with Robotic Welding

The frame is built from high-quality steel and assembled using robotic welding processes, which produce consistent, high-strength weld joints throughout the structure. This construction approach is designed to withstand terrain variation, repeated impact, and directional changes inherent to active job sites and warehouse environments.

Polyurethane Wheels

Polyurethane wheels resist wear on hard warehouse and dock surfaces while providing the traction needed for directional changes under load. They are a standard specification for indoor industrial use where floor protection and durability are both priorities.

Ergonomic Handle and Controls

The ergonomic handle and control layout is designed to reduce operator strain during extended use. For contractors and warehouse teams running the machine across full shifts, reduced fatigue contributes directly to safer operation.

Common Applications

Loading and Unloading Trucks

The straddle stacker's 2,800 lb capacity and 45.3" fork length make it well-suited for moving palletized freight on and off delivery trucks at loading docks.

Loading Dock Operations

Its compact walkie-style form factor and adjustable legs allow it to maneuver in the confined spaces typical of loading dock environments.

Stock Room Management

With a raised height of 119" and adjustable fork width, the EB13E-Li can access elevated storage positions in stock rooms without requiring a full-size forklift.

Manufacturing Floor Material Handling

The machine's durable construction and consistent power delivery support repeated lifts and material transfers in manufacturing floor environments where uptime is critical.

Warehousing and Rack Storage

The combination of reach truck-style leg geometry and forklift-level capacity makes it appropriate for placing and retrieving palletized loads in warehouse rack systems.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized boxed goods
• Palletized bagged materials
• Palletized construction materials
• Hard warehouse flooring and concrete surfaces (polyurethane wheel compatible)

Frequently Asked Questions

Q: What is the maximum lift height of the EB13E-Li?
A: The EB13E-Li raises loads to a maximum height of 119".

Q: What type of battery does the EB13E-Li use?
A: It uses a 24V / 50Ah lithium battery, which differs from the lead-acid batteries found in comparable models in the EKKO lineup.

Q: Can the fork width and leg spread be adjusted to fit different pallet sizes?
A: Yes. The forks adjust from 8.3" to 33.5" and the straddle legs adjust from 45.7" to 59.1" to accommodate varying pallet and load footprints.

Q: What warranty does the EB13E-Li carry?
A: The machine is covered by a 3 Year Limited Warranty.

Q: What controller does the EB13E-Li use?
A: It is equipped with a Curtis Instrument Controller, the same controller platform used across multiple models in the EKKO professional equipment range.
