Lithium Electric Straddle Stacker

Lithium Electric Straddle Stacker – 2,800 lb Capacity, 138" Max Lift Height

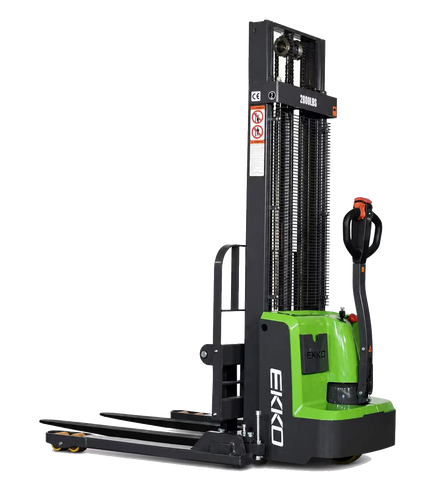

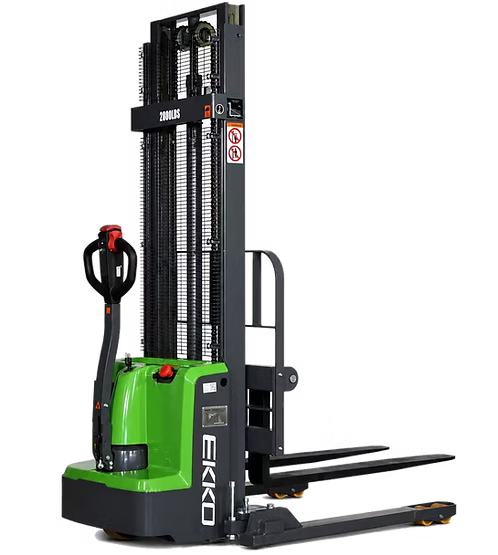

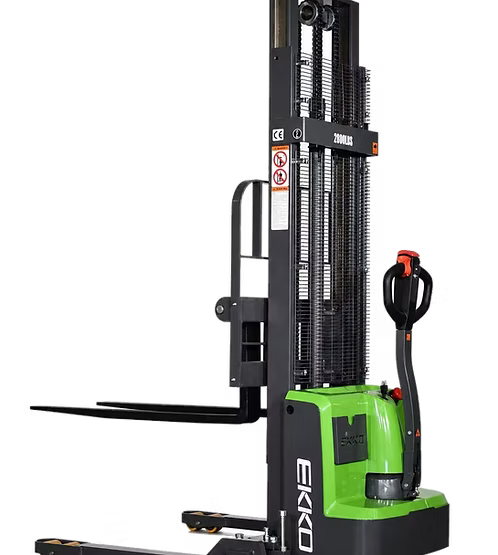

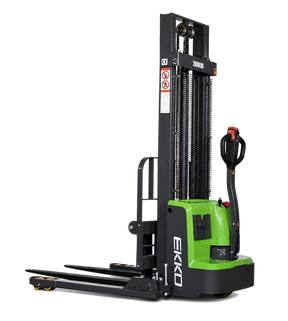

The EKKO EB13E-138Li Lithium Electric Straddle Stacker is a versatile, battery-powered walkie stacker engineered to deliver the combined functionality of a forklift, reach truck, and walkie stacker in a single compact unit. Built for contractors, warehouse operators, and trades professionals, it handles demanding material movement tasks on loading docks, manufacturing floors, stock rooms, and warehouse environments. With a 2,800 lb load capacity and a maximum lifting height of 138 inches, it handles heavy pallet loads across a wide range of commercial and industrial applications.

Unlike conventional lead-acid stacker alternatives, the EB13E-138Li is equipped with a 24V/50Ah lithium battery with an integrated 24V/15A internal charger, eliminating the need for external charging infrastructure and significantly reducing maintenance overhead. The adjustable fork width (8.3–33.5 in) and adjustable straddle legs (45.5–59.1 in) provide genuine flexibility across varying pallet sizes and aisle configurations that fixed-geometry machines cannot match.

Technical Specifications

Key Features & Benefits

Lithium Battery with Internal Charger

The 24V/50Ah lithium battery paired with an onboard 24V/15A charger means operators can charge the unit anywhere a standard outlet is available — no dedicated charging station required. For contractors running multi-shift operations or moving between job sites, this reduces downtime and eliminates the battery swapping logistics associated with lead-acid alternatives.

Adjustable Forks and Straddle Legs

Fork width adjusts from 8.3 to 33.5 inches and the straddle legs span 45.5 to 59.1 inches, accommodating a wide range of pallet sizes and configurations without requiring a separate machine. This adjustability is critical on mixed-use floors where standard and non-standard pallet dimensions are both common.

Curtis Instrument Controller with 24V Center Drive Motor

The Curtis Instrument Controller provides precise, responsive drive and lift control, a widely recognized standard in the electric lift equipment industry. The 24V center drive motor configuration contributes to stable, predictable handling during loaded travel and directional changes.

Robotic-Welded Steel Construction

The frame is fabricated from high-quality steel using robotic welding processes, producing consistent, high-integrity weld joints throughout the structure. This construction approach is designed to withstand demanding terrain, heavy usage, impact, and frequent directional changes over the machine's service life.

Polyurethane Wheels

Polyurethane wheels are standard on the EB13E-138Li, offering durability on smooth concrete and warehouse floors while reducing floor marking. For operations in finished facilities or sensitive floor environments, this wheel compound minimizes surface damage compared to rubber alternatives.

Ergonomic Handle and Controls

The operator interface is designed with ergonomics in mind, reducing fatigue during extended use. Intuitive control placement supports efficient operation across loading, stacking, and retrieval tasks.

Common Applications

Loading and Unloading Trucks

The low 2.35-inch lowered fork height allows the machine to slide under standard pallets at dock level, enabling efficient loading and unloading of delivery and freight trucks.

Loading Dock Operations

The unit's compact footprint and 52.6-inch turning radius make it well-suited for the constrained staging areas and tight turns common at commercial loading docks.

Warehouse Stacking and Retrieval

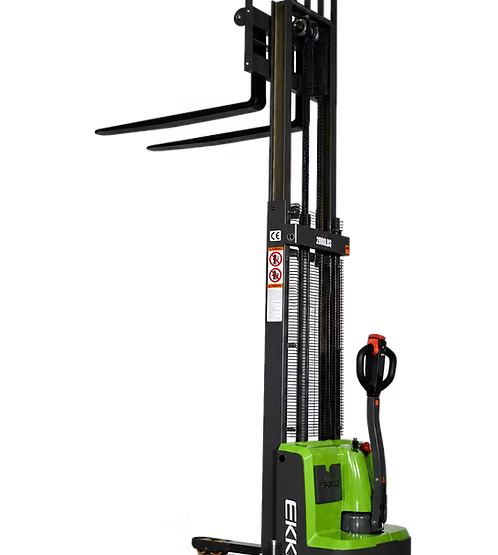

With a maximum lift height of 138 inches and extended mast height of 159.4 inches, the EB13E-138Li can place and retrieve palletized loads on mid- to high-level racking systems in standard warehouse environments.

Stock Room Material Handling

The adjustable legs and compact overall length of 70 inches allow the machine to navigate narrower stock room aisles while still handling loads up to 2,800 lb.

Manufacturing Floor Use

The machine's electric drive and polyurethane wheels make it appropriate for use on manufacturing floors where emissions control and floor protection are required.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Smooth concrete floors
• Warehouse finished flooring
• Loading dock surfaces
• Manufacturing floor surfaces

Product Documents

• EKKO Lifts Full Line Card (PDF)

Frequently Asked Questions

Q: Does the EB13E-138Li include a charger, or is one purchased separately?
A: The unit includes an integrated internal 24V/15A charger, so no separate charger purchase is required.

Q: What is the maximum lift height?
A: The maximum lifting height is 138 inches, with an extended mast height of 159.4 inches.

Q: Can the forks accommodate different pallet widths?
A: Yes. The overall fork width is adjustable from 8.3 to 33.5 inches, and the straddle legs adjust from 45.5 to 59.1 inches to accommodate varying pallet configurations.

Q: What type of battery does the EB13E-138Li use?
A: It uses a 24V/50Ah lithium battery, which offers lower maintenance requirements compared to lead-acid batteries.

Q: What warranty is included?
A: The EB13E-138Li comes with a 3 Year Limited Warranty.
