Lithium Electric Straddle Stacker with Side Shift, 119" Raise Height

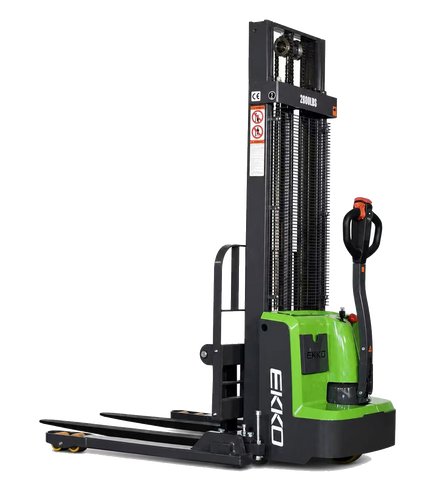

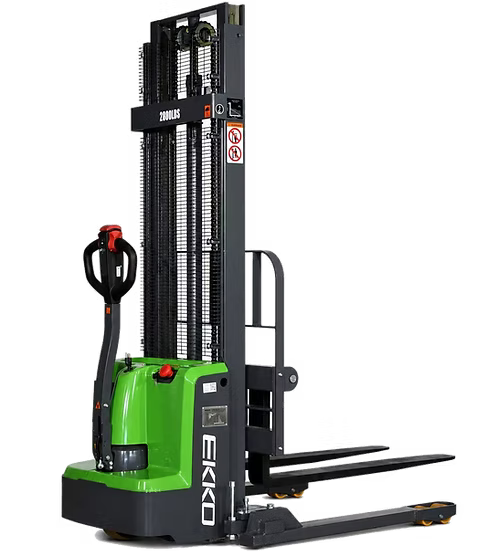

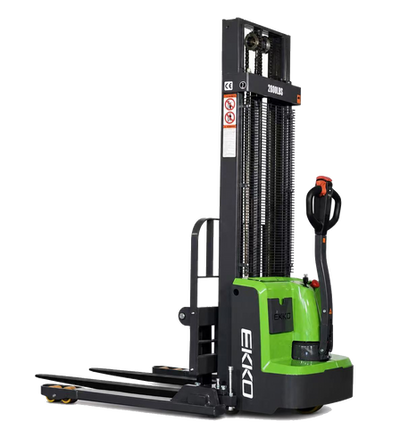

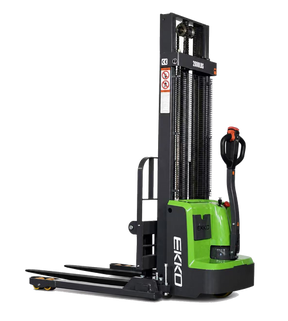

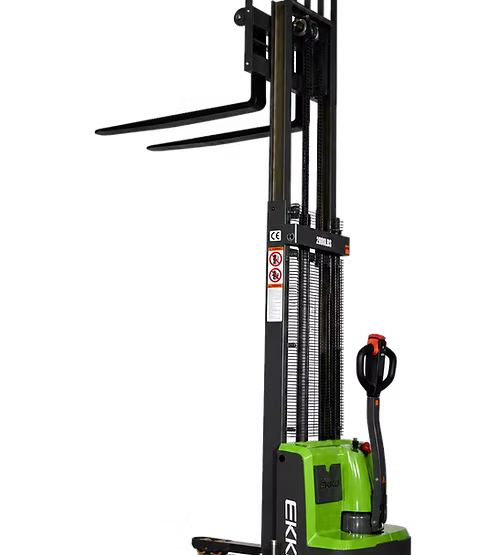

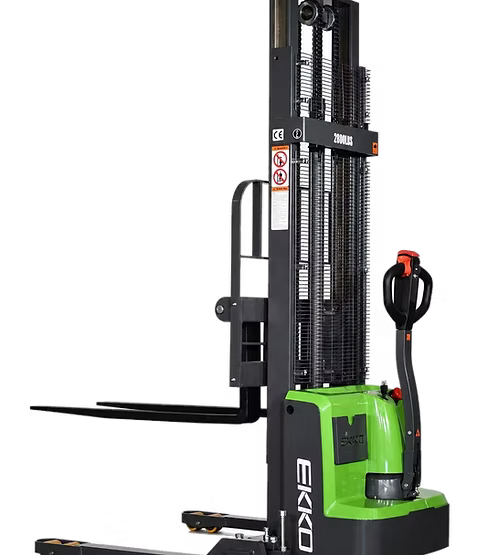

EKKO EB13ES-Li Lithium Electric Straddle Stacker with Side Shift — 2,800 lb Capacity, 119" Raise Height

The EKKO EB13ES-Li is a lithium-powered electric walkie straddle stacker combining the functionality of a forklift, reach truck, and walkie stacker in a single unit. Designed for contractors, warehouse operators, and trades professionals, it delivers a 2,800 lb load capacity with a 119" raised height to handle demanding material movement in tight or high-reach environments. It is purpose-built for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing applications.

Unlike conventional lead-acid stackers, the EB13ES-Li runs on a 24V/50Ah lithium battery, eliminating watering cycles and reducing downtime. The combination of adjustable fork width (8.3"–33.5") and adjustable leg width (45.7"–59.1") makes it adaptable to a wide range of pallet sizes and aisle configurations that a fixed-geometry stacker cannot accommodate. The integrated side shift function adds lateral load positioning capability without repositioning the entire machine.

Technical Specifications

Key Features & Benefits

Lithium Battery Power (24V / 50Ah)

The lithium battery eliminates the maintenance demands of lead-acid units — no fluid checks, no watering, and faster opportunity charging between shifts. For contractors running tight schedules, less downtime on battery maintenance translates directly into more productive hours on the job site or warehouse floor.

Side Shift Functionality

The integrated side shift allows operators to reposition loads laterally without moving the entire machine, improving placement accuracy in rack systems, on dock plates, and in confined aisles. This capability reduces the number of repositioning passes required and speeds up loading and unloading operations.

Adjustable Fork and Leg Width

Fork width adjusts from 8.3" to 33.5" and leg width from 45.7" to 59.1", allowing a single machine to handle non-standard pallets, wide loads, and varying aisle widths. This versatility reduces the need for multiple specialized pieces of equipment on a job site.

Curtis Instrument Controller

The Curtis Instrument controller provides precise drive and lift management, giving operators smooth, consistent control during load handling. It is a proven industrial controller used across the EKKO product line, supporting reliable performance in demanding daily use.

Steel Construction with Robotic Welding

The frame is built from high-quality steel using robotic welding processes, producing consistent, high-integrity weld joints throughout the structure. This construction approach is designed to withstand terrain variation, repeated directional changes, and the impact loads typical of active job site or warehouse environments.

Ergonomic Handle and Controls

The ergonomic handle and control layout reduces operator fatigue during extended use, which is a practical consideration on long warehouse or manufacturing floor shifts. Accessible controls also help minimize operator error during repetitive load cycles.

Polyurethane Wheels

Polyurethane wheels provide durable traction and floor protection across warehouse floors, dock surfaces, and manufacturing environments. They resist wear under sustained load cycling without marking or damaging finished floor surfaces.

Common Applications

Loading and Unloading Trucks

The 2,800 lb capacity and 45.3" fork length allow the EB13ES-Li to move full pallets onto and off truck beds efficiently, and the side shift assists with precise dock-face alignment without repositioning the machine.

Loading Dock Operations

The adjustable leg width and straddle configuration allow the unit to navigate dock plate transitions and position loads accurately at dock height, reducing manual handling at the dock face.

Stock Room Material Handling

In confined stock room environments, the adjustable fork and leg widths allow the stacker to work with varying pallet sizes and navigate narrower aisles that a fixed-geometry forklift cannot access.

Manufacturing Floor Material Movement

The robust steel construction and polyurethane wheels are suited to the mixed-surface, high-cycle conditions of active manufacturing floors, where durability and consistent performance across directional changes and terrain variation are required.

Warehousing and Rack Loading

With a 119" raised height and side shift capability, the EB13ES-Li can place and retrieve loads from elevated rack positions while making fine lateral adjustments for accurate load placement without excessive machine repositioning.

Compatible Materials

• Standard wooden pallets
• Non-standard and wide-format pallets (adjustable fork width: 8.3" – 33.5")
• Warehouse racking systems
• Warehouse and manufacturing floor surfaces
• Loading dock surfaces and dock plates

Product Documents

• EKKO Lifts Line Card (PDF)

Frequently Asked Questions

Q: What is the maximum lift height of the EB13ES-Li?
A: The EB13ES-Li raises loads to a maximum height of 119".

Q: Does this stacker include a side shift function?
A: Yes. Side shift is a standard feature on the EB13ES-Li, allowing lateral load repositioning without moving the entire machine.

Q: What battery type does the EB13ES-Li use, and what are the maintenance requirements?
A: The unit uses a 24V / 50Ah lithium battery, which does not require the fluid maintenance (watering) associated with lead-acid batteries.

Q: Can the fork and leg widths be adjusted for different pallet sizes?
A: Yes. Fork width is adjustable from 8.3" to 33.5" and leg width from 45.7" to 59.1", accommodating a range of pallet sizes and aisle configurations.

Q: What warranty is included with the EB13ES-Li?
A: The EB13ES-Li comes with a 3 Year Limited Warranty.
