EKKO EB13E-145Li Lithium Straddle Stacker — 2,800 lb Capacity, 145" Lift Height

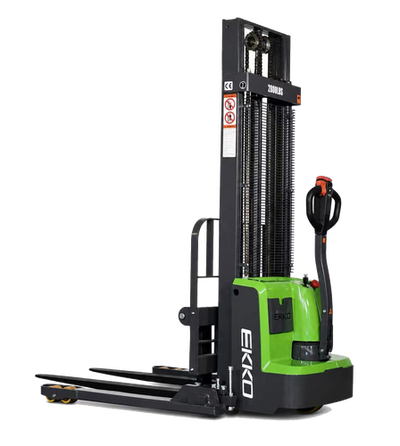

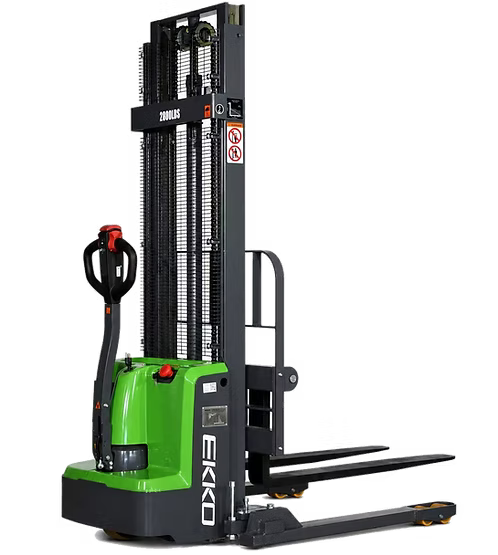

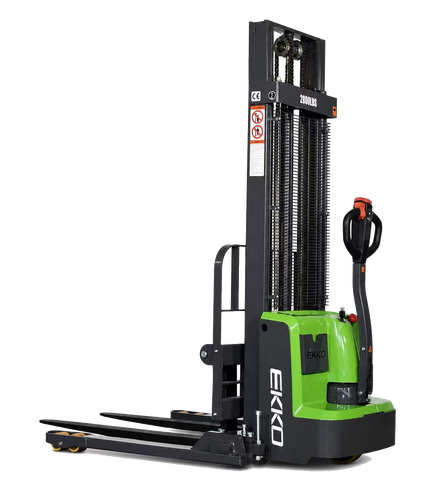

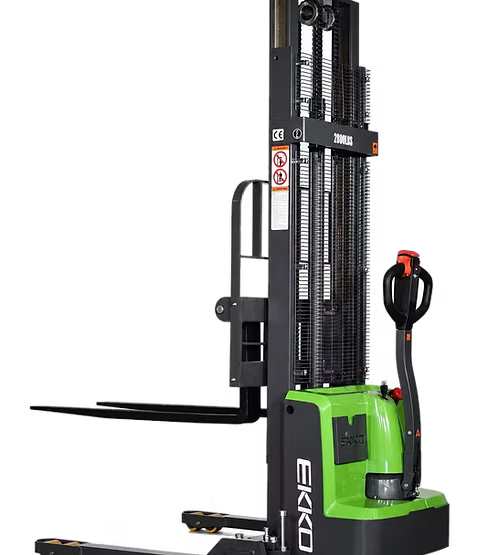

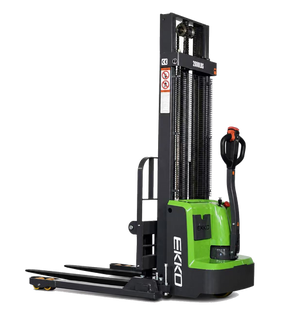

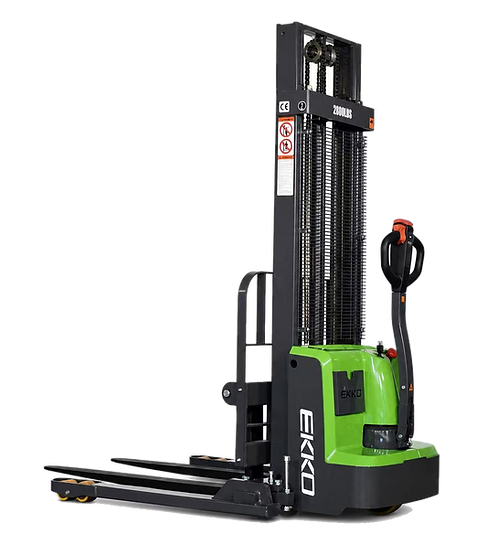

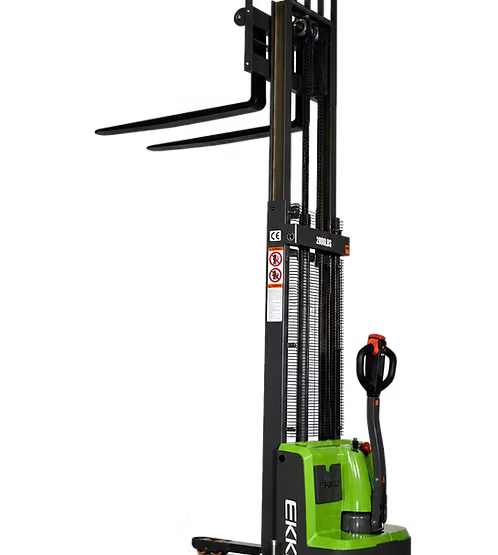

The EKKO EB13E-145Li Lithium Straddle Stacker is a powered walkie stacker engineered to deliver the combined functionality of a forklift, reach truck, and walkie stacker in a single compact unit. With a 2,800 lb load capacity and a maximum lifting height of 145 inches, it is built for contractors and trades professionals operating in loading docks, stock rooms, manufacturing floors, and warehouse environments. The adjustable fork and leg geometry allows it to adapt to a wide range of load sizes and aisle configurations without requiring a separate machine.

Unlike lead-acid walkie stackers, the EB13E-145Li runs on a 24V/50Ah lithium battery with an integrated 24V/15A onboard charger, eliminating the need for an external charging station and reducing downtime between shifts. Its Curtis Instrument Controller and 24V center drive motor provide precise, responsive control, while robotic-welded steel construction delivers the structural integrity demanded by high-cycle industrial use.

Technical Specifications

Key Features & Benefits

Lithium Battery with Onboard Charger

The 24V/50Ah lithium battery pairs with an integrated 24V/15A charger, meaning no separate charging infrastructure is required on the job site or in the facility. Lithium chemistry supports opportunity charging during breaks, reducing the risk of a stacker sitting idle mid-shift due to a depleted battery.

Adjustable Forks and Legs

Fork width adjusts from 8.3 to 33.5 inches and leg width adjusts from 45.5 to 59.1 inches, giving operators the flexibility to handle pallets and loads of varying sizes without swapping attachments. This adaptability makes the unit effective across diverse loading configurations encountered on construction sites, docks, and warehouse floors.

Curtis Instrument Controller

The Curtis Instrument Controller is an industry-recognized control platform that provides smooth, precise motor management for both lift and drive functions. Contractors benefit from consistent, predictable machine response during high-cycle material handling operations.

24V Center Drive Motor

The center drive motor configuration provides balanced traction and directional stability during loaded travel, which is critical when navigating tight aisles or making frequent directional changes on a busy floor. At 4.0 km/h laden and 4.2 km/h unladen, the unit maintains efficient throughput during routine moves.

Robotic-Welded Steel Construction

The frame is fabricated from high-quality steel using robotic welding processes, producing consistent, high-strength weld joints throughout the chassis. This construction approach is designed to withstand the impact, terrain variation, and directional changes typical of active construction and industrial environments.

Polyurethane Wheels

Polyurethane wheels provide durability on hard surfaces such as concrete and warehouse flooring while resisting wear and flat-spotting over time. They also minimize floor marking and surface damage, which matters in environments where floor condition is a concern.

Ergonomic Handle and Controls

The ergonomic handle and control layout reduces operator fatigue during extended use, supporting productivity across full work shifts. Accessible controls allow operators to manage lift, lower, and drive functions efficiently from the walk position.

Common Applications

Loading and Unloading Trucks

With a lowered fork height of 2.35 inches and a 2,800 lb capacity, the EB13E-145Li can slide under standard pallets on truck beds and loading docks with minimal clearance requirements, speeding up receiving and shipping operations.

Loading Dock Operations

The stacker's compact footprint and 52.6-inch turning radius make it maneuverable in the confined spaces typical of loading dock staging areas, where larger forklifts are impractical.

Stock Room and Warehouse Storage

A 145-inch maximum lift height and adjustable fork width allow operators to place and retrieve palletized stock on elevated racking in warehouses and stock rooms efficiently.

Manufacturing Floor Material Handling

The combination of powered drive, powered lift, and adjustable geometry makes the unit suitable for moving raw materials, work-in-progress, and finished goods across manufacturing floor environments where load sizes and weights vary.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized construction materials
• Palletized warehouse stock and inventory
• Palletized manufacturing components and finished goods

Frequently Asked Questions

Q: Does the EB13E-145Li require an external battery charger?
A: No. The unit includes an integrated 24V/15A internal charger, so no separate external charging station is required.

Q: What is the maximum height this stacker can lift a load?
A: The maximum lifting height is 145 inches. The extended mast height reaches 167 inches.

Q: Can the forks and legs be adjusted to fit different pallet sizes?
A: Yes. The overall fork width is adjustable from 8.3 to 33.5 inches, and the legs are adjustable from 45.5 to 59.1 inches to accommodate varying load widths.

Q: What type of battery does the EB13E-145Li use?
A: It uses a 24V/50Ah lithium battery, which supports opportunity charging and eliminates the maintenance requirements associated with lead-acid batteries.

Q: What warranty is included?
A: The EB13E-145Li is covered by a 3 Year Limited Warranty.
