Lithium Straddle Stacker with 145" Lift Height

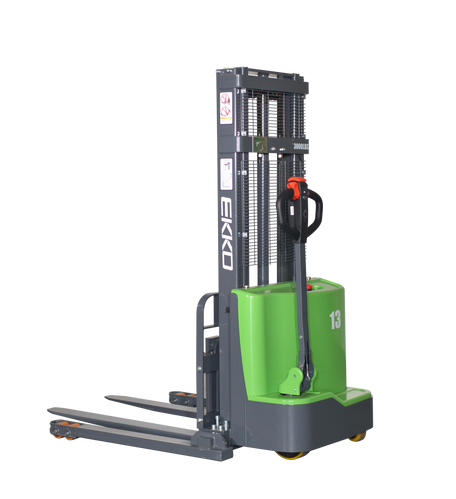

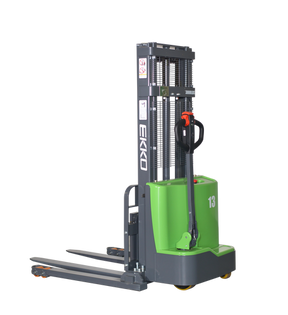

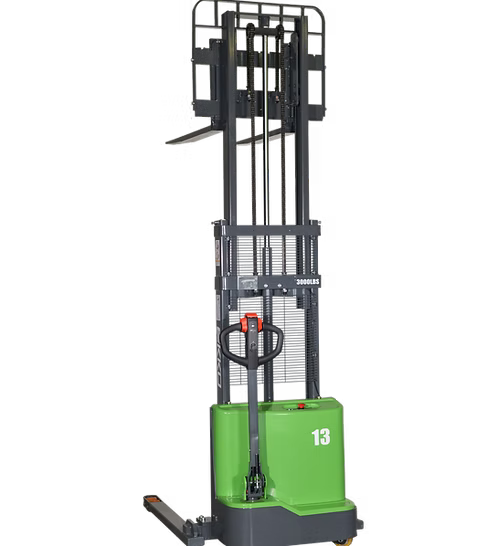

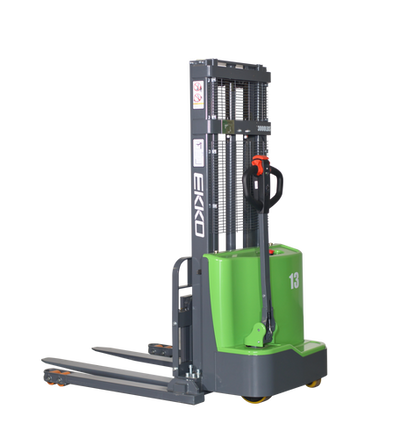

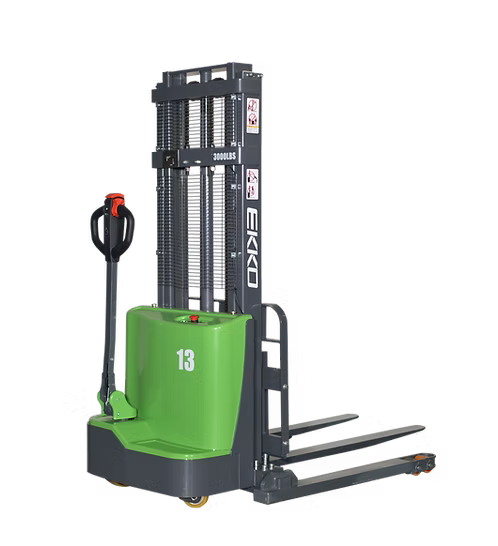

EKKO EB13C-145Li Lithium Straddle Stacker — Versatile 2,800 lb Walkie Stacker with 145" Lift Height

The EKKO EB13C-145Li is a lithium-powered walkie straddle stacker engineered for demanding material handling environments including loading docks, stockrooms, manufacturing floors, and warehousing operations. With a 2,800 lb load capacity and a raised height of 145 inches, it delivers the combined functionality of a forklift, reach truck, and walkie stacker in a single unit. Built from high-quality steel with durable drive components, it is designed to withstand varied terrain, continuous usage, impact, and frequent directional changes.

Unlike conventional lead-acid-powered stackers, this unit runs on a 24V / 50Ah lithium battery, offering the efficiency and reduced maintenance demands of lithium power. The Curtis Instrument Controller paired with a DC Drive Motor provides precise, reliable drive performance across diverse applications, while polyurethane wheels and an ergonomic handle and controls configuration reduce operator fatigue during extended use.

Technical Specifications

Key Features & Benefits

Lithium Battery Power

The 24V / 50Ah lithium battery delivers consistent power output without the maintenance demands associated with lead-acid alternatives. For contractors running multi-shift operations, lithium power means less downtime and more predictable performance throughout the workday.

Curtis Instrument Controller with DC Drive Motor

The industry-recognized Curtis Instrument Controller paired with a DC Drive Motor gives operators precise speed and directional control. This combination supports confident maneuvering in tight stockrooms, loading docks, and congested warehouse aisles.

Adjustable Forks and Legs

Fork width adjusts from 8.6" to 32.1" and straddle legs adjust from 35.4" to 51.2", allowing the machine to accommodate a wide range of pallet sizes and load configurations. This flexibility reduces the need for multiple machines across different load types on a single job site.

145" Raised Height

A maximum raised height of 145 inches enables stacking to high rack levels in warehousing and stockroom environments. Contractors and facilities managers can maximize vertical storage space without resorting to larger, less maneuverable forklifts.

Polyurethane Wheels on Steel Construction

Polyurethane wheels deliver durability across varied floor surfaces while protecting flooring from marking or damage. The all-steel frame construction is built to withstand the impact and directional changes inherent to active material handling environments.

Ergonomic Handle and Controls

The ergonomic handle and control layout reduces operator fatigue during extended loading and unloading operations. For trades professionals moving high volumes of material across a shift, this directly supports productivity and reduces the risk of repetitive strain.

Common Applications

Loading and Unloading Trucks

The straddle stacker's 2,800 lb capacity and adjustable fork geometry make it well-suited for efficiently moving palletized freight on and off delivery vehicles at loading docks.

Loading Dock Operations

Its compact walkie stacker form factor allows it to navigate loading dock areas where larger ride-on forklifts would be impractical, keeping freight moving between trucks and storage areas.

Stockroom Material Handling

With a 145" raised height and adjustable legs, the EB13C-145Li can place and retrieve palletized stock at elevated racking positions in stockrooms of varying configurations.

Manufacturing Floor Logistics

The unit's durable steel construction and polyurethane wheels allow it to operate reliably on manufacturing floors, moving raw materials and finished goods between production areas and storage.

Warehousing and Racking

The combination of adjustable forks, adjustable legs, and 145" lift height makes the EB13C-145Li suitable for high-density warehouse racking applications where both pallet size variety and vertical reach are required.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized construction materials
• Palletized manufactured goods
• Boxed and crated freight
