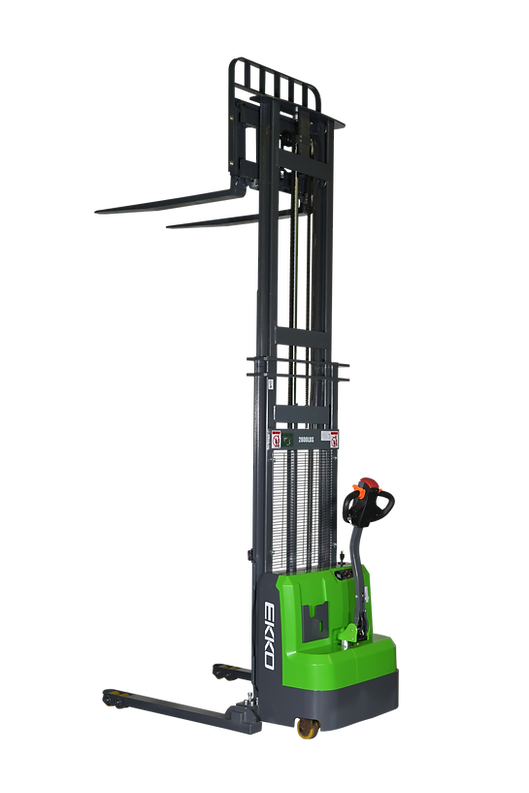

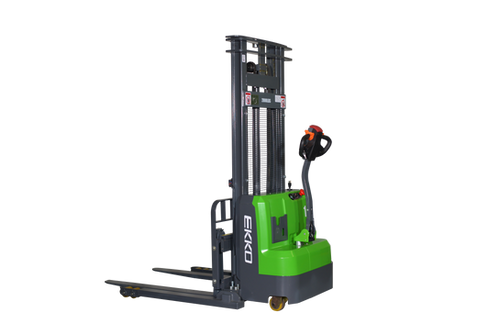

Lithium Straddle Stacker with Side Shift with 118" Lift Height

EKKO EB14CS-118Li Lithium Straddle Stacker with Side Shift — 3,000 lb Capacity, 118" Lift Height

The EKKO EB14CS-118Li Lithium Straddle Stacker is a heavy-duty, battery-powered walkie stacker engineered for contractors and warehouse professionals who need the combined functionality of a forklift, reach truck, and walkie stacker in a single machine. With a 3,000 lb load capacity and a raised height of 118" (9.83 ft.), it is purpose-built for loading and unloading trucks, servicing loading docks, stocking shelves in stockrooms, and supporting operations on manufacturing floors and in warehousing environments. The unit is powered by a 24V / 50Ah lithium battery, delivering clean, efficient power with the low-maintenance advantages of lithium chemistry.

Unlike conventional lead-acid stackers, this model combines adjustable forks (8.7"–32.1"), adjustable straddle legs (35.4"–51.2"), and a built-in side shift function — giving operators the flexibility to handle a wide range of pallet sizes and load positions without repositioning the entire machine. The dual damping drive system and Curtis Instrument Controller deliver handling performance and operator comfort that standard walkie stackers cannot match.

Technical Specifications

Key Features & Benefits

Lithium Battery Power

The 24V / 50Ah lithium battery provides reliable, consistent power throughout the workday without the watering, venting, and acid-handling requirements of lead-acid alternatives. For contractors running tight schedules, lithium chemistry means less downtime spent on battery maintenance and faster opportunity charging between shifts.

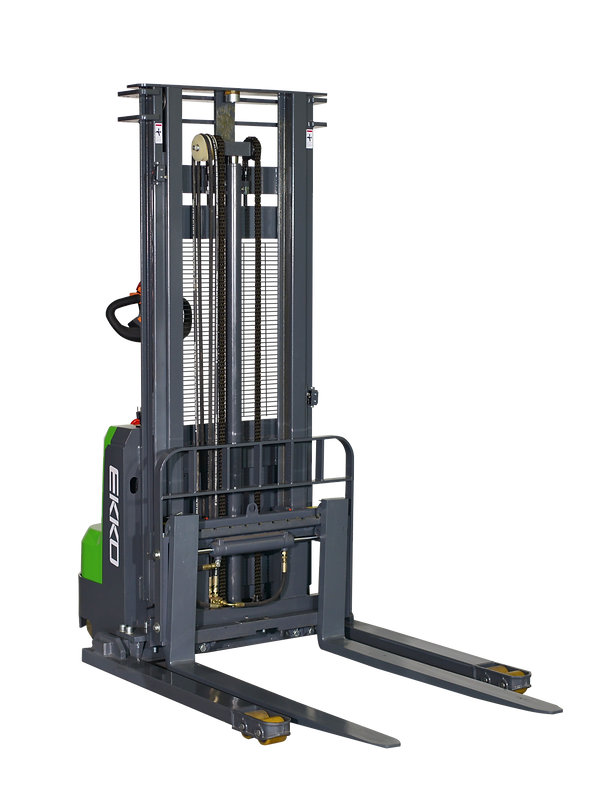

Side Shift Functionality

The integrated side shift allows operators to laterally reposition the forks without moving the entire machine, enabling precise load placement in tight aisles, on truck beds, and at dock positions. This is a critical advantage when working in confined spaces where repositioning the stacker would otherwise require multiple maneuvers.

Adjustable Forks and Straddle Legs

Fork width adjusts from 8.7" to 32.1" and straddle legs adjust from 35.4" to 51.2", allowing the machine to accommodate a wide range of pallet sizes and configurations. This versatility eliminates the need for multiple specialized machines across different jobsite or warehouse scenarios.

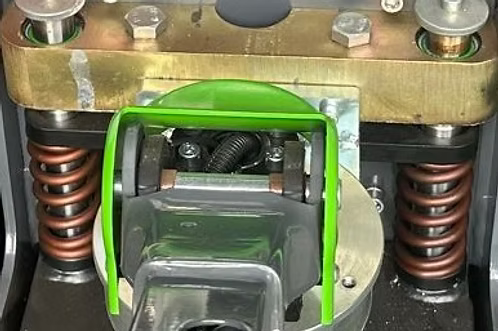

Dual Damping Drive System

The dual damping drive system is designed to absorb shock and reduce vibration during operation, improving handling performance across varied floor surfaces and during directional changes. For operators working long shifts, this translates directly to reduced fatigue and greater confidence when maneuvering loaded forks.

Curtis Instrument Controller

The Curtis Instrument Controller is a proven industrial-grade control system used across EKKO's professional equipment line. It provides precise drive and lift control, supporting efficient and repeatable operation in demanding commercial environments.

Steel Frame Construction with Polyurethane Wheels

The high-quality steel frame is built to withstand the impact, terrain variation, and continuous directional changes common on job sites and warehouse floors. Polyurethane wheels provide low rolling resistance and floor protection, making this stacker suitable for use on finished concrete and smooth industrial surfaces.

Common Applications

Loading and Unloading Trucks

The 3,000 lb capacity and 45.3" fork length make this stacker well-suited for moving palletized loads onto and off of truck beds at ground level or at dock height.

Loading Dock Operations

The combination of adjustable legs, side shift, and 118" lift height enables efficient staging and retrieval of goods in standard loading dock environments.

Stockroom Stacking and Retrieval

The compact walkie stacker format and adjustable fork/leg dimensions allow operators to navigate stockroom aisles and place loads on racking up to 9.83 ft. high.

Manufacturing Floor Material Handling

The steel construction and dual damping drive system are designed to withstand the continuous use, varied terrain, and frequent directional changes typical of active manufacturing floors.

Warehousing Operations

The machine's versatility across forklift, reach truck, and walkie stacker functions makes it a practical single-unit solution for general warehousing material movement and storage.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized boxed goods
• Palletized bagged materials
• Finished concrete floors
• Smooth industrial floor surfaces

Frequently Asked Questions

Q: What is the maximum lift height of the EB14CS-118Li?
A: The maximum raised height is 118 inches (9.83 ft.).

Q: Does this stacker include a side shift?
A: Yes, the EB14CS-118Li includes a side shift function for lateral fork repositioning without moving the machine.

Q: What battery type does this unit use?
A: It is equipped with a 24V / 50Ah lithium battery.

Q: Can the forks and legs be adjusted for different pallet sizes?
A: Yes — forks are adjustable from 8.7" to 32.1" and straddle legs are adjustable from 35.4" to 51.2".

Q: What type of controller does the EB14CS-118Li use?
A: The unit is equipped with a Curtis Instrument Controller, the same industrial-grade controller used across EKKO's professional equipment line.
