Manual Roll Bender R-M10

SKU# BA9-1006846

Regular price $2,309.00
Shipping calculated at checkout.

Secure Checkout

Safe & Secure Payments

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Meta Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

You might also be interested in

  • Edwards

    Radius Roller

    Regular price $11,259.00
  • Baileigh

    Ring Roll Machine - R-M40

    Regular price $6,489.00
    View details
  • Baileigh

    Roll Bender - R-M20-220

    Regular price $6,115.00
    View details
  • Baileigh

    Baileigh Manual Roll Bender R-M10E

    Regular price $4,212.00
    View details
  • Baileigh

    Radius Bender R-M7

    Regular price $1,022.00
    View details
  • Baileigh

    Manual Roll Bender R-M3

    Regular price $307.00
    View details

Product Description

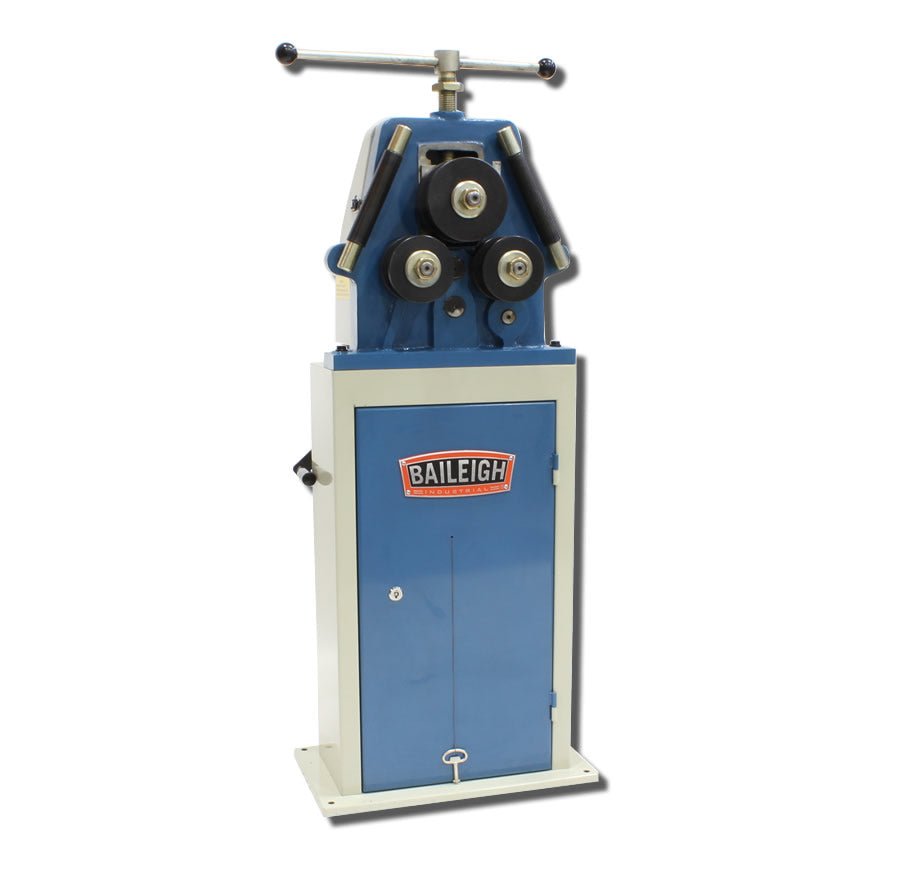

Since we introduced the Baileigh R-M10 manual roll bender in 2004, this metal ring roller machine has proved it does almost everything larger roll benders can—for a fraction of the price..

  • Maximum capacity of 1.25” (.078” wall) mild steel round tubing and 1” schedule 40 pipe capacity.
  • Open-face design allows you to roll full circles.

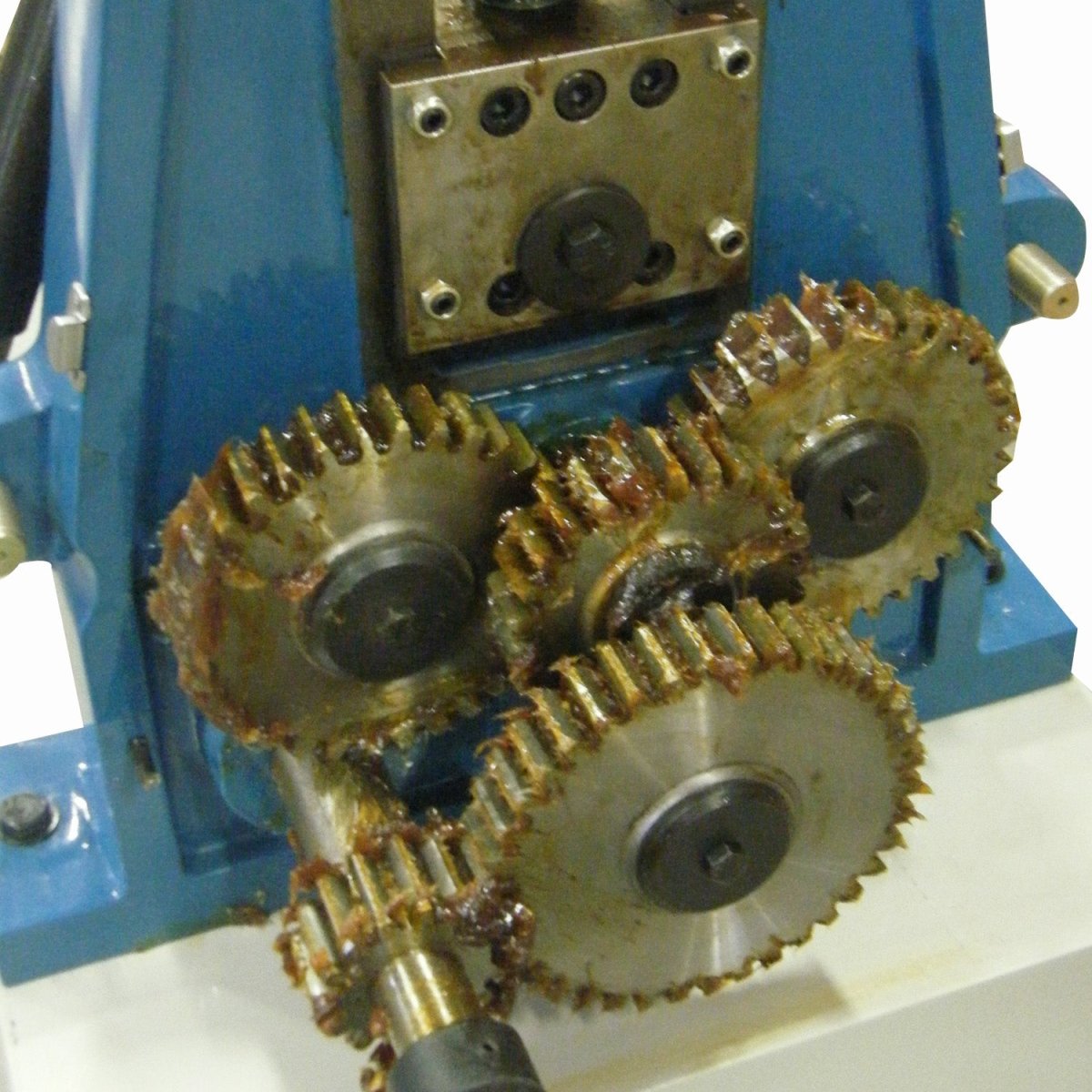

  • Manual drive includes reduction gearbox to cut down on physical effort.

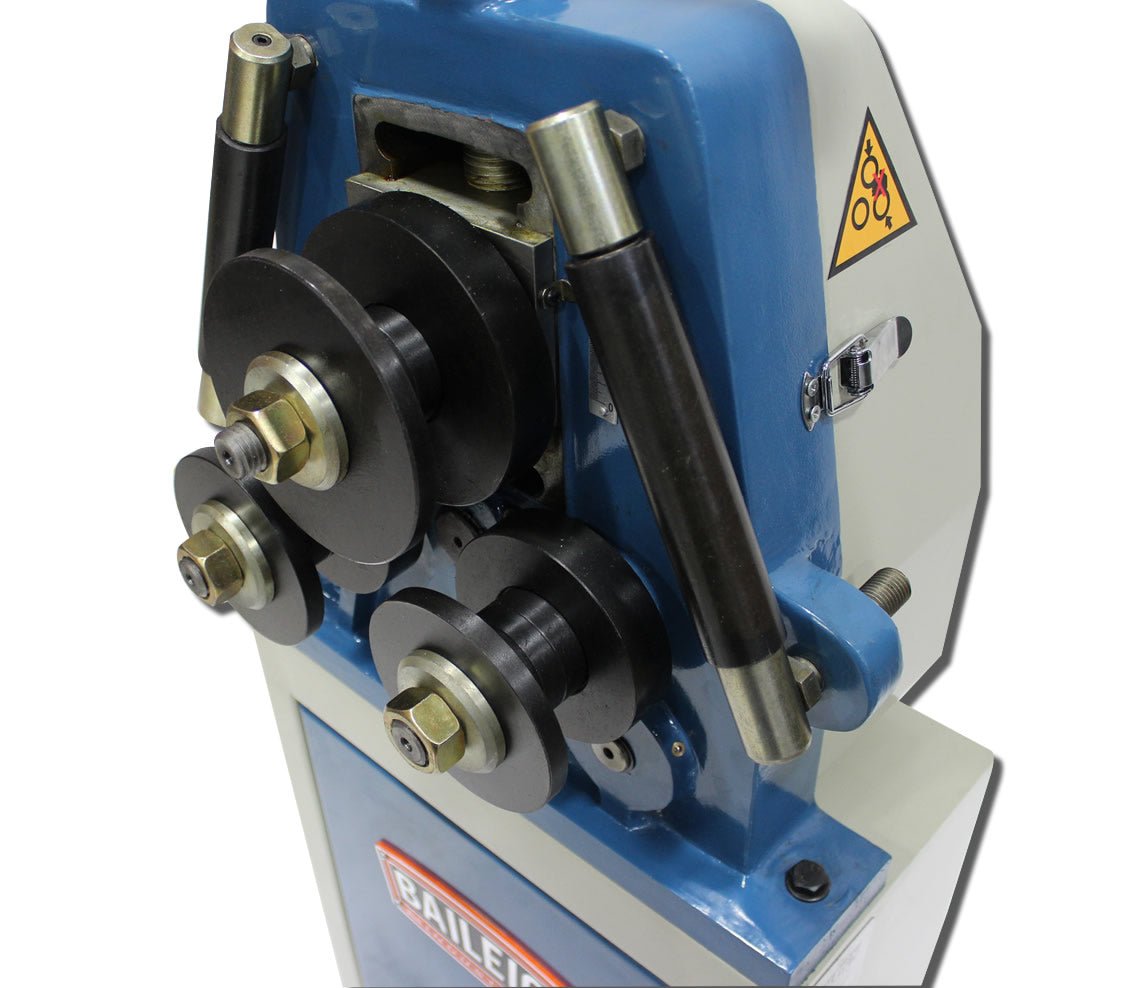

  • Comes equipped with various segment rolls for different types of flat bar, angle iron, and square tubing.
  • Hardened rolling shafts turn on bronze bushings, ensuring that the machine will last for years and wear well.
  • Cast steel head, machined to exacting tolerances, maintains accuracy when bending at full capacity.
  • Machine base opens to a handy storage cabinet.
  • Many optional sizes of tooling are available for round tube and pipe, among other profiles.
  • The Baileigh R-M10 manual roll bender is backed by our 1-year parts warranty and lifetime technical support..

Specs

Item Number R-M10
Roll Adjustment Manual
Pipe Capacity Size: 1" (sch. 40) / Min. Dia.: 28"
Round Tube Capacity Size: 1.25" (.078") / Min. Dia.: 31.5"
Square Tube Capacity Size: 1.25" (.078") / Min. Dia.: 35"
Solid Round Capacity Size: .875" / Min. Dia. 20"
Flat Bar Easy Way 1.96" (.39") / Min. Dia.: 15.75"
Flat Bar Hard Way 1.18" (.39") / Min. Dia.: 19.685"
Angle Iron Capacity Size: 1.25" (.157") / Min. Dia.: 30"
Shaft Diameter 1.181"
Shaft Center Distance 6.7"
Lower Roll Dia. 4.65"
Pinch Single
Power Manual
Shipping Weight 460lbs
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches) 31x25x39

* specifications subject to change without notice.
