Manual Roll Bender R-M3

Don’t be fooled by steel ring roller's small size. The R-M3 manual roll bender is made from the finest heavy steel plate—unlike some roll benders on the market—to ensure years of productivity.

• Makes precise bends and curves in small rod up to .25”.
• 3 rolls, with 2 driven rolls powered by manual crank.

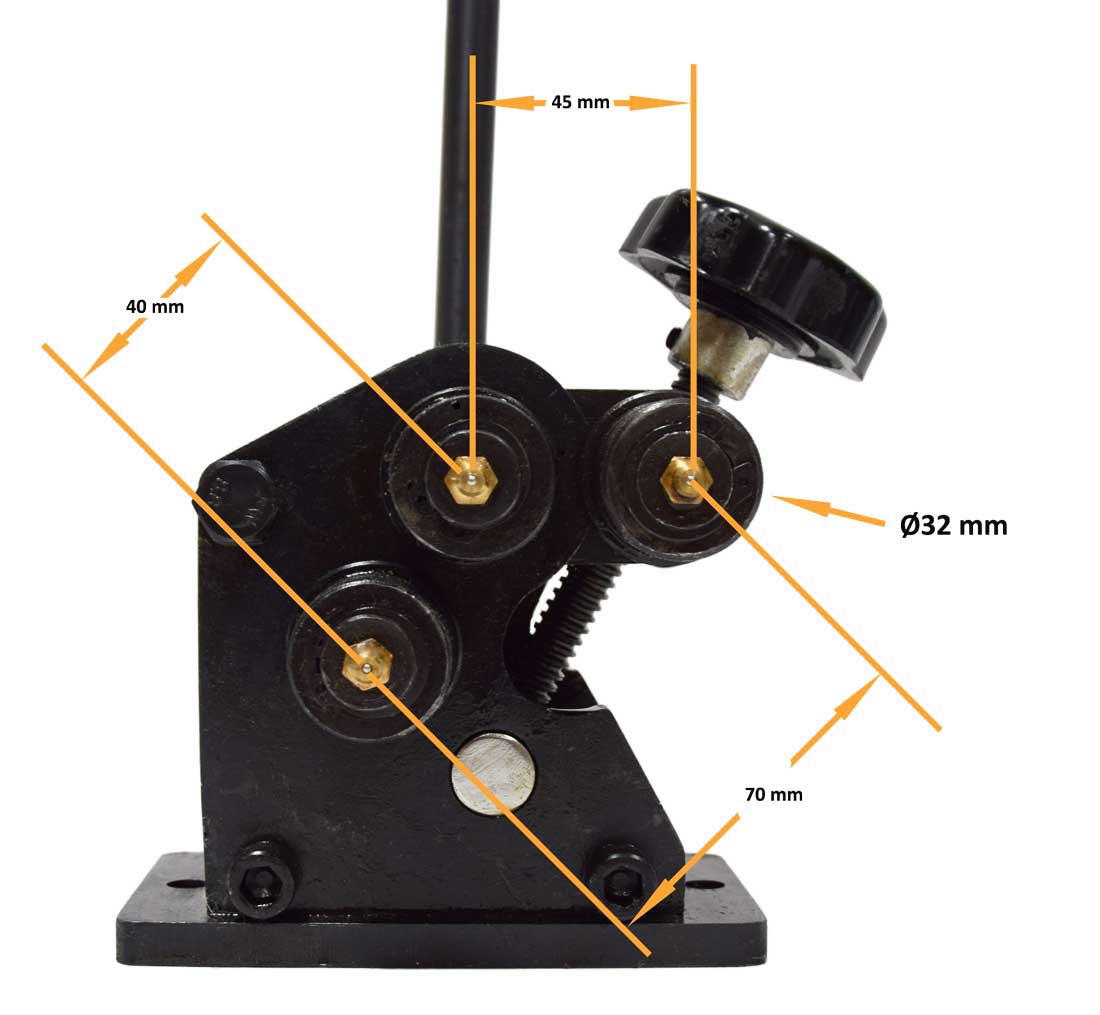

• Top roll adjusts depending on desired bend.

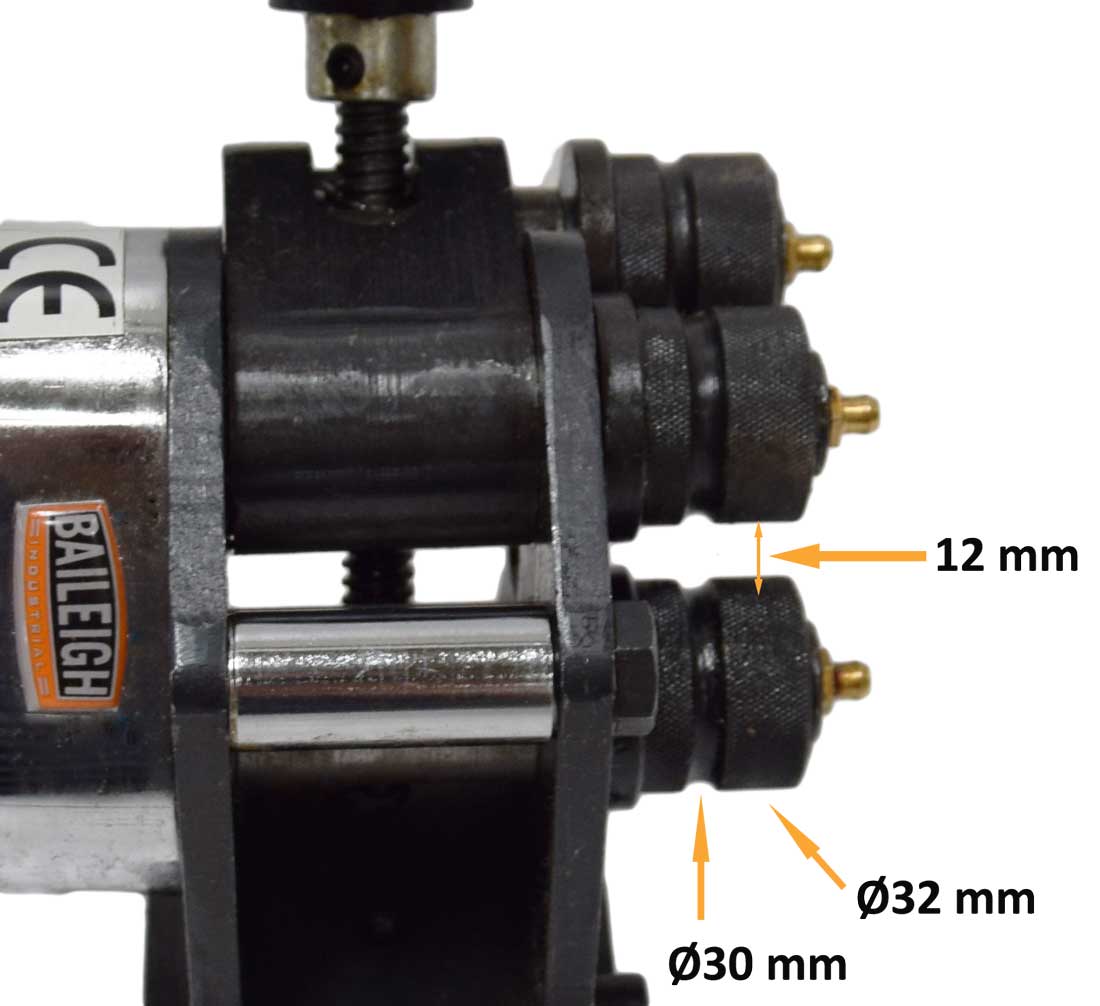

• Durable knurled rolls feature .25” grooves and grease fittings.
• Mounts easily to a bench or pedestal.
• Backed by a 1-year parts warranty as well as lifetime technical support by phone.

Recommended for: Metal artists, technical schools, hobbyists, and home shops.

Item Number	R-M3
Minimum Diameter	3"
Capacities Flat Bar	1" x .1875"
Capacities Solid Round	.25"
Handle Length	13.5"
Power	Manual
Shipping Weight	16lbs
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches)	9x9x9

* specifications subject to change without notice.
