Manual Rotator/Power Tilter 1000 (AC) - MRPT8 Lifter Series

Manual Rotator/Power Tilter 1000 (AC) | Custom Build Vacuum Lifter

This lifter features powered 90° tilt, continuous 360° rotation, and fast attach and release times.
Ideal for production and fabrication facilities.

Rotator/Tilter

Specifications

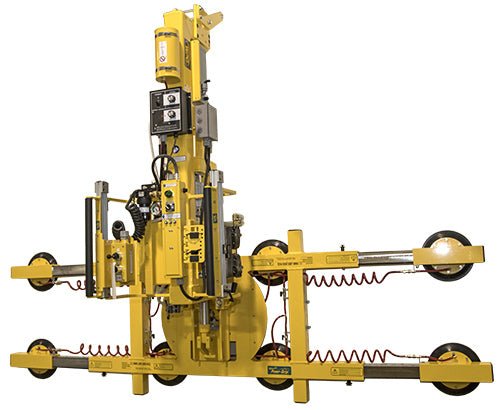

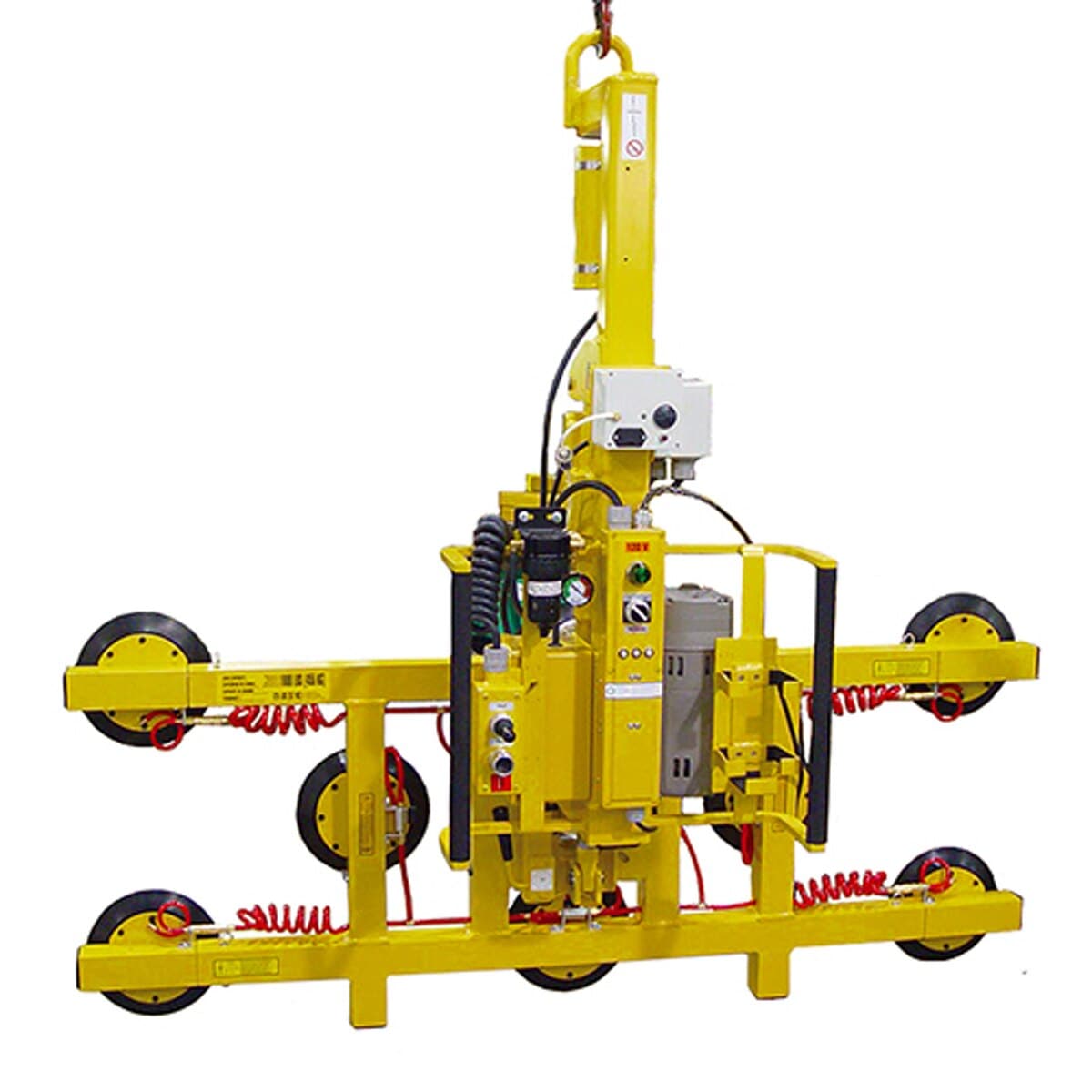

MRPT89AC Vacuum Lifter shown with optional Telescoping Pad Arms, Vacuum Loss Warning Buzzer and Individual Pad Shutoffs

Standard Pad Spread:
29-1/4" x 59-1/4" [74 cm x 150 cm]

Number / Size of Vacuum Pads:
8 / 9" [23 cm] diameter pads

Maximum Load Capacity:
1000 lbs [455 kg]

Weight of Lifter:
278 lbs [126 kg]

Standard Operating Power:
120 volts AC, 60 hertz, 12 amps

Apply / Release Times:
4 seconds / 3 seconds (approx)

Load Movement:
Manual rotation, 360° edgewise, with locking at each quarter point
Power tilt, 90° between upright and flat

Time for 90° Tilt:
9 seconds (approx)

Tilt Duty:
60 tilts per hour

Standard Features:
Green lift light
Movable control pendant
Vacuum gauge
Vacuum reserve tank
Vacuum line filter
Spring-mounted vacuum pads
Twist-lock electrical plug
Blow-off for quick release

Load Capacity	1000 lbs [455 kg]
Per-Pad Capacity	125 lbs [57 kg]
Pad Model	VPFS9
AC Power	Standard
AC Volts	120 VAC
AC Amps	12
Hertz	50/60
Phase	1
Apply Time (AC)	4 Seconds
Release Time (AC)	3 Seconds
Duty Cycle (Lifts/Hr) (AC)	60
Weight (AC)	278 lbs
Manipulation	Continuous
Tilt	90°
Tilt Power	Power
Rotation	360°
Rotation Power	Manual
Max Pad Spread (L)	59.25" [150 cm]
Min Pad Spread (L)	59"
Max Pad Spread (W)	29.25"
Min Pad Spread (W)	29.25"
Max Height	69.25"
Min Ambient Temp	32° F
Min Load Temp	32° F
Max Ambient Temp	100° F
Max Load Temp	100° F
