Wood's Powr-Grip Powered 90° Tilt Case Lifter

Wood's Powr-Grip Powered 90° Tilt Case Lifter — AC-Powered Vacuum Lifting for Production & Fabrication

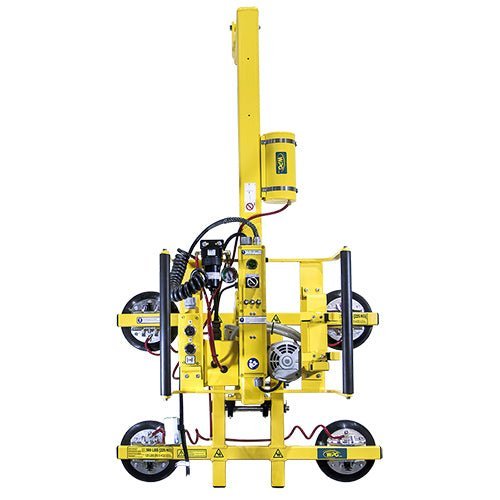

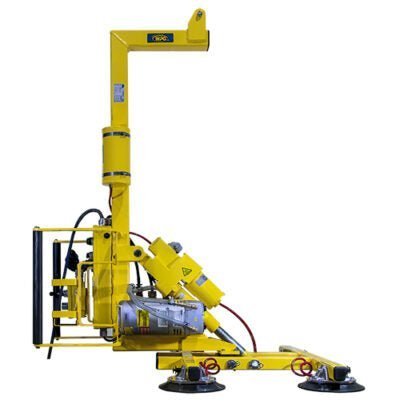

The Wood's Powr-Grip C-Frame Power Tilter (CFPT series, AC-voltage) is a corded, AC outlet-powered vacuum lifter engineered for production and fabrication environments where materials must be moved reliably into and out of upright cases. Available in two load capacity configurations — 750 lbs (340 kg) as model CFPT69AC and 500 lbs (225 kg) as model CFPT49AC — these lifters are purpose-built for skilled professionals handling heavy flat goods in high-throughput settings. The powered 90° tilt function allows operators to transition loads from horizontal to vertical orientations with precise, motorized control, reducing manual strain and repositioning time on the job site or shop floor.

Unlike manual tilt lifters that rely on operator effort to rotate loads, the CFPT series delivers consistent, powered 90° tilt actuation via a linear tilt actuator, ensuring repeatable load control regardless of operator fatigue or load weight. The AC-corded power system eliminates battery dependency in fixed production environments, providing continuous runtime without charge interruptions. Optional accessories including a Vacuum Backup System, Telescoping Pad Arms, and Movable Pad Mounts extend the lifter's versatility to accommodate varied load dimensions and add an additional layer of safety against accidental load release during power interruptions.

Key Features & Benefits

Powered 90° Tilt Actuation

The motorized tilt function allows the operator to rotate loads a full 90° using a tilt toggle switch on the movable control pendant, without applying manual force to the load. This is critical for contractors and fabricators who need to transition large panels or case materials from flat to upright orientations repeatedly throughout a shift. Consistent powered tilt reduces the risk of load drop or operator injury associated with manual repositioning.

High Load Capacity Options

The CFPT69AC supports loads up to 750 lbs (340 kg) and the CFPT49AC handles up to 500 lbs (225 kg), covering a wide range of production material weights. Contractors can select the appropriate model based on their typical load profile without over-specifying equipment. Both models are rated for demanding production and fabrication applications.

AC-Corded Power System

Powered directly from a standard AC outlet, these lifters are designed for fixed or semi-fixed production environments where a continuous power source is available. Corded operation eliminates downtime caused by depleted batteries and ensures the vacuum pump and tilt actuator operate at consistent performance levels throughout the workday. The power system includes a vacuum switch, vacuum pump, and vacuum reserve tank to maintain reliable suction.

Vacuum Lift Light & Vacuum Gauge

An integrated vacuum lift light and vacuum gauge give operators real-time feedback on pad attachment status and system vacuum levels before and during lifts. The lift light indicates when sufficient vacuum has been achieved to safely lift the load, preventing premature lifts that could result in load drops. The vacuum gauge allows ongoing monitoring so operators can react immediately if vacuum levels fall below safe operating thresholds.

Movable Control Pendant

The pendant-mounted controls, including the tilt toggle switch and vacuum release button (or lever-style vacuum control valve on select configurations), keep all critical functions within the operator's reach during material handling. This ergonomic layout reduces the need to reach across or around loads to actuate controls, improving both safety and workflow efficiency. The pendant basket keeps the controls organized and protected when not in active use.

Optional Vacuum Backup System

An available Vacuum Backup System (Stock# 93756) prevents unexpected load releases caused by accidental power outages or interruptions during a lift. This accessory is strongly recommended for production environments where power reliability cannot be guaranteed or where loads are suspended for extended periods. Adding this option brings the lifter in line with higher safety standards for overhead load handling.

Common Applications

Moving Materials Into Upright Cases

The powered 90° tilt allows fabricators to pick flat stock horizontally and tilt it to vertical for insertion into upright storage or shipping cases, eliminating manual rotation of heavy panels. This is the primary design use case for the CFPT series.

Moving Materials Out of Upright Cases

Operators can attach pads to vertically stored materials, tilt them to horizontal, and transport them to the work surface in a single controlled operation. This reduces the number of personnel required to handle large case-stored materials.

Production Line Panel Handling

In high-throughput fabrication environments, the CFPT series supports repeated pick-tilt-place cycles with consistent vacuum attachment and powered tilt, maintaining production pace without operator fatigue. The AC power supply ensures no downtime between cycles for recharging.

Fabrication Shop Material Positioning

Fabricators working with large flat goods — such as stone slabs, glass panels, or sheet materials — can use the powered tilt to orient materials precisely for cutting, edging, or assembly operations. The adjustable pad configurations accommodate varied material dimensions.

Loading and Unloading Flat Goods for Transport

The lifter can be used to load flat materials into vertical transport racks or cases and unload them upon delivery, reducing manual handling risk at both ends of the transport process. The high load capacities support heavy slabs and panels typical in stone and glass trades.

Warehouse and Distribution Center Case Handling

In distribution environments where upright-cased goods must be repositioned or transferred, the CFPT series provides a powered, vacuum-based solution that outperforms manual or mechanical handling methods. The optional Telescoping Pad Arms and Movable Pad Mounts allow the lifter to adapt to different case and panel sizes without retooling.

Compatible Materials

• Glass panels and sheets
• Stone slabs (granite, marble, quartz)
• Large format ceramic and porcelain tile
• Sheet metal and metal panels
• Wood panels, engineered wood, and sheet goods
• Composite panels and laminated materials
• Plastic sheets and acrylic panels
• Fiber cement panels
• Any flat, non-porous or sufficiently non-porous surface compatible with vacuum pad attachment

Product Documents

• Operating Instructions — CFPT49AC / CFPT69AC
• Service Manual — AC-Voltage Power System
• Troubleshooting — Generic Leak Test
• Specifications Sheet — CFPT Series
• Instructions — Optional Vacuum Backup System
• Instructions — Optional Telescoping Pad Arms

Application Instructions

Before Using the Lifter

1. Read and understand all operating instructions before operating the lifter. This product is intended for use by skilled professionals only.
2. Record the serial number from the serial label on the product for future reference.
3. Take all required safety precautions appropriate for the work environment and load type.
4. Perform all required inspections and tests as outlined in the "Inspections and Tests" section of the operating instructions before each use.
5. Verify that the lifter's load capacity rating meets or exceeds the weight of the intended load.
6. Confirm the load surface characteristics are compatible with vacuum pad attachment (non-porous or sufficiently smooth surface).

Attaching the Pads to a Load

1. If using optional pad shutoffs, configure them as described in the "To Use the Optional Pad Shutoffs" section of the operating instructions.
2. Activate the power switch to generate airflow through the vacuum pump.
3. Position the lifter on the load, ensuring all vacuum pads contact the load surface evenly across the pad face.
4. Read the vacuum gauge to confirm that vacuum levels are within the acceptable operating range.
5. Verify the vacuum lift light indicates that sufficient vacuum has been achieved before attempting to lift.

Lifting, Moving, and Tilting the Load

1. Interpret the lift light status to confirm the load is safe to lift before raising.
2. Monitor vacuum indicators continuously during lifting and movement to detect any vacuum loss.
3. Control the lifter and load using the movable control pendant, keeping all personnel clear of the load path.
4. In case of a power failure during a lift, follow the "In Case of a Power Failure" procedures in the operating instructions immediately. If the optional Vacuum Backup System is installed, it will help prevent unexpected load release.
5. To tilt the load, use the tilt toggle switch on the control pendant to actuate the powered 90° tilt. Do not manually force the tilt mechanism.

Releasing the Pads and Post-Use Procedures

1. Once the load is safely positioned, use the vacuum release button (or lever-style vacuum control valve) to release the pads from the load in a controlled manner.
2. After use, perform all post-use procedures including storing and transporting the lifter as described in the operating instructions.
3. Follow the inspection schedule and perform any required maintenance before the next use cycle.

Technical Specifications

Safety Data Summary

Hazard Information

• This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (California Proposition 65 Warning).
• Electrical shock hazard — disconnect the power source as necessary to prevent electrical shock before servicing the lifter.
• Risk of unexpected load release if power is interrupted during a lift without the optional Vacuum Backup System installed.
• This product is intended for use by skilled professionals only — read and understand all operating instructions before operating.
• Service must only be performed by skilled technical professionals who have read and understood the operating instructions, especially the Inspections and Tests and Maintenance sections.

Personal Protective Equipment

• Follow all applicable site and trade-specific PPE requirements when operating overhead lifting equipment.
• Keep all personnel clear of suspended loads at all times during lifting and movement operations.
• Service personnel must follow appropriate electrical safety PPE when disconnecting or working on power components.

Safe Handling

• Read and understand the full operating instructions before use — do not operate without proper training.
• Perform all required inspections and tests before each use, including the Lifter/Load Compatibility Test, Operational Tests, Vacuum Test, and Rated Load Test.
• Do not exceed the rated load capacity of the lifter model in use.
• Monitor the vacuum gauge and lift light continuously during all lift and move operations.
• In case of a power failure during a lift, immediately follow the power failure procedures outlined in the operating instructions.
• Install the optional Vacuum Backup System to mitigate risks from accidental power outages or interruptions.
• Any service deficiency identified during routine inspection must be corrected before resuming normal operation.
• Disconnect the electrical connectors for the power cable before performing any service on the lifter.
• For California Proposition 65 information, visit www.P65Warnings.ca.gov.

Frequently Asked Questions

Q: What is the difference between the CFPT69AC and the CFPT49AC?
A: The primary difference is load capacity. The CFPT69AC (Stock# 97850) is rated for loads up to 750 lbs (340 kg), while the CFPT49AC (Stock# 97840) is rated for loads up to 500 lbs (225 kg). Both models share the same AC-corded power system, powered 90° tilt function, and are designed for production and fabrication applications involving upright case material handling.

Q: Does this lifter require a battery or can it run continuously?
A: The CFPT series runs on AC power from a standard electrical outlet, so there is no battery to charge or replace. This makes it well-suited for fixed production and fabrication environments where continuous operation throughout a shift is required without interruption for recharging.

Q: What happens if the power goes out while a load is suspended?
A: The operating instructions include specific procedures to follow in the event of a power failure during a lift. Additionally, Wood's Powr-Grip offers an optional Vacuum Backup System (Stock# 93756) that helps prevent unexpected load releases caused by accidental power outages or interruptions. This accessory is strongly recommended for any environment where power reliability is a concern.

Q: Can the lifter accommodate different load sizes?
A: Yes. Optional Telescoping Pad Arms allow the lifter to adjust to different load dimensions by extending or contracting the reach of the pad arms. Optional Movable Pad Mounts provide additional flexibility by allowing the pads themselves to be repositioned to match the load's geometry. Both accessories are available separately.

Q: Is this lifter suitable for field use or is it only for shop environments?
A: The CFPT series is an AC-corded lifter, which means it requires access to an AC electrical outlet during operation. It is best suited for production facilities, fabrication shops, warehouses, and job sites where a reliable AC power source is available at the point of use. For applications requiring fully portable, battery-powered operation, other Wood's Powr-Grip models may be more appropriate.

Q: Where can I find service and troubleshooting documentation for this lifter?
A: Full documentation is available for download above, including the Operating Instructions, Service Manual (AC-Voltage Power System, Stock# 35275), Troubleshooting guide (Generic Leak Test), and Specifications Sheet. Service should only be performed by skilled technical professionals who have read and understood all relevant documentation. For additional support, contact Wood's Powr-Grip at 800-548-7341 or visit www.WPG.com.
