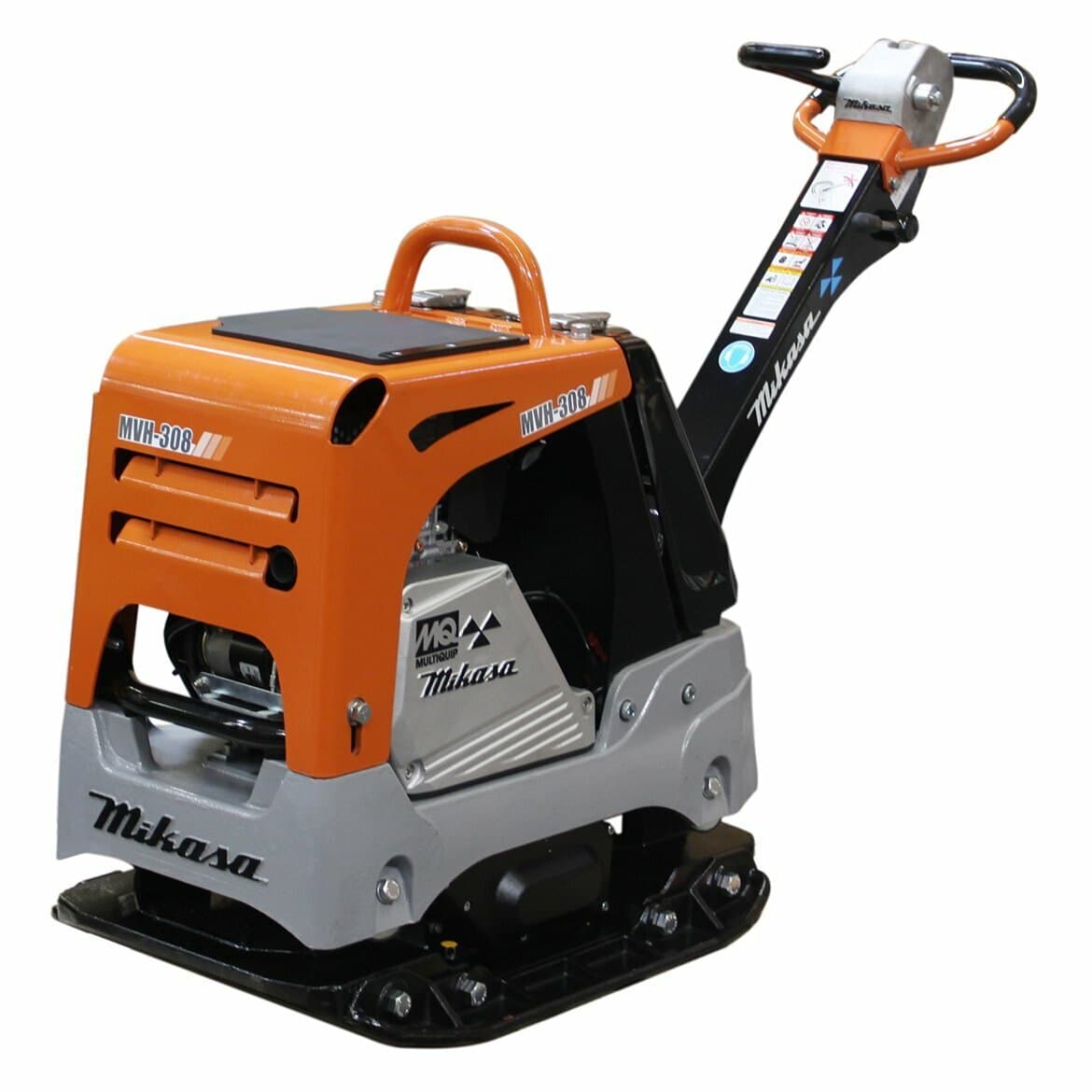

MVH308GH Reversible Plate Compactor

SKU MVH308GH
Original price $13,122.00 - Original price $13,122.00
Original price
$13,122.00
$13,122.00 - $13,122.00
Current price $13,122.00

MVH308GH Reversible Plate Compactor with over 10,000 pounds of impact force for efficient compaction of sand, gravel, and soils

10,116 lbs cf, Honda GX-270 Gas, 18" wide plate

Multiquip's Mikasa Reversible Plate Compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.

  • Reliable Honda GX270 engine.
  • Fold-out front cover for easy access to all maintenance points.
  • Hour/Tachometer to measure machine hour usage and engine RPM.
  • Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
  • Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
  • Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
  • Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
  • Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
  • Low profile base plate lowers the center of gravity dramatically improving travel speed.
  • Extension plates can be added or removed to operating working width up to 6 inches.

Unit Specifications
Centrifugal Force 10116 lbf 45 kN
Exciter Speed 4400 VPM
Plate Size 18 x 34 in
445 x 860 mm
Plate Size
with Extensions
24 x 34 in
600 x 860 mm
Max Forward Speed
Per Min.
79 ft 24 m
Honda GX-270
Dimensions & Weights
Overall Length 61 in 1540 mm
Overall Width 24 in 600 mm
Overall Height 48 in 1210 mm
Operating Weight 717 lb 325 kg

Notice: Features and equipment specifications are subject to change without notice.
