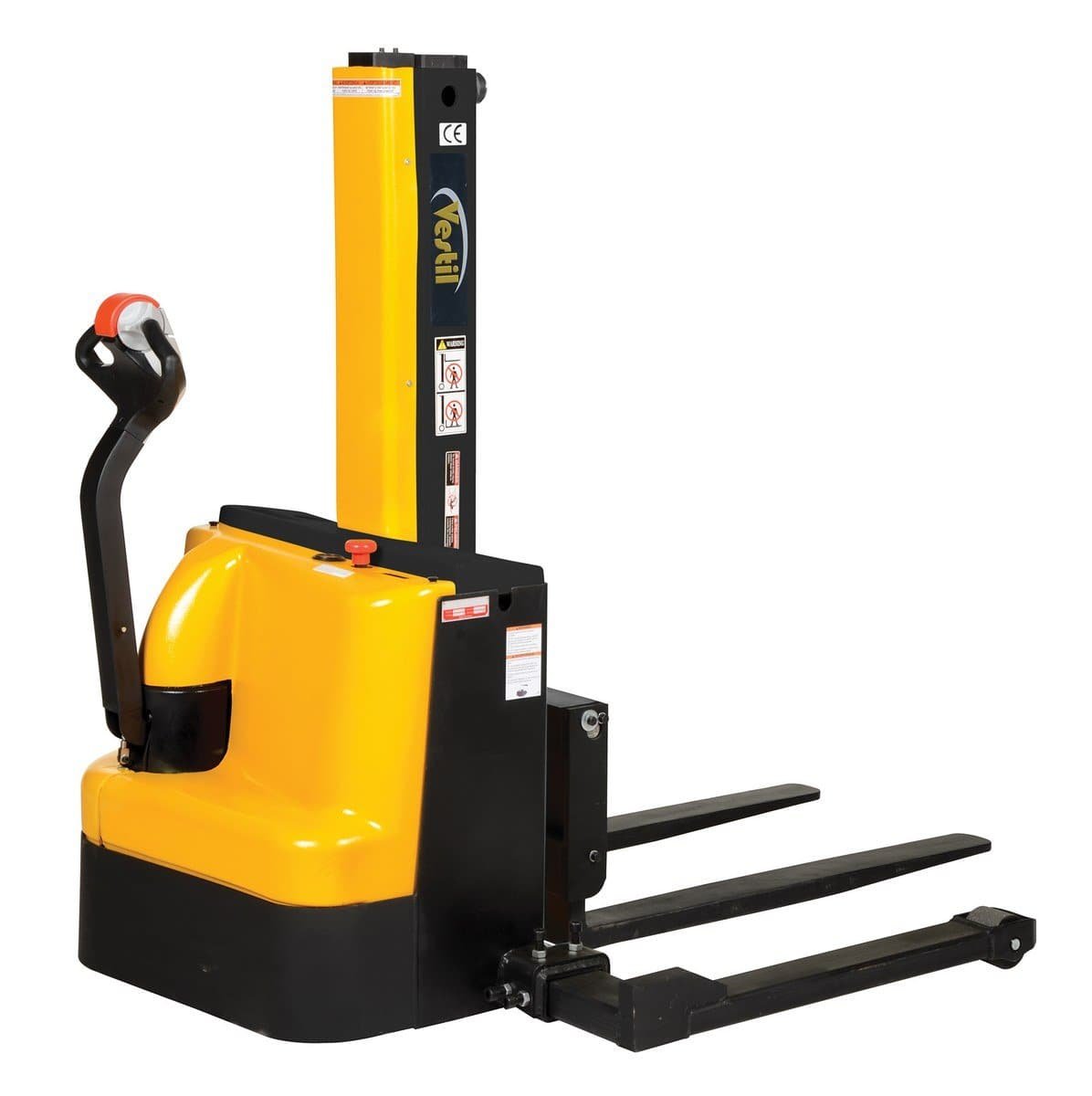

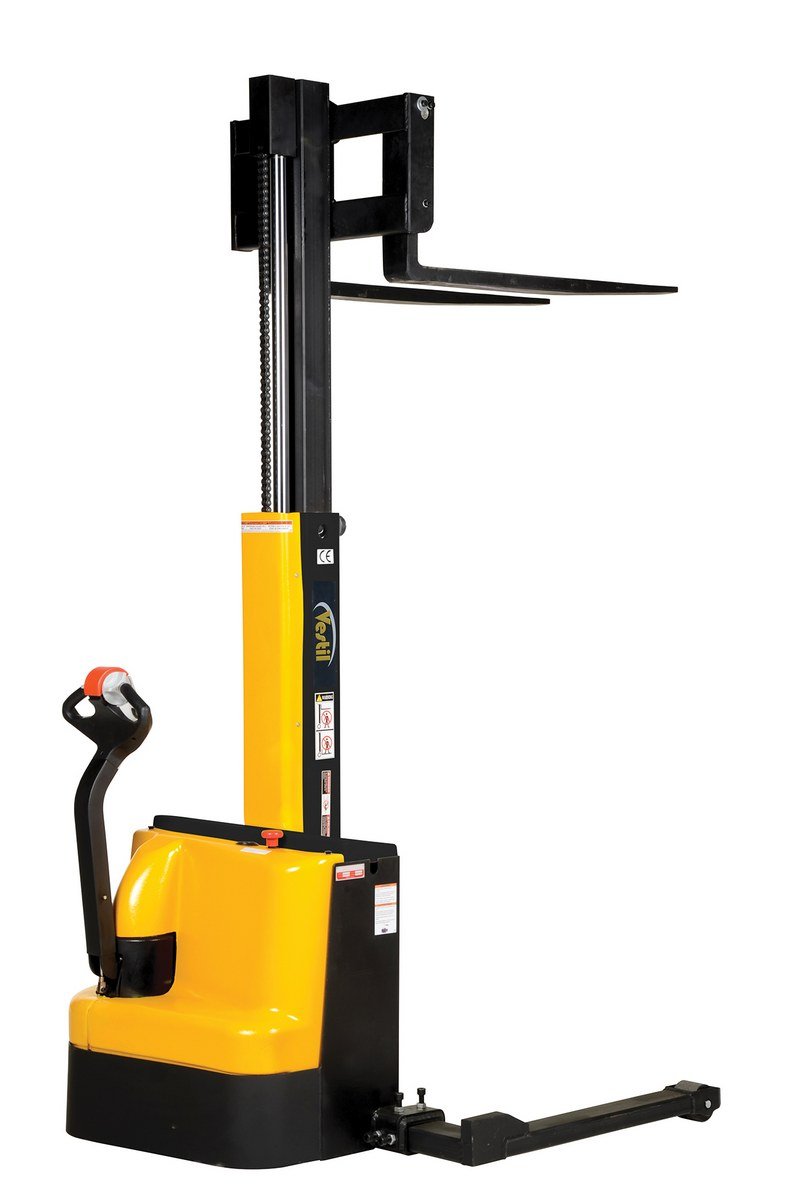

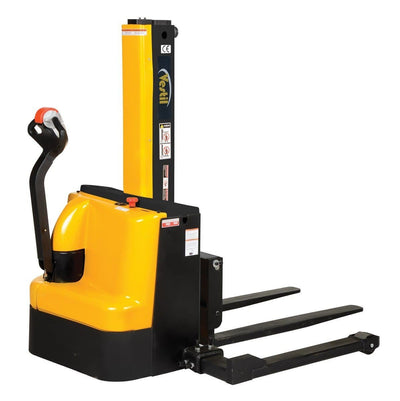

Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort.

High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse functionWhen actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.



All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Narrow Mast Stacker with Powered Drive and Powered Lift
Model Image PDF's Fork Size
(WxL)
Lowered
Height
Raised
Height
Uniform
Capacity
0"-62" RH
Uniform
Capacity
62"-118" RH
Wt.
(lbs)

Fixed Forks/ Adjustable Support Legs (works with pallets & skids)

SNM-62-FA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 26-3/4" x 42" 2-1/2" 62" 2,200 lbs. -- 1102

Adjustable Forks / Adjustable Support Legs (works with pallets & skids)

SNM15-62-AA* icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 8.3"to26-3/4"x42" 2-1/8" 62" 1,500 lbs. -- 1068
SNM-62-AA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 8.3"to26-3/4"x42" 2-1/8" 62" 2,200 lbs. -- 1106
SNM-90-AA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 8.3"to26-3/4"x42" 2-1/8" 90" 2,500 lbs. 2,000 lbs. 1502
SNM3-43-AA icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 8.3"to26-3/4"x42" 2-1/8" 43" 3,000 lbs. -- 1380

Fixed Forks Over Fixed Support Legs (works with skids only)

SNM15-62-FF-27* icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 26-3/4"x42" 3-3/8" 62" 1,500 lbs. -- 990
SNM-62-FF-21 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 21"x42" 3-3/8" 62" 2,200 lbs. -- 1170
SNM-62-FF-27 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 26-3/4"x42" 3-3/8" 62" 2,200 lbs. -- 1132
SNM-90-FF-27 Warranty PDFCompliance Certificate 26-3/4"x42" 3-3/8" 90" 2,200 lbs. 1,500 lbs. 1500
SNM3-43-FF-21 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 21"x42" 3-3/8" 43" 3,000 lbs. -- 1256
SNM3-43-FF-27 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 26-3/4"x42" 3-3/8" 43" 3,000 lbs. -- 1266
*AGM batteries (2) two 12V standard

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
