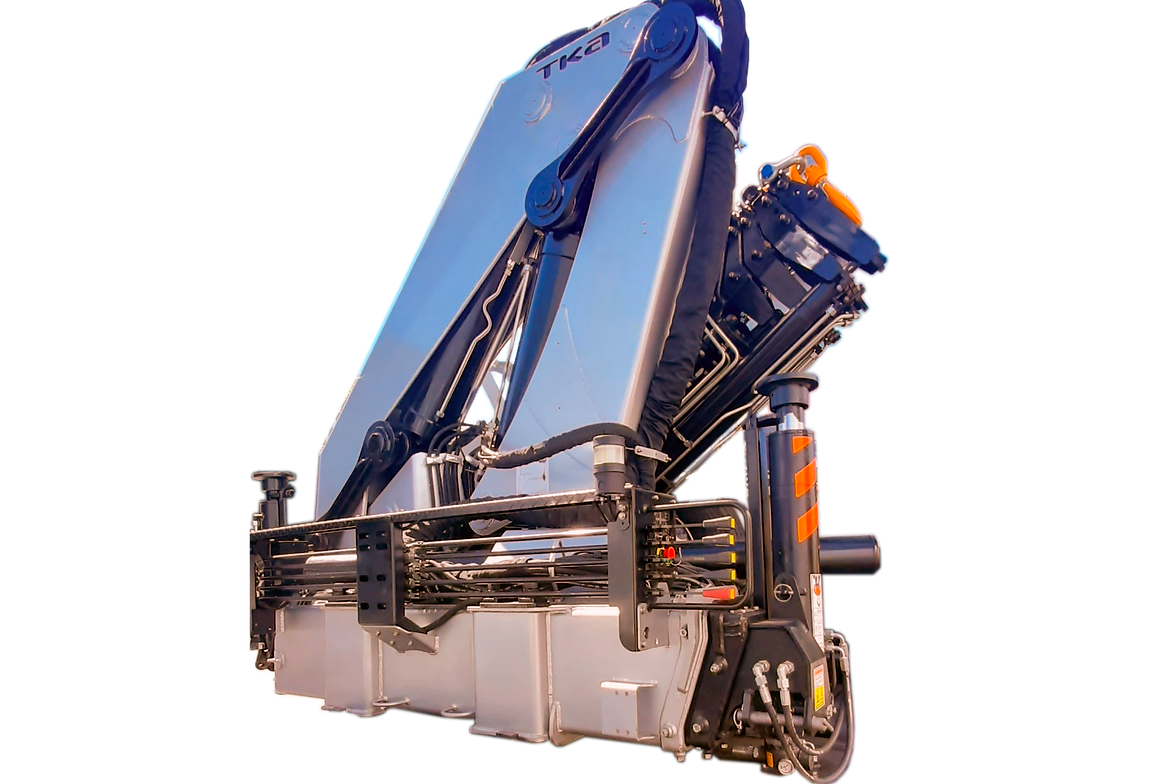

TKA Cranes TKA 50.700 C 6 Hydraulic Knuckle Boom
SKU# TKA 50.700 C 6H0M
$148,09524
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here
TKA Cranes TKA 50.700 C 6 Hydraulic Knuckle Boom
$148,09524
Unit price
/
Make a Selection
Technical specifications for this crane model are listed below.
Available Accessories
- Fly Jib Preparation (Remote Control, Load Limiter, Inclinometer, Hose Cable Reel) – Only available for 50700C 6H0M
- Fly Jib 4H1M
- Color different from California Orange (standard for TKA Cranes)
- Gear Pump
- Piston Pump
- Manual Pump (for basket safety use)
- Emergency Stop for Cranes Without Remote Control
- Electrical Load Limiter + Inclinometer + Load Limiter Light Indicator + Load Sound Indication (for cranes with remote control)
- Hydraulic Load Limiter
- Remote Control with 6 Levers (4 + 2 extras) + Emergency Stop
- Remote Control Scanreco with 6 Levers + Emergency Stop
- Mining Kit (Remote Control, Emergency Stop, Load Limiter, Truck Inclinometer, Blocked Work Over Truck Cabin)
- Remote Control Stabilizer Drive Kit for Cranes with Mining Kit
- Truck Inclinometer for Cranes Without Remote Control
- Winch with 1.5 Ton Capacity with Upper and Lower Pulleys
- Winch with 3.0 Ton Capacity with Upper and Lower Pulleys
- Drill or Winch Hydraulic Outlet
- Drill AND Winch Hydraulic Outlet
| Specification | Metric | Imperial |
|---|---|---|
| Max. Manual Vertical Reach (Base / Fly Jib) | 20,30 m / 30,30 m | 66.6 ft / 99.4 ft |
| Max. Hydraulic Vertical Reach (Base / Fly Jib) | 15,90 m / 25,74 m | 52.2 ft / 84.4 ft |
| Max. Manual Horizontal Reach (Base / Fly Jib) | 20,30 m / 29,40 m | 66.6 ft / 96.5 ft |
| Max. Hydraulic Horizontal Reach (Base / Fly Jib) | 15,90 m / 27,63 m | 52.2 ft / 90.6 ft |
| Stabilizer Spread (Front) | 7,7 m | 25.3 ft |
| Boom Elevation Angle | 80° | 80° |
| Max. Operating Pressure | 275 bar | 3,988 psi |
| Boom Slewing Angle | 400° | 400° |
| Slewing Torque | 6,74 tf·m | 48,789 lbf·ft |
| Dead Weight – Base (6H0M) | 5.650 kg | 12,457 lbs |
| Dead Weight – 6H0M + Fly Jib | 6.600 kg | 14,550 lbs |
| Fitting Space Required | 1,7 m | 5.6 ft |
| Oil Tank Capacity | 250 L | 66.0 gal |
| Minimum GVW Required | 23.000 kg | 50,706 lbs |
