Semi-Electric Fork-Over Stacker with 119.3" Lift Height

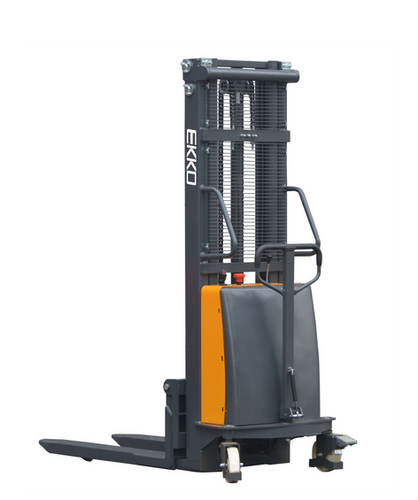

EKKO EA15C Semi-Electric Fork-Over Stacker — 3,300 lb Capacity with Power Lift to 119.3"

The EKKO EA15C Semi-Electric Fork-Over Stacker is a heavy-duty material handling solution engineered for contractors, warehouse operators, and trades professionals who need reliable, high-capacity lifting in space-constrained environments. With a 3,300 lb load capacity and a raised height of 119.3" (9.95 ft), it delivers forklift-level performance in a compact, maneuverable package. Power lifting is handled electrically while drive remains manual, making it well-suited for loading docks, stock rooms, manufacturing floors, and warehouse workflows where a full-powered ride-on unit is impractical.

Unlike fully manual stackers, the EA15C's electric power lift reduces operator fatigue during repeated lifting cycles. Its fork-over design allows the forks to straddle standard pallets without requiring specialized entry points, and its adjustable forks accommodate varying load widths that a fixed-fork unit cannot.

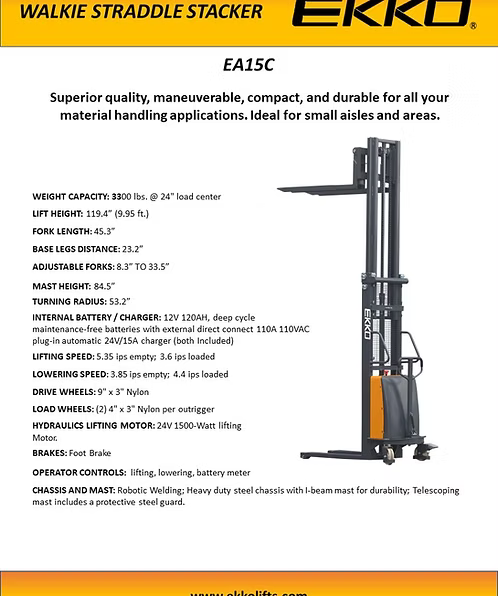

Technical Specifications

Key Features & Benefits

Electric Power Lift with Manual Drive

The EA15C uses electric power for all lifting operations while relying on manual operator-driven movement for travel. This semi-electric configuration significantly reduces physical strain during repeated lift cycles, keeping operators productive throughout a full shift without the added complexity and cost of a powered drive system.

Adjustable Forks

The forks are adjustable, allowing the operator to match fork spread to varying pallet sizes and load widths. This flexibility makes the EA15C useful across multiple job sites and load types without requiring additional equipment or attachments.

Internal 12V/20A Charger with 12V 120Ah Battery

The included internal charger eliminates the need for a separate charging unit, simplifying fleet management and reducing equipment clutter. Having the charger built in means the unit can be plugged in wherever a standard outlet is available, keeping downtime to a minimum.

Steel Construction with Robotic Welding

The EA15C is built from high-quality steel using robotic welding techniques, producing consistent, high-integrity weld seams throughout the frame. This construction approach is engineered to withstand daily usage, impacts, and demanding job site environments with lasting durability.

Ergonomic Handle

The ergonomic handle design reduces operator fatigue during manual drive operation, which is especially important in high-volume environments where the unit is in near-continuous use. A well-designed handle also improves operator control and reduces the risk of strain injuries over a long work day.

3-Year Limited Warranty

A 3-year limited warranty provides contractors and fleet managers with meaningful coverage and peace of mind on a capital equipment purchase. This warranty period reflects the manufacturer's confidence in the durability and build quality of the EA15C.

Common Applications

Loading and Unloading Trucks

The EA15C's 3,300 lb capacity and 45.3" fork length make it well-suited for moving palletized loads on and off delivery trucks at loading docks and job site staging areas.

Loading Dock Operations

Its compact, maneuverable form factor allows operators to navigate the confined spaces typical of loading dock environments where a full-size forklift cannot easily operate.

Stock Room Organization

With a raised height of 119.3", the EA15C can stack and retrieve palletized materials on elevated racking systems commonly found in stock rooms and supply warehouses.

Manufacturing Floor Support

On manufacturing floors where materials and components need to be moved between production areas, the EA15C provides reliable lifting without requiring a powered-drive machine in pedestrian-heavy zones.

Warehouse Workflow Optimization

The EA15C supports efficient warehouse operations by enabling a single operator to move and stack heavy palletized loads without relying on a full electric forklift, reducing equipment costs while maintaining productivity.

Compatible Materials

• Standard palletized loads up to 3,300 lbs
• Wood pallets
• Plastic pallets
• Boxed and crated materials
• Bagged bulk materials on pallets
• Steel and construction supply stock on pallets

Frequently Asked Questions

Q: Does the EA15C include a battery and charger?
A: Yes. The EA15C comes with a 12V 120Ah battery and an internal 12V/20A charger included in the unit.

Q: What is the maximum lift height of the EA15C?
A: The EA15C raises loads to a maximum height of 119.3" (9.95 ft).

Q: Is the drive powered or manual on the EA15C?
A: The drive is manual — the operator pushes the unit to travel. Only the lifting function is electrically powered, which is why it is classified as a semi-electric stacker.

Q: Are the forks adjustable to fit different pallet sizes?
A: Yes. The EA15C features adjustable forks, allowing operators to set the fork spread to match varying pallet widths and load configurations.

Q: What warranty does the EA15C carry?
A: The EA15C is covered by a 3-year limited warranty.
