Semi-Electric Straddle Stacker, 3,300 lb Capacity with 119.4" Power Lift

EKKO EA15B Semi-Electric Straddle Stacker — 3,300 lb Capacity with 119.4" Power Lift

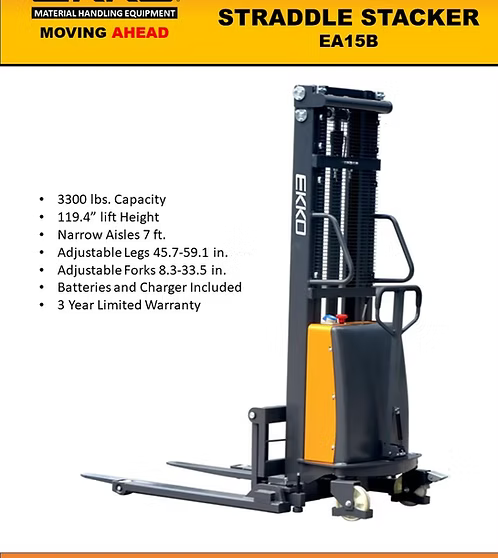

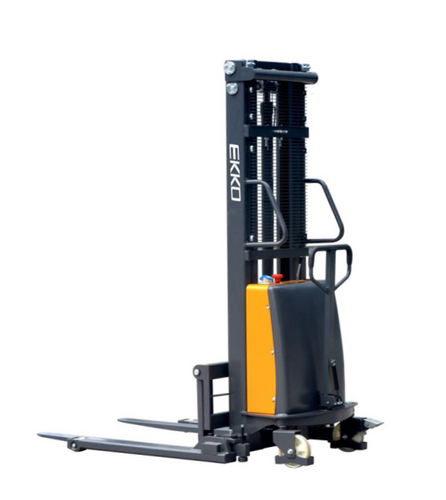

The EKKO EA15B Semi-Electric Straddle Stacker combines the versatility of a forklift with the maneuverability of a pallet stacker, delivering 3,300 lbs of load capacity and a raised height of 119.4" (9.95 ft). Designed for contractors and trades professionals, it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehousing environments. Power lifting is handled electrically while drive is manual, making it a cost-effective solution for operations that require reliable vertical lift without full electric drive complexity.

Unlike standard pallet jacks or basic manual stackers, the EA15B features adjustable forks and adjustable straddle legs, allowing it to adapt to varying pallet sizes and aisle configurations. Robotic-welded steel construction and an included battery and internal charger mean the unit arrives ready to work with no additional equipment purchases required.

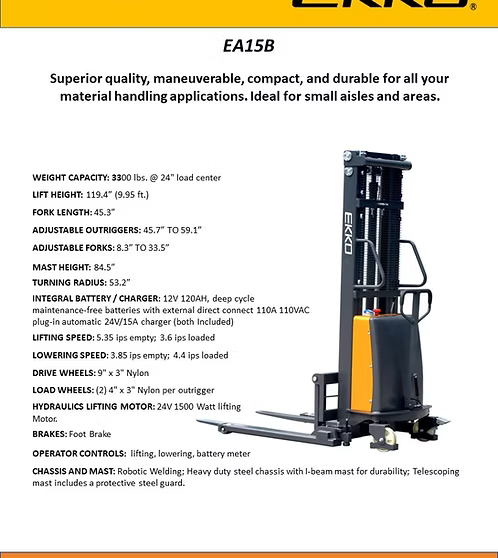

Technical Specifications

Key Features & Benefits

Power Lifting with Manual Drive

The electric power lift eliminates the physical strain of raising heavy loads up to 3,300 lbs, while manual drive keeps the unit mechanically simple and easy to maintain on a job site. This semi-electric configuration is well-suited for environments where loads are frequently raised but travel distances are short.

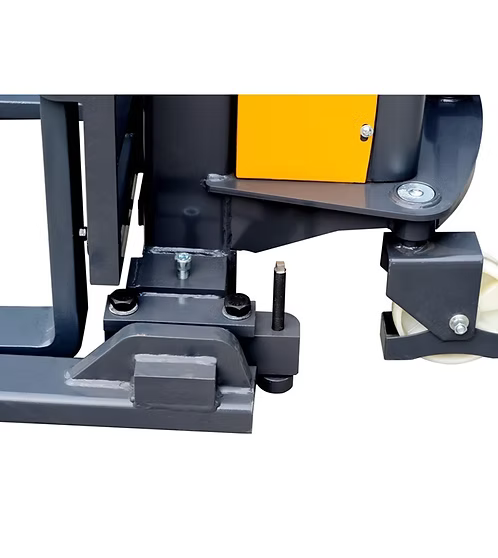

Adjustable Forks and Straddle Legs

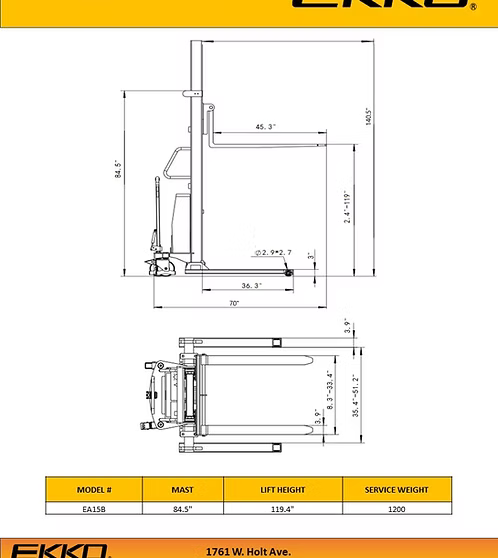

Fork width adjusts from 8.3 to 33.4 inches and straddle legs adjust from 43.5 to 59.1 inches, accommodating a wide range of pallet sizes and allowing the unit to adapt to different aisle widths. Contractors working across multiple sites or with varied pallet configurations benefit from this built-in flexibility without needing multiple units.

Included 12V / 120Ah Battery and Internal Charger

The battery and 12V/15A internal charger are included with the unit, eliminating the need for separate charging infrastructure purchases. The internal charger design allows the stacker to be plugged in wherever a standard outlet is available, simplifying deployment in warehouse and job-site environments.

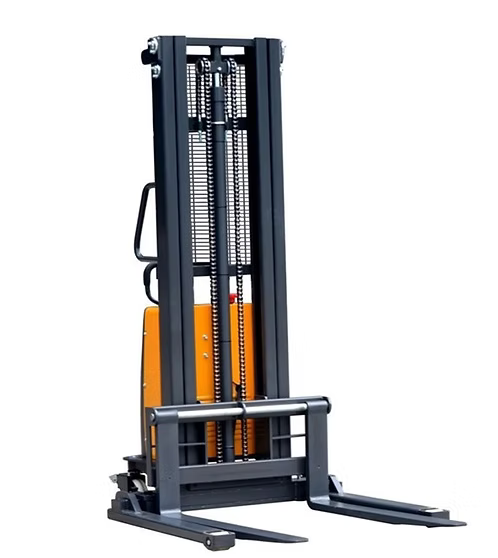

Robotic-Welded Steel Construction

High-quality steel combined with robotic welding provides consistent, repeatable weld quality throughout the frame, contributing to structural integrity under demanding load and cycle conditions. This construction approach is designed to withstand varied terrain, usage patterns, impact, and directional changes.

3-Year Limited Warranty

A 3-year limited warranty provides contractors and fleet managers with long-term coverage assurance, reducing risk on a capital equipment purchase. This warranty period reflects confidence in the durability of the unit's materials and build quality.

Common Applications

Loading and Unloading Trucks

The EA15B's 119.4" raised height and 3,300 lb capacity make it well-suited for transferring heavy palletized loads between ground level and truck beds at loading docks.

Loading Dock Operations

Designed for dock environments, the stacker can efficiently move and stack palletized freight arriving or departing from dock-height platforms.

Stock Room Management

In stock rooms with racking systems, the nearly 10-foot lift height allows operators to place and retrieve palletized inventory at elevated storage levels.

Manufacturing Floors

The adjustable legs and forks allow the unit to navigate varying floor-level pallet configurations common in manufacturing environments, keeping material flow moving without interruption.

Warehousing

The combination of adjustable forks, adjustable straddle legs, and substantial lift height makes the EA15B a versatile tool for general warehousing tasks including put-away, retrieval, and load staging.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized boxed goods
• Palletized bagged materials
• Palletized equipment and machinery components

Product Documents

• EKKO Lifts Line Card (PDF)

Frequently Asked Questions

Q: Is the battery and charger included with the EA15B?
A: Yes. The EA15B includes a 12V / 120Ah battery and an internal 12V / 15A charger at no additional cost.

Q: What is the maximum lift height of the EA15B?
A: The EA15B raises loads to a maximum height of 119.4 inches (9.95 feet).

Q: Can the forks and straddle legs be adjusted to fit different pallet sizes?
A: Yes. The forks are adjustable from 8.3 to 33.4 inches and the straddle legs are adjustable from 43.5 to 59.1 inches to accommodate different pallet widths and aisle configurations.

Q: What warranty does the EA15B carry?
A: The EA15B is covered by a 3-year limited warranty.

Q: Is the drive on the EA15B electric or manual?
A: The EA15B uses manual drive for horizontal movement and electric power for the lifting function, classifying it as a semi-electric stacker.
