Semi-Electric Straddle Stacker EA15D with 138" Lift Height

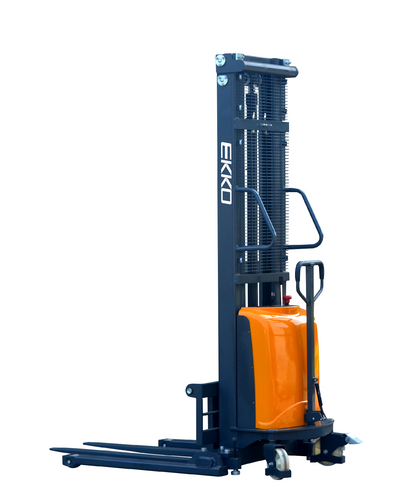

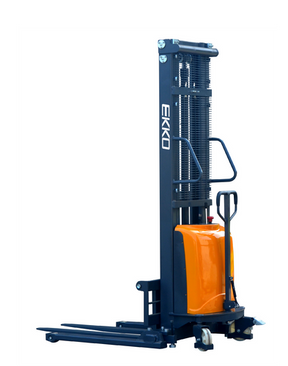

EKKO EA15D Semi-Electric Straddle Stacker — 3,300 lb Capacity, 138" Lift Height

The EKKO EA15D Semi-Electric Straddle Stacker combines the versatility of a forklift with the maneuverability of a pallet stacker, purpose-built for contractors and trades professionals who need reliable material handling in demanding environments. Rated for 3,300 lbs and capable of raising loads to 138" (11.5 ft), it is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors, and warehouse operations. Built from high-quality steel with robotic welding, this stacker is engineered to withstand varied terrain, heavy usage, impact, and frequent directional changes.

Unlike fully manual stackers, the EA15D uses power lifting to raise loads with minimal operator effort, while retaining manual drive for precise, low-speed positioning in tight spaces. The included 12V 120Ah battery with built-in charger means no separate charging equipment to source or manage on site.

Technical Specifications

Key Features & Benefits

Power Lifting with Manual Drive

The EA15D uses electric power to raise and lower loads up to 138", eliminating the physical strain of manual pump-action lifting. Manual drive keeps the unit simple, precise, and easy to maneuver in tight loading dock or stockroom environments where powered drive could be excessive.

Adjustable Forks (8.3" – 33.5")

The wide fork width adjustment range accommodates a variety of pallet sizes and load configurations without requiring a separate machine or attachment. This flexibility is critical on job sites and in warehouses where pallet dimensions vary by supplier or material type.

Adjustable Straddle Legs (43.5" – 59.1")

Adjustable legs allow the stacker to straddle different pallet footprints and work around low-profile loads or racking systems. This adaptability reduces the need for multiple machines to handle varying load widths.

Included 12V 120Ah Battery with Built-in Charger

The battery and integrated charger are included out of the box, reducing upfront accessory costs and simplifying setup. A built-in charger means operators can recharge the unit wherever a standard outlet is available without managing a separate piece of charging equipment.

Steel Construction with Robotic Welding

Robotic welding produces consistent, high-integrity weld joints throughout the frame, improving structural reliability under repeated heavy loads. Heavy-gauge steel construction is built to withstand the impacts, directional changes, and continuous use typical of commercial and industrial jobsite conditions.

Ergonomic Handle

The ergonomic handle reduces operator fatigue during extended use, supporting productivity across full shifts on loading docks and warehouse floors.

Common Applications

Loading and Unloading Trucks

The EA15D's 3,300 lb capacity and 45.3" fork length make it well-suited for moving palletized loads on and off delivery trucks at loading docks.

Loading Dock Operations

Power lifting to 138" allows operators to stack and retrieve loads at dock height quickly and with minimal physical exertion.

Stockroom Material Handling

Adjustable forks and straddle legs allow the stacker to navigate stockroom racking and varied pallet configurations efficiently.

Manufacturing Floor Use

The durable steel frame and manual drive allow precise positioning of materials on busy manufacturing floors where control and reliability are critical.

Warehousing

The combination of an 11.5 ft lift height and wide load capacity supports multi-level racking operations in warehouse environments.

Compatible Materials

• Standard wood pallets
• Plastic pallets
• Palletized construction materials
• Boxed and crated goods
• Bagged materials on pallets

Frequently Asked Questions

Q: Does the EA15D include a battery and charger?
A: Yes. The unit ships with a 12V 120Ah battery and features a built-in charger, so no separate charging equipment is required.

Q: What is the maximum lift height?
A: The EA15D raises loads to a maximum height of 138" (11.5 ft).

Q: Can the forks be adjusted to fit different pallet sizes?
A: Yes. The forks are adjustable from 8.3" to 33.5" in width, and the straddle legs are adjustable from 43.5" to 59.1" to accommodate different load footprints.

Q: Is the drive powered or manual?
A: The EA15D uses manual drive for forward and reverse movement, while the lift mechanism is electrically powered. This combination provides precise operator control during positioning while reducing effort during lifting.

Q: What warranty is included?
A: The EA15D is backed by a 3 Years Limited Warranty.
