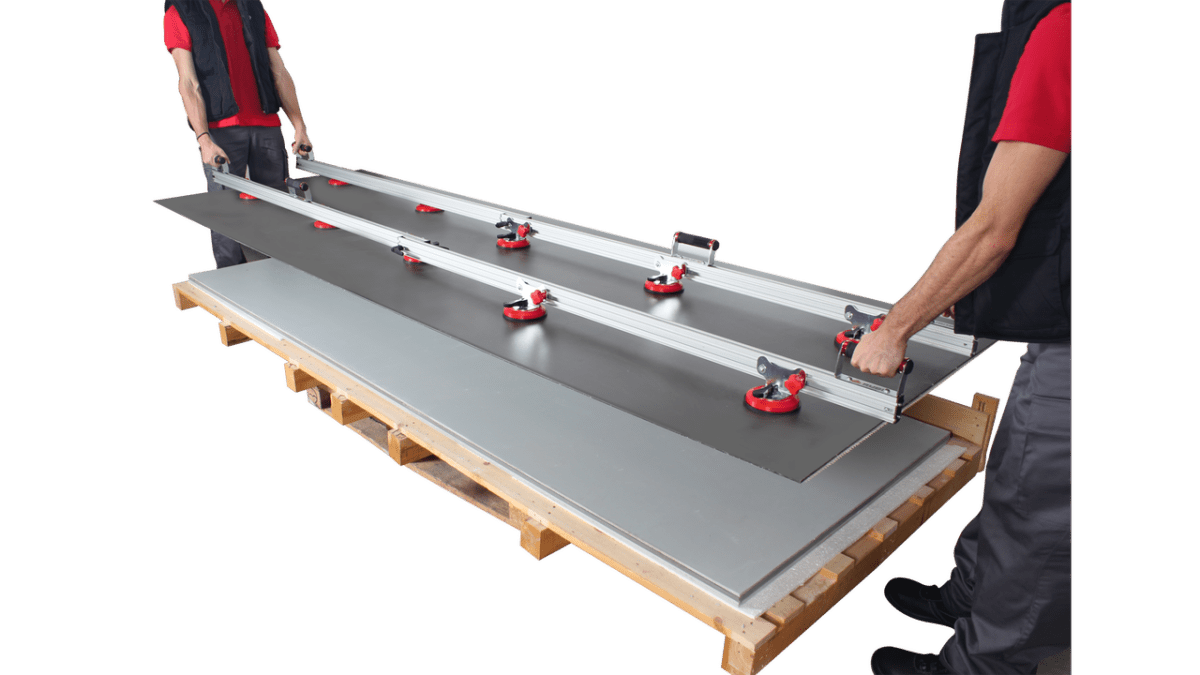

The transport system SLIM EASYTRANS is specially designed for the handling of porcelain sheets of large format and fine thickness up to 320 cm in length.


The SLIM EASYTRANS can be used as a complement to the cutting systems for ceramic sheet: SLIM CUTTER and TC-125.

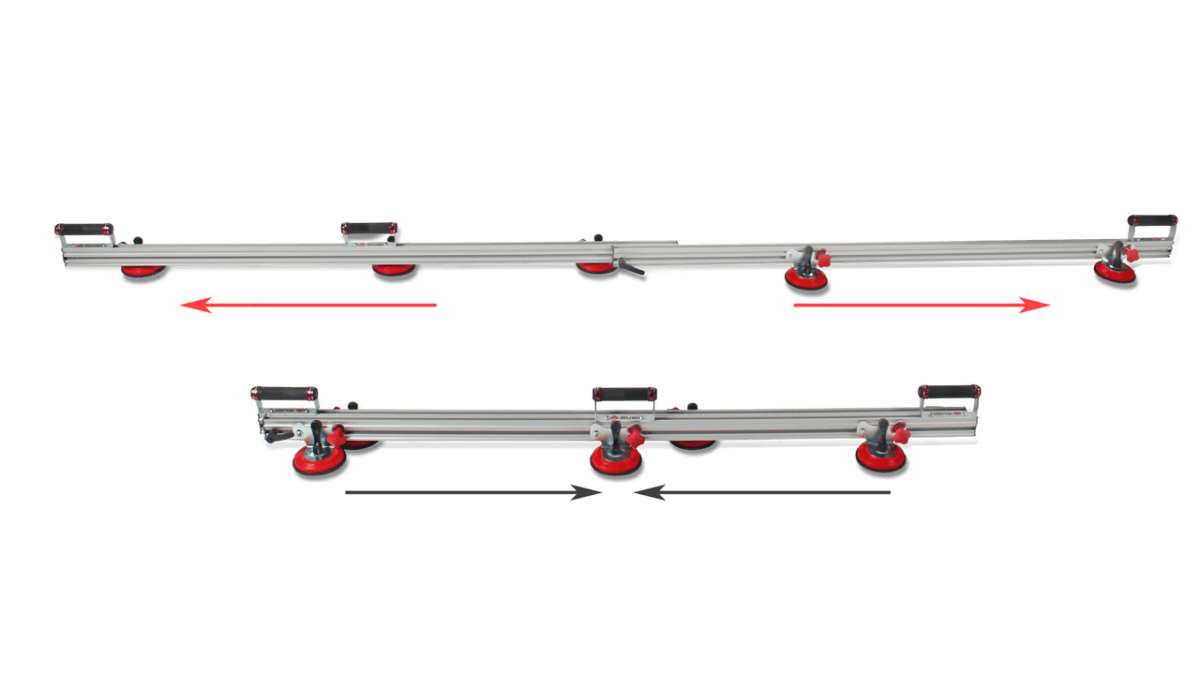

It consists of a set of two extruded aluminum guides, retractable and adjustable from 160 to 320 cm.


Thanks to the 10 suction cups, the setter can adjust the fixing points, ensuring the correct handling of the porcelain sheets. For a correct fixation of the system, we must check that the surface of the sheet is clean of dust or other debris. The suction cups of the SLIM EASYTRANS conveyor adapt to smooth surfaces as well as rough or slightly structured surfaces.

The set has 4 handles (2 per guide) that can be adjusted and positioned over the entire length of the guide, facilitating and adapting the SLIM EASYTRANS at every moment and format.

The load capacity of the set is 60 kg. (standard equipment), but can be extended up to a maximum of 110 kg, incorporating, for each additional 10 kg, two additional suction cups.

In the design of all RUBI products, the RUBI R & D team, made up of engineers and professionals from various parts of the world, has been vital. The fact of receiving information from many parts of the world offers us the possibility of having a global vision of the business and the needs of professionals in order to design tools adapted to each market.

In addition, as part of the strategy, RUBI continuously researches according to the evolution of the materials and based on the requirements received by the main ceramic tile manufacturers from around the world, from the approximately 30,000 RUBI distributors, and from the most of 40,000 registered end users in Club RUBI. Thanks to all this, RUBI makes the most complete and adapted range of tools on the market available to the professional ceramic tile setter. Everything that is needed for all phases of the installation of ceramic tile.
Description

Materials

  • To transport large porcelain slabs.

Features

  • Ideal system for easy transportation of large format porcelain sheets.
  • System can be used as accessory to SLIM SYSTEM CUTTER (Ref. 18911).
  • Includes two extendable & adjustable guides 62.99" (160cm) & 125.9" (320cm) with 10 suction pads.
  • Maximum load: 132.2 lb. (60kg.)
  • For sheets up to 9.8 ft. (3m)
