Tilt Utility Aluminum Open Trailer

Legend TU Tilt Utility Aluminum Open Trailer — Rampless Loading for ATV, UTV & Landscaping Equipment

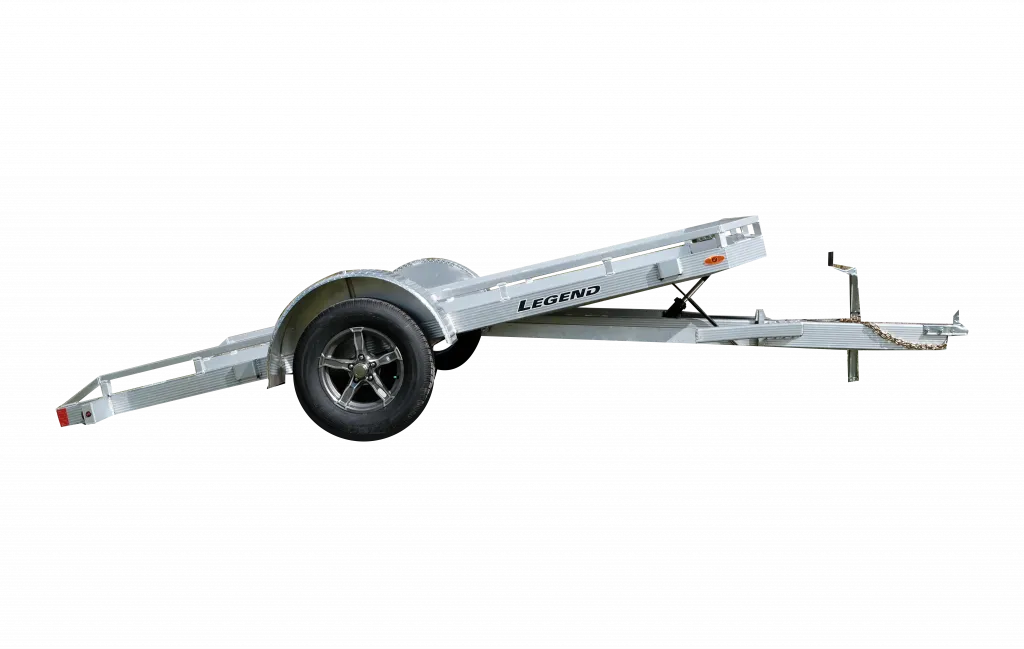

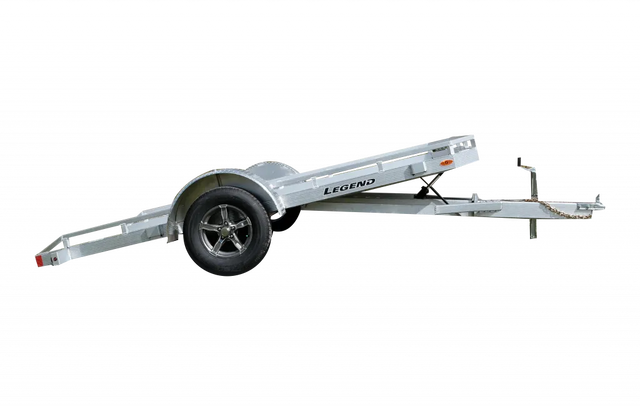

The Legend TU Tilt Utility Aluminum Open Trailer is a single-axle, all-aluminum utility trailer engineered for contractors, landscapers, and powersports operators who demand loading convenience without sacrificing durability. The dampened tilt deck eliminates the need for ramps or gates, allowing ground-level loading of ATVs, UTVs, golf carts, lawnmowers, and general cargo. Built on an integrated F-channel aluminum frame with an extruded aluminum floor and triple-tongue, the TU is available in 7×12 and 7×14 configurations to match varying payload and length requirements.

Technical Specifications

Model Dimensions

The all-aluminum construction of the TU sets it apart from steel utility trailers by delivering a corrosion-resistant platform that maintains structural integrity over years of outdoor exposure. The dampened tilt mechanism provides a controlled, ground-level loading experience that steel ramp-gate trailers cannot match, reducing load/unload time on every job site visit.

Key Features & Benefits

Dampened Tilt Deck

The rear dampened tilt system lowers the deck to ground level for smooth, controlled loading without ramps or gates. This is a significant time-saver for contractors repeatedly loading and unloading equipment across multiple job sites in a single day.

All-Aluminum Construction

The integrated F-channel aluminum frame, extruded aluminum floor, and 3″ × 6″ extruded aluminum triple tongue resist corrosion that would degrade a comparable steel trailer over time. For contractors working in wet, coastal, or road-salt environments, this translates directly to lower long-term maintenance costs.

EZ-Lube Torsion Axle

The 3,500 lb EZ-Lube torsion axle simplifies routine bearing maintenance by allowing grease to be added without disassembly. Torsion suspension also provides independent wheel articulation, reducing shock transfer to the cargo deck on rough terrain.

Surface Mount LED Lighting

Surface-mounted LED exterior lights provide high visibility and long service life compared to incandescent alternatives. LEDs are less susceptible to vibration failure, reducing roadside lighting issues during transport.

Standard Stake Pockets & 4 Two-Hole Tie Downs

Integrated stake pockets and four 2-hole tie downs give operators multiple load-securing points without aftermarket additions. This is particularly useful when hauling irregularly shaped equipment or mixed cargo loads.

Aluminum Wheels (Gunmetal or Black)

Aluminum wheels reduce unsprung weight compared to steel wheels and resist corrosion. The choice of gunmetal or black finish allows contractors to match fleet aesthetics.

Common Applications

ATV / UTV Transport

The dampened tilt deck and 79″ width between fenders accommodate standard ATV and UTV footprints, allowing drive-on loading without ramps.

Golf Cart Hauling

The ground-level tilt loading is ideal for golf carts, which lack the ground clearance to navigate traditional ramp angles safely.

Landscaping Equipment

Zero-turn mowers, walk-behind mowers, and other landscaping equipment can be driven directly onto the tilt deck, streamlining daily crew dispatch.

Powersports

The TU is suited for hauling motorcycles, dirt bikes, and other powersports equipment where low-angle loading is preferred.

General Cargo

Stake pockets and tie-down points make the TU a versatile platform for general contractor cargo loads beyond equipment transport.

Compatible Materials

• ATVs and UTVs
• Golf carts
• Zero-turn and walk-behind lawnmowers
• Motorcycles and powersports equipment
• General contractor cargo and supplies

Product Documents

• Tilt Utility | Single Axle | Product Guide PDF
• Manufacturer's Limited Warranty Information

Warranty

Legend Open Series Limited Warranty Coverage

The Legend TU falls under the Legend Open Series warranty tier. Structural warranty covers the main frame, sub frame, bottom rails, cross-members, wall uprights, and top rails against defects in materials and workmanship arising from normal use. Components warranted by their respective manufacturers — including tires, axles, brake components, suspension, couplers, jacks, and lights — are excluded from the Legend Limited Warranty and covered separately by those manufacturers.

Key Warranty Conditions:

• Warranty is non-transferable and applies to the original retail purchaser only.
• Warranty registration card must be completed and returned to Legend Manufacturing within 15 days of purchase; failure to do so voids all express warranties except as prohibited by law.
• Defects must be reported to the Warrantor or original dealership within 15 days of discovery.
• Warranty does not cover negligence, accident, abuse, misuse, overload, improper hitching, improper storage, or unauthorized repairs or alterations.
• Normal wear items (struts, lights, bearings, brakes, brake linings, tires, batteries) are not covered for wear.
• Painted finish is explicitly excluded due to inherent conditions of normal use, including chipping, scratching, fading, and damage from road debris, salt, tar, or weather.
• Transportation costs to or from any repair facility are the responsibility of the purchaser.
• Warrantor's sole responsibility is repair or replacement of parts at Legend's factory; offsite repair may be arranged with prior written approval at Warrantor's discretion.
• Disputes are governed under the laws of the State of Michigan, with exclusive jurisdiction in Gratiot County, Michigan.

Frequently Asked Questions

Q: What sizes are available for the single-axle TU?
A: The Legend TU is available in 7×12 and 7×14 configurations for the single-axle model.

Q: Does the TU require ramps for loading?
A: No. The dampened tilt deck lowers to ground level, eliminating the need for ramps or gates when loading ATVs, UTVs, golf carts, and similar equipment.

Q: What is the G.V.W.R. of the TU?
A: The G.V.W.R. is 2,990 lbs.

Q: What wheel finish options are available?
A: The TU is available with gunmetal or black aluminum wheels.

Q: Is the structural warranty transferable to a new owner?
A: No. The Legend Limited Warranty is non-transferable and applies only to the original retail purchaser.

Q: Are axle and tire components covered under the Legend warranty?
A: No. Axles, tires, brake components, suspension, couplers, jacks, and lights are warranted by their respective manufacturers and are excluded from the Legend Limited Warranty.
