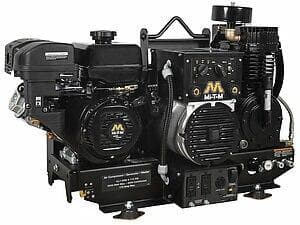

Two Stage Gasoline Base-Mount - AGW-SM14-B
Two Stage Gasoline Base-Mount - AGW-SM14-B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Safe & Secure Payments.
The combination air compressor, generator, and arc welder is the ideal tool for field repairs in remote locations
Dependability of high quality equipment is vital in every industry, so is working with equipment that can save both time and money. The combination air compressor, generator, and arc welder is the ideal tool for field repairs in remote locations. Save room on your service truck with this versatile all-in-one solution.
AGW Series Operation
Generator Mode:AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode:DC current only · Engine must be running full throttle · Selector switch must be set to full throttle
Features
Compressor Pump:Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator:Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder:Amperage selection switch, 170A maximum
Frame: 16-gauge powder coated belt guard
Components:Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch fly wheel
*Equipped with 150-PSI maximum rated regulator.
Specifications
-
Displacement/ Engine
420cc Mi-T-M OHV with Electric Start - Battery and Battery Cables Not Included
-
Rated Speed
3600 RPM
-
CFM @ 90 PSI
16.4
-
CFM @ 175 PSI*
15.7
-
Compressor
Two Stage, Cast Iron
-
Tank Size
Not Applicable - Base-Mount Model
-
Max. AC Output
5000 watts
-
Rated AC Output
4500 watts
-
Alternator Wattage: Cont. On-Load @ 90 PSI
3000 watts
-
Alternator Wattage: Cont. On-Load @ 175 PSI
2500 watts
-
Frequency/Voltage
60Hz/120V/240V
-
Max. Amps (120V/240V)
41.5/20.8 Off-Load
-
Cont. Amps (120V/240V)
37.5/18.8 Off-Load
-
Receptacles
(2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock
-
Duty Cycle (10 Min. Run Time)
150A @ 100%
-
DC Voltage
50-170A Working Range
-
Fuel Tank
1.85 gallon
Weights & Dimensions
-
Net Weight
384.00 lbs.
-
Shipping Weight
449.00 lbs.
-
Length
49.00 in.
-
Width
22.00 in.
-
Height
28.50 in.
Options
-
AX-0070 Battery Tray, Box and 2-Foot of Cables
Attaches to engine side of unit
