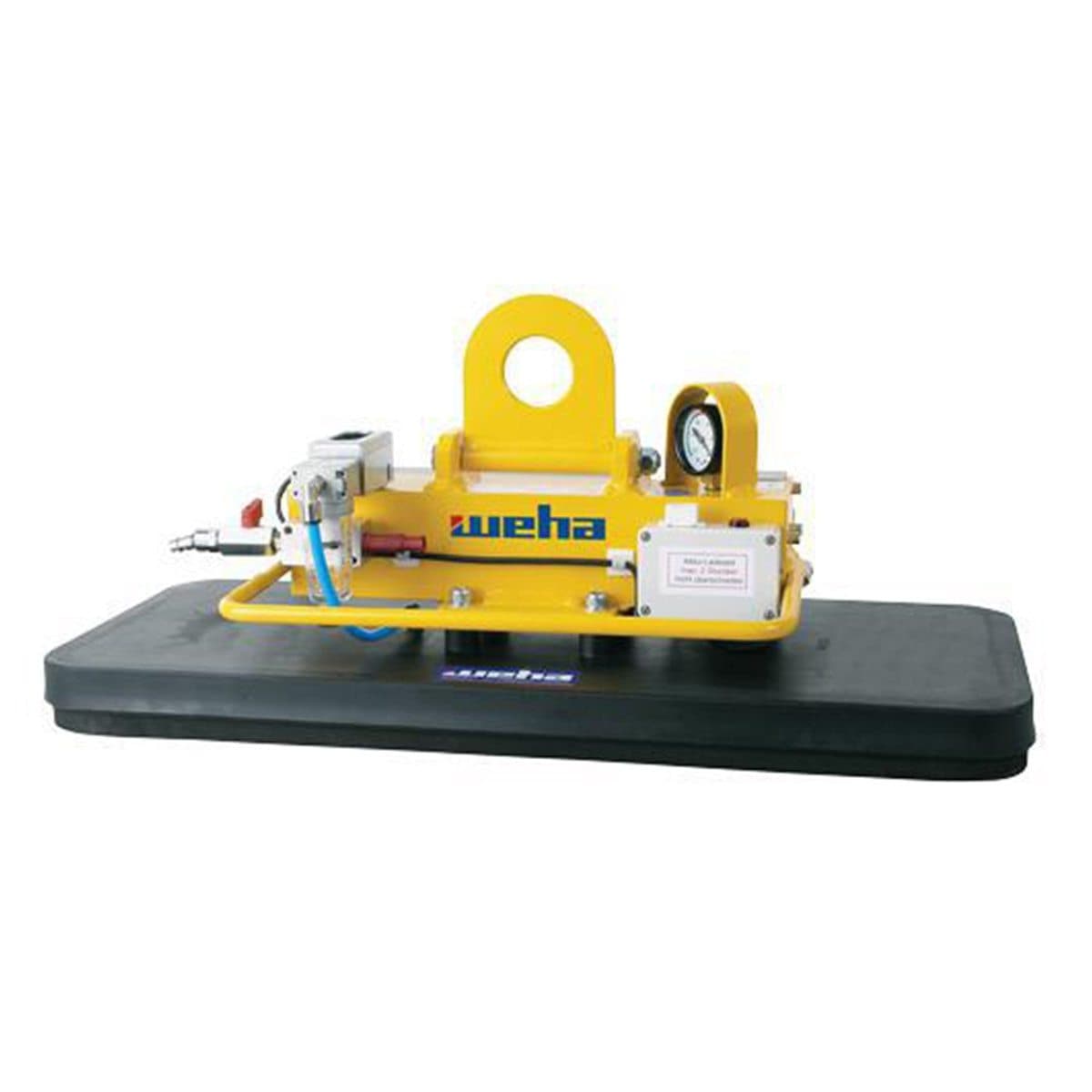

Weha T800 Pneumatic Vacuum Lifter Unipad Air Only. For Granite, Marble, Engineered Stone, and Glass

Technical Documents

T800 Pneumatic Vacuum Lifter can be connected to an air compressor that operates via a venturi system.
Comes with a multi-filter and water trap Prevents the penetration of dust and moisture.
Protects the pneumatic structural parts against premature wear Very visible pressure gauge.
Comes with a built in safety-vacuum tank made of aluminum material (non-corrosive!)

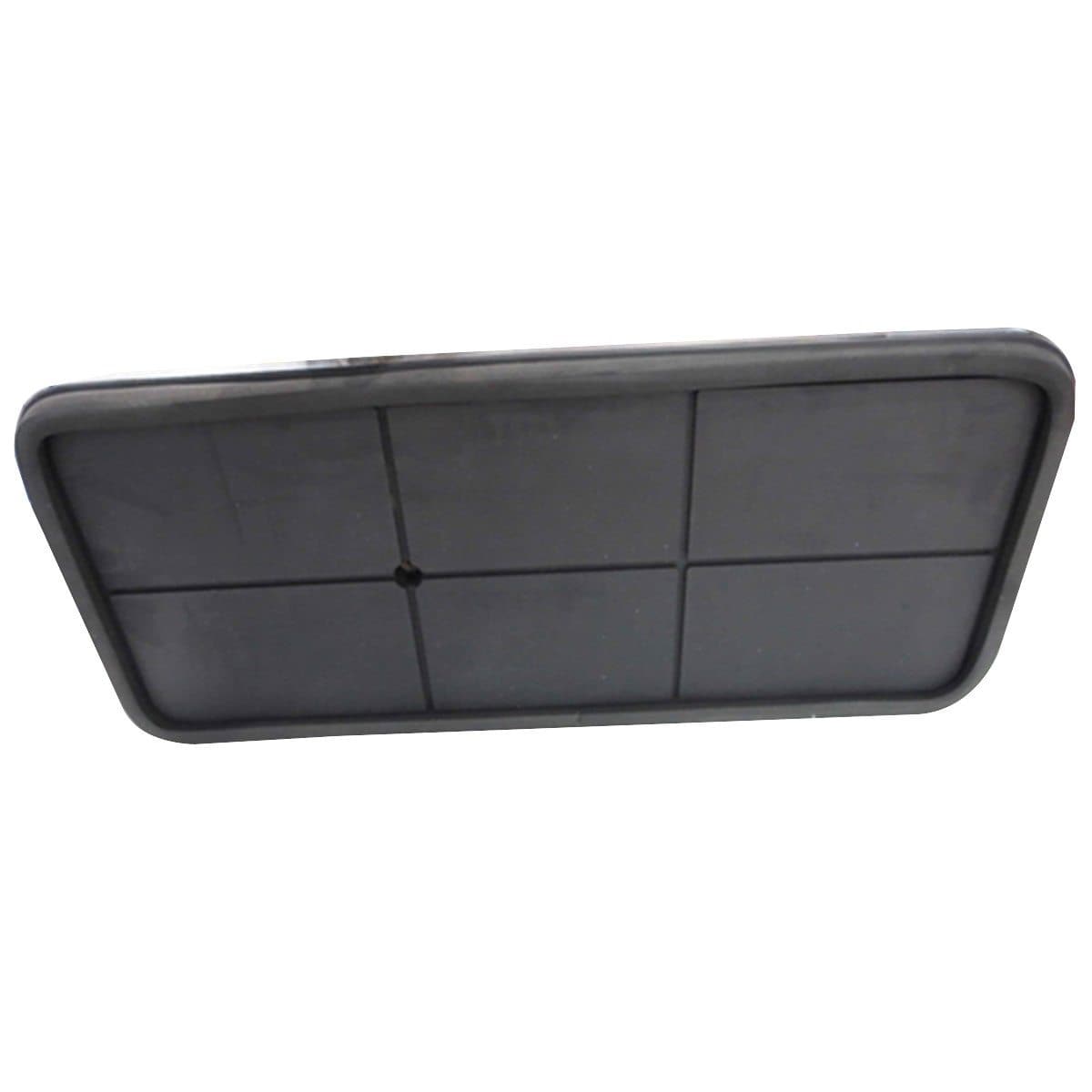

The Weha T800 Pneumatic Vacuum Lifter bottom is designed with the Weha New Generation UNIPAD Vacuum Suction Pad: Simple, extremely fast changing of the vacuum-rubber seals

Universally applicable for polished and for rough upper surfaces!

Maybe be used on granite, marble, all natural stones, engineered stone, glass, metal, etc

Lower servicing costs and maintenance charges since the rubber seals are easily replaceable. Increased safety over other lifters because the UNIPADS create a stronger, tighter vacuum seal.
All parts are easily replaced for years of use.


  • Runs off of a small compressor with a min 2 CFM and 60psi.
  • Load Capacity Horizontal: 1764 lbs
  • Load Capacity Vertical: 882 lbs
  • Suction Plate: 28" x 12"
  • Weight: 73 lbs
